Ingersoll Rand

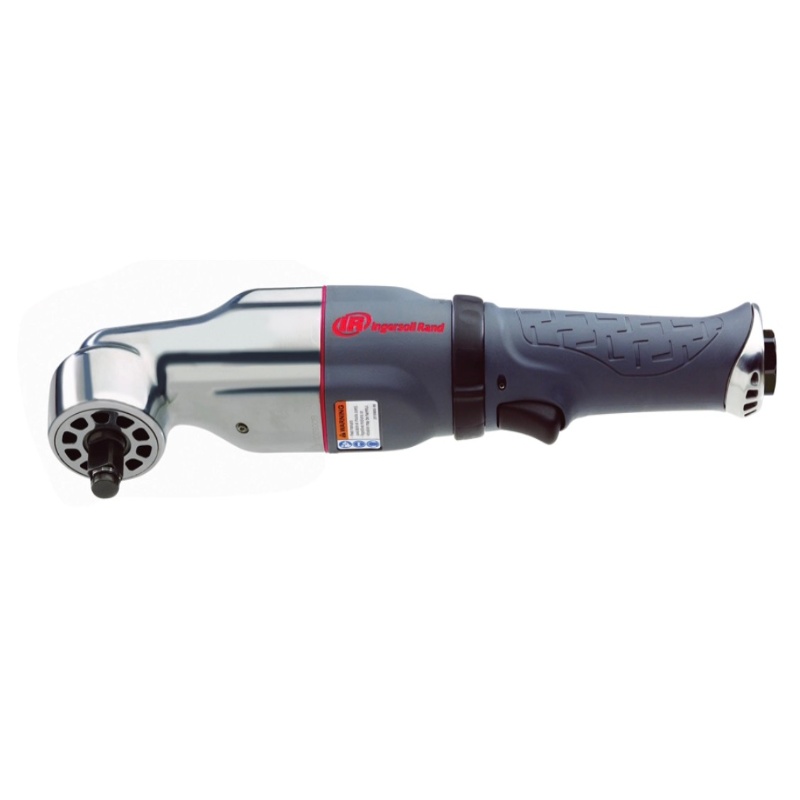

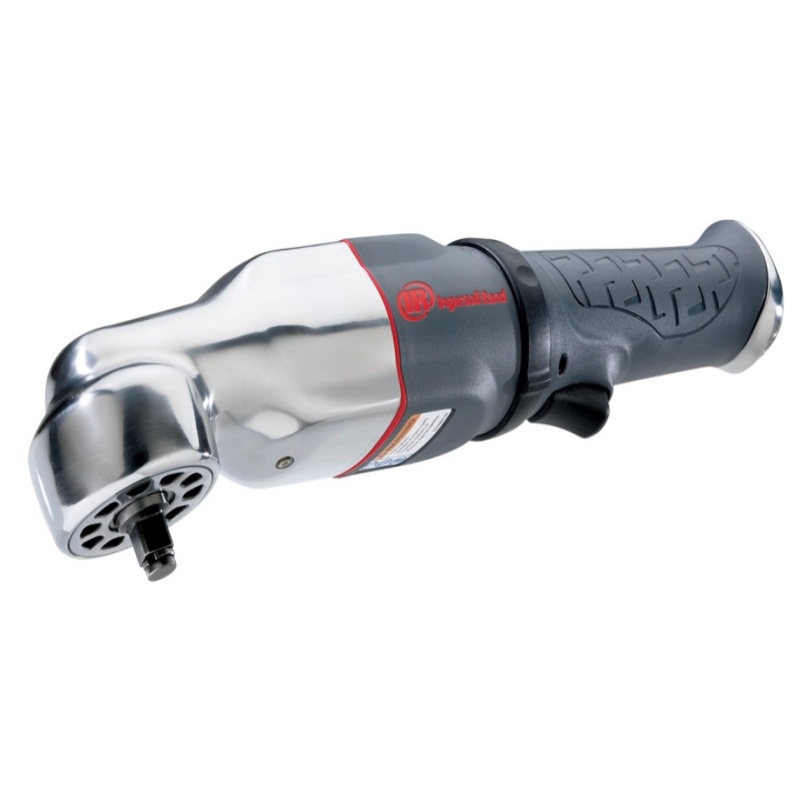

2025MAX Right Angle Air Impact Wrench

This Right Angle Impact Wrench is lightweight, durable, and easy to use. Paired with its powerful vane motor and trigger actuation, this tool will quickly become your favorite on any job site.

Item No :
2025MAX Right Angle Air Impact Wrench
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

This Right Angle Impact Wrench is lightweight, durable, and easy to use. Paired with its powerful vane motor and trigger actuation, this tool will quickly become your favorite on any job site.

Features

Power

With a finely tuned vane motor and power regulation, you’ll have full control of your tool while never having to settle for less power.

Access

Thanks to this wrench’s angle grip and composite housing, you’ll be able to access any hard-to-reach spaces with ease.

Fluctuation

The Right Angle Impact Wrench features a square socket retaining ring anvil, allowing it to switch sockets with ease. Perfect for automotive repair work.

Feather touch trigger, 2-position forward power regulator, forward/reverse ring

Compact design, with a head height under 2 inches, makes operation and access easier in tight spots so you can perform even the most detailed work with this air impact wrench

Ergonomically sound rear exhaust system

Offers the same reach as a ratchet

180 ft-lbs of max torque

Free speed: 7,100 revolutions per minute

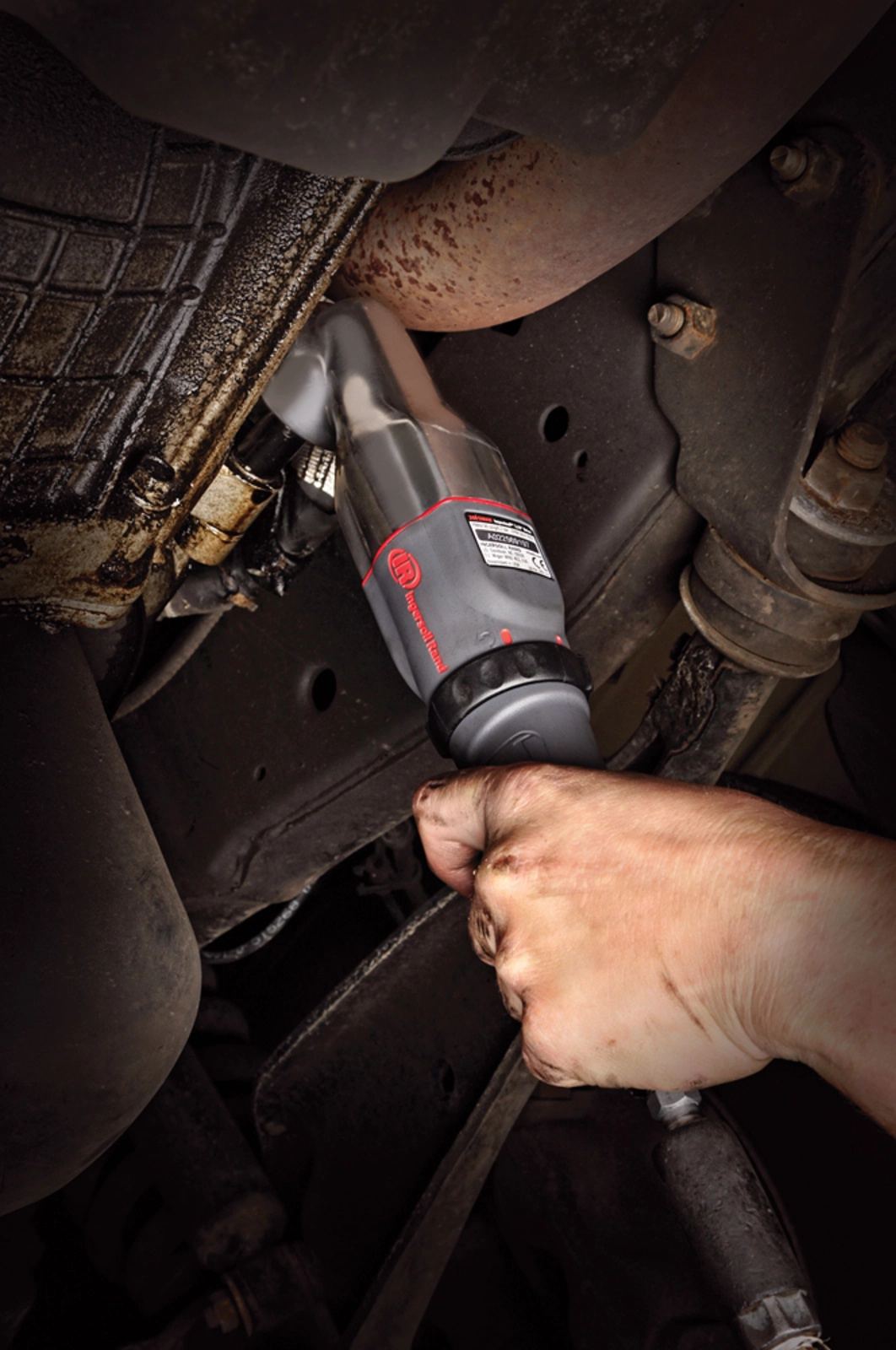

Optimized for the vehicle repair industry, body shops, and MRO

1-year warranty

Model	Configuration	Actuation	Drive Size	Drive Type	Forward Torque ft-lbs (Nm)	Max Reverse Torque ft-lbs (Nm)	Blows Per Minute	Free Speed (RPM)	Impacting Sound Level dB(A) -- ISO15744 (pressure/power)	Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)	Vibration Level m/s2 (K)	Weight lbs (kg)	Length in (mm)	Air Inlet Size	Min Hose Size (in)	Air Consumption @ Load cfm (L/min)	Average Air Consumption cfm (L/min)	PSI	Bar
2015MAX	Right Angle, Low Profile	Trigger	3/8 in.	Square, Hog-Ring at 90 deg.	150 (203)	180 (244)	2100	9000	96.6 / 107.6	94.1 / 105.1	17.4 (3)	3.4 (1.54)	13.1 (333)	1/4 in.	3/8	19 (538)	3.5 (99)	90	6.2
2025MAX	Right Angle, Low Profile	Trigger	1/2 in.	Square, Hog-Ring at 90 deg.	150 (203)	180 (244)	2100	9000	96.6 / 107.6	94.1 / 105.1	17.4 (3)	3.4 (1.54)	13.1 (333)	1/4 in.	3/8	19 (538)	3.5 (99)	90	6.2
