2135QXPA Series 1/2″ Air Impact Wrench
2135QXPA Series 1/2″ Air Impact Wrench

2135QXPA Series 1/2″ Air Impact Wrench

The 2135QXPA Series Impact Wrench was built on the hardworking and respected foundation laid by the 2135QTiMAX. The result is a light, quiet and powerful impact wrench that delivers an incredible level of performance and power at a cost that won’t punish your wallet. The 2135QXPA is the finely tuned and finely crafted impact wrench you need to tackle the toughest jobs.

  • Item No :

    2135QXPA Series 1/2″ Air Impact Wrench
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

The 2135QXPA Series Impact Wrench was built on the hardworking and respected foundation laid by the 2135QTiMAX. The result is a light, quiet and powerful impact wrench that delivers an incredible level of performance and power at a cost that won’t punish your wallet. The 2135QXPA is the finely tuned and finely crafted impact wrench you need to tackle the toughest jobs.

Features

Variety:



With the option of a square socket retaining ring, a square pin or an extended anvil, you can choose the right configuration for your application.

Reliability:



You can expect the same high-impact output every time you use this tool on the job.

Power:



Looking for an impact wrench with a high torque output for any type of maintenance? The 2135QXPA Series is for you.

 Other Features:



Only 1.8 kg

1057 Nm of maximum reverse torque and 1490 Nm of nut busting torque

Reverse-bias 7-vane motor delivers even more torque in reverse

4 positions power regulator helps adjusting power to the application

One hand forward/reverse push button for easy operation

Quiet Tool technology reduces noise level without sacrificing the power



Available in the following kits:



2135QXPA-3SK: kit with 3 insulated sockets (17, 29, 21 mm) in carrying case

2135QXPA-10SK: kit with 10 sockets (10, 11, 12, 13, 14, 17, 19, 21, 22, 24 mm) in carrying case



Model Configuration Actuation Drive Size Drive Type Nut-Busting Torque (ft-lbs) Nut-Busting Torque (Nm) Forward Torque (ft-lbs) Forward Torque (Nm) Max Reverse Torque (ft-lbs) Max Reverse Torque (Nm) Blows per minute Free Speed (RPM) Impacting Sound Level dB(A) -- ISO15744 (pressure/power) Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power) Vibration Level m/s2 (K) Weight (lbs) Weight (kg) Width (in) Width (mm) Height (in) Height (mm) Length (in) Length (mm) Air Inlet Min Hose Size (in) Min Hose Size (mm) Air Consumption @ Load (cfm) Air Consumption @ Load (L/min) Average Air Consumption (cfm) Average Air Consumption (L/min) PSI Bar
2135PQXPA Pistol Trigger 1/2 in. Square, Pin 1100 1490 700 949 780 1057 1250 11000 90.7 / 101.7 86.0 / 97.0 13.3 (4.6) 4 1.8 2.7 70 7.2 183 7.5 190 1/4 in. 3/8 10 N/A N/A 5 142 90 6.2

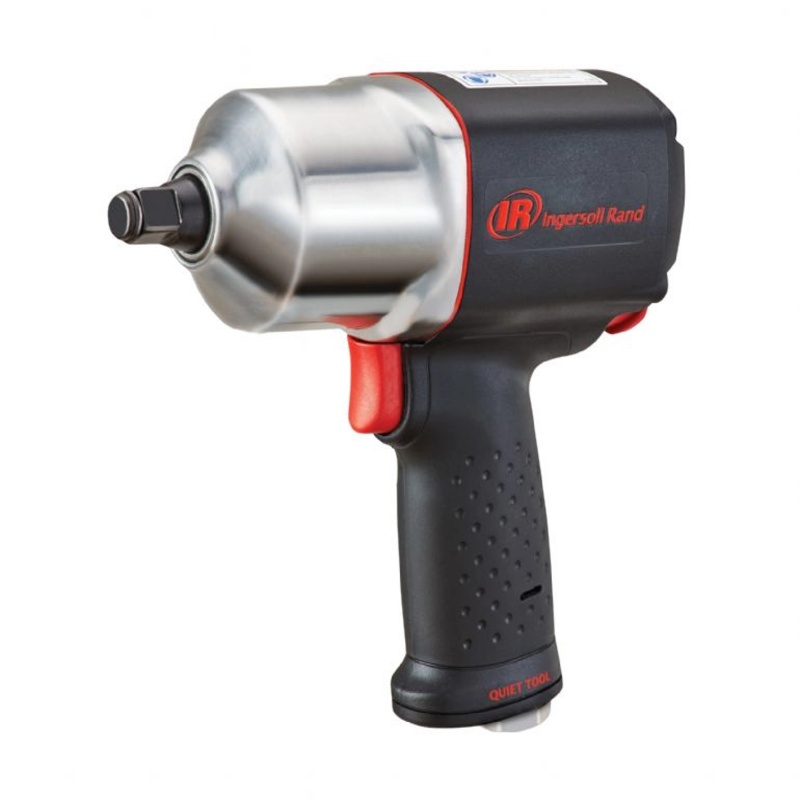

2135QXPA Pistol Trigger 1/2 in. Square, Hog-Ring 1100 1490 700 949 780 1057 1250 11000 90.7 / 101.7 86.0 / 97.0 13.3 (4.6) 4 1.8 2.7 70 7.2 183 7.5 190 1/4 in. 3/8 10 N/A N/A 5 142 90 6.2

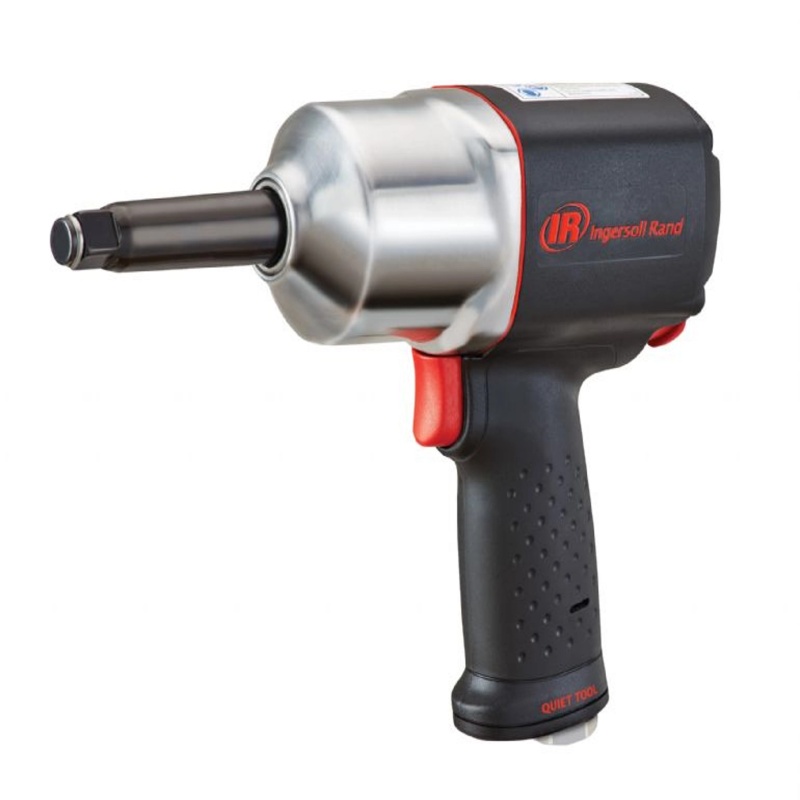

2135QXPA-2 Pistol Trigger 1/2 in. Square, Hog-Ring, 2 in. Ext. 1100 1490 700 949 780 1057 1250 11000 90.7 / 101.7 86.0 / 97.0 9.7 (1.8) 4.3 1.9 2.7 70 7.2 183 9.5 242 1/4 in. 3/8 10 N/A N/A 5 142 90 6.2
