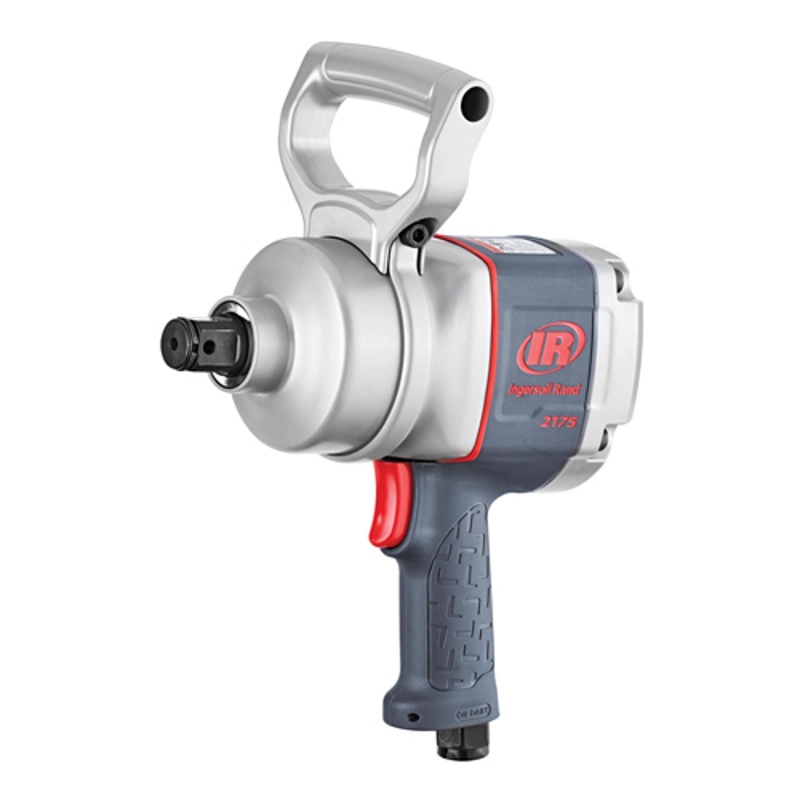

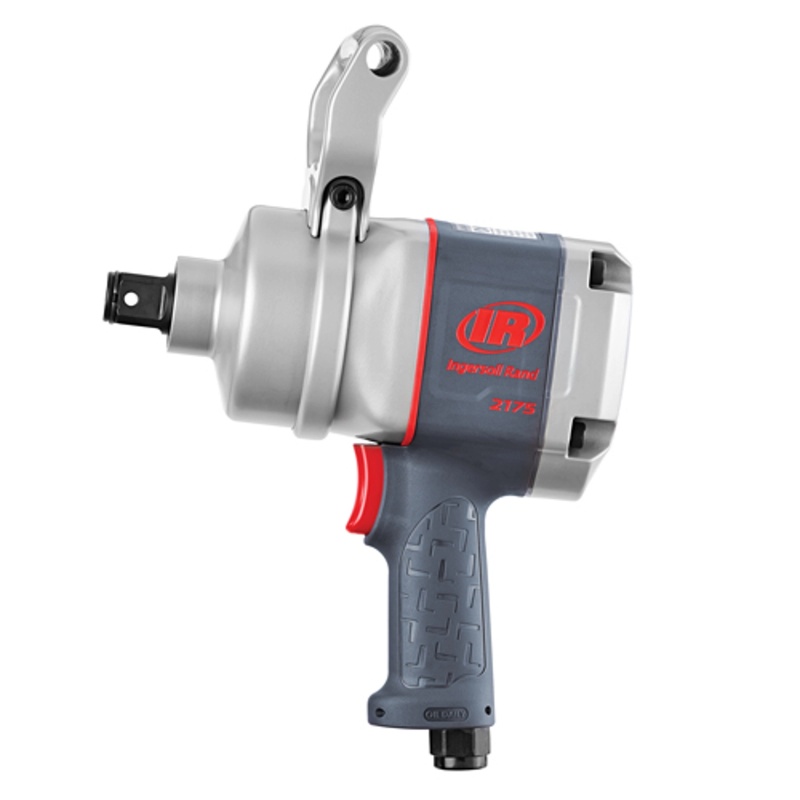

2175MAX 1″ Air Impact Wrench

2175MAX 1″ Air Impact Wrench

The 2175MAX 1Pistol Grip Impact Wrench - engineered to make quick work of big bolting jobs and semi, bus and heavy equipment tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

  • Item No :

    2175MAX 1″ Air Impact Wrench
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

The 2175MAX 1Pistol Grip Impact Wrench - engineered to make quick work of big bolting jobs and semi, bus and heavy equipment tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.



Features

Power:



A solid steel impact mechanism and robust motor deliver extreme torque that lasts for the life of the tool.

Durability:



The steel core and chemical resistant housing are made to last even in the harshest working conditions.

Ergonomics:



The tools lighter weight and adjustable handle design increase maneuverability and comfort.

Other Features:



Solid steel impact mechanism: Deliver 2,000 ft- lbs of torque

Highly engineered design: Delivers the power you need over the life of the tool

Steel core design: Nothings been proven to last longer

Chemical resistant housing & steel core: Stands up to drops and harsh work environments

Lightweight: weighs in under 20 lbs.

360° adjustable handle: The side handle rotates fully around the tool as the job demands

Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage

6anvil extension: Increases accessibility in hard to reach places



Model

Configuration

Actuation

Drive Size

Drive Type

Forward Torque (ft-lbs)

Forward Torque (Nm)

Max Reverse Torque (ft-lbs)

Max Reverse Torque (Nm)

Blows per minute

Free Speed (RPM)

Impacting Sound Level dB(A) -- ISO15744 (pressure/power)

Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)

Vibration Level m/s2 (K)

Weight (lbs)

Weight (kg)

Length (in)

Length (mm)

Air Inlet

Min Hose Size (in)

Min Hose Size (mm)

Air Consumption @ Load (cfm)

Air Consumption @ Load (L/min)

Average Air Consumption (cfm)

Average Air Consumption (L/min)

2175MAX

Pistol

Trigger

1"

Pistol Handle

1900

2580

2000

2715

740

4500

101.5 (112.5)

103.6 (114.6)

11.8 (3.6)

17.97

8.2

10

254

0.5

0.75

19

56.7

1606

14.2

402

2175MAX-6

Pistol

Trigger

1"-6"

Pistol Handle

Extended

1900

2580

2000

2715

740

4500

101.5 (112.5)

103.6 (114.6)

11.2 (3.4)

20.04

9.1

16

406

0.5

0.75

19

56.7

1606

14.2
