The Ingersoll Rand 2236QTiMAX High Visibility Series provides the power you know and trust in vibrant colors:

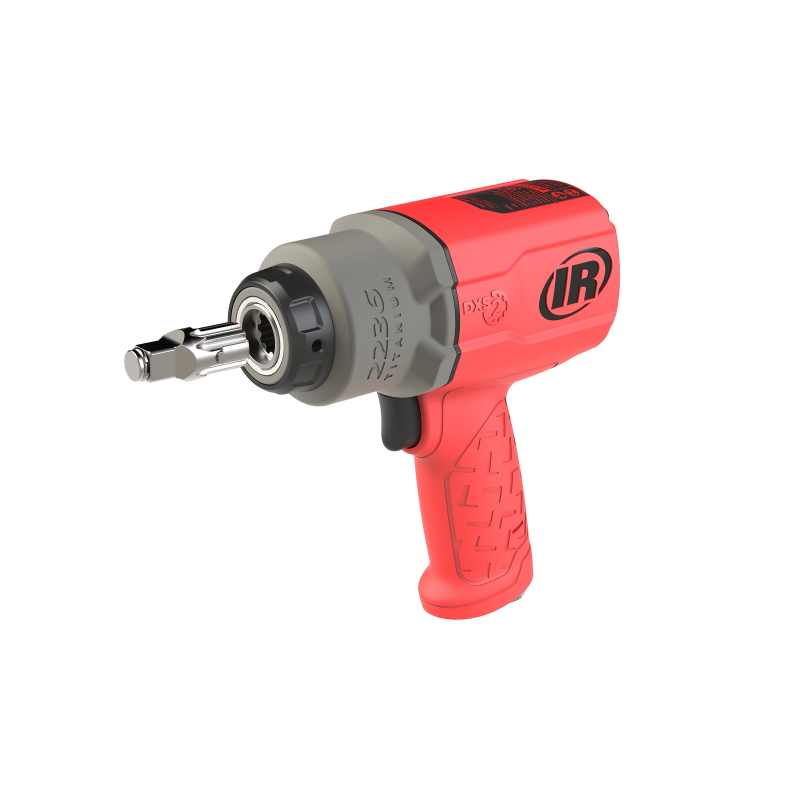

2236QTiMAX-R (red)

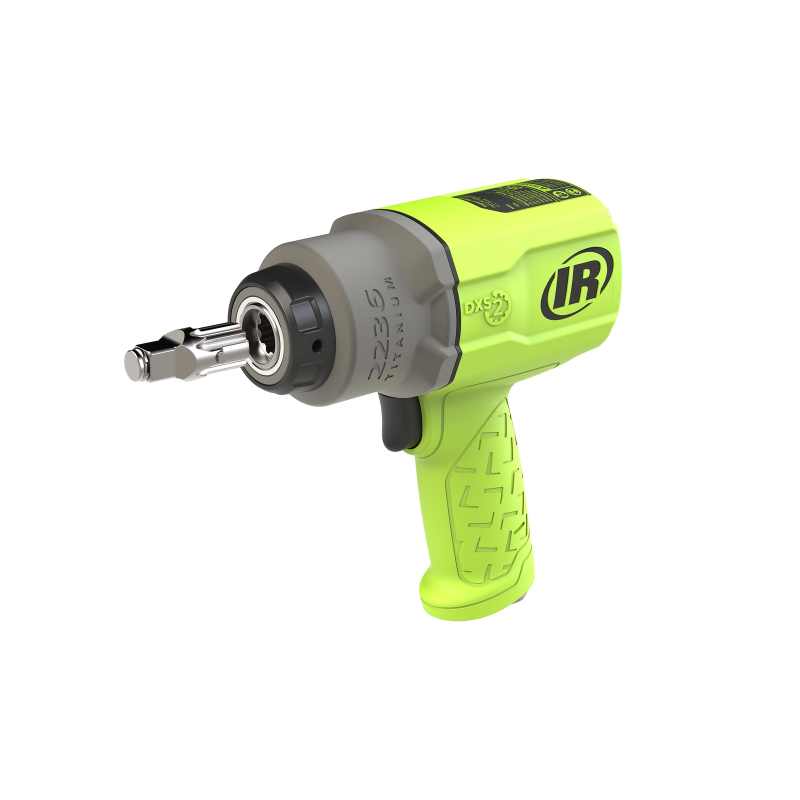

2236QTiMAX-G (green)

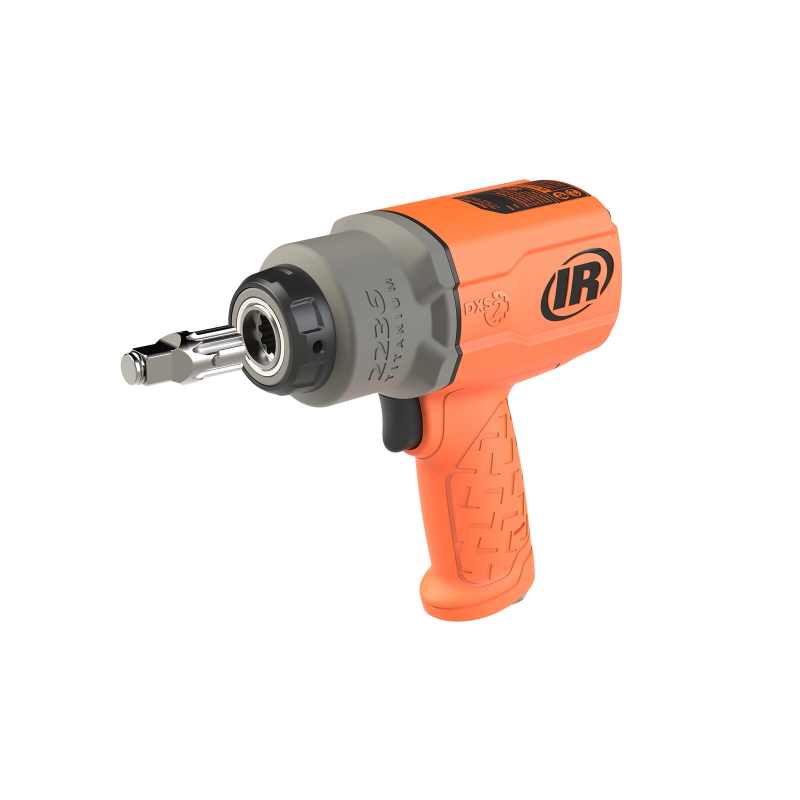

2236QTiMAX-O (orange)

Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years and the performance, durability, and power of the 2236 1/2pneumatic impact is no different. The patented Drive Xchange Systemlets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians.

  • Item No :

    2236 High Visibility Series 1/2″ DXS® Air Impact Wrench
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Green/Red/Orange
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

The Ingersoll Rand 2236QTiMAX High Visibility Series provides the power you know and trust in vibrant colors:



2236QTiMAX-R (red)

2236QTiMAX-G (green)

2236QTiMAX-O (orange)

Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years and the performance, durability, and power of the 2236 1/2pneumatic impact is no different. The patented Drive Xchange Systemlets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians.

Features

Visibility:

The 2236 High Visibility Series impact wrenches allow you to see it on the job and in the garage, while customizing your toolbox.

Patented Drive Xchange System:

Helps you get more versatility, torque, and control out of your impact wrench. With 3/8," 1/2", and 3/4" drive options and 5 different anvil lengths, you can do more work with less equipment.

Powerful Versatility:

Delivers 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.

Patented Direct Greasing System:

Greasing your tool has never been easier. Directly grease the tools hammer for more efficient operation and increased run time.

Reliable Performance:

Stay working, and at peak power by quickly replacing worn or broken anvils.

Ergonomic:

Smaller, lighter and better balanced design under 4.5 lbs. and 7.4" overall length.

Quiet:

4 decibels quieter than the 2235TIMAX for a more user-friendly environment.



Model

Color

Drive Size (in)

Drive Type

Breakaway Torque ft-lbs (Nm)

Impact Per Minute (BPM)

MAX Free Speed (RPM)

Impacting Sound Level dB(a)

Weight lbs (kg)

Length in (mm)

Air Inlet (NPTF/NPT)

Min Hose Size in (mm)

2236QTiMAX-R

Red

1/2

Standard Anvil

1,500 (2,034)

1,350

7,500

94.2

4.4 (1.99)

7.36 (187)

1/4"

3/8 (10)

2236QTiMAX-G

Green

1/2

Standard Anvil

1,500 (2,034)

1,350

7,500

94.2

4.4 (1.99)

7.36 (187)

1/4"

3/8 (10)

2236QTiMAX-O

Orange

1/2

Standard Anvil

1,500 (2,034)

1,350

7,500

94.2

4.4 (1.99)

7.36 (187)

1/4"

3/8 (10)
