Ingersoll Rand

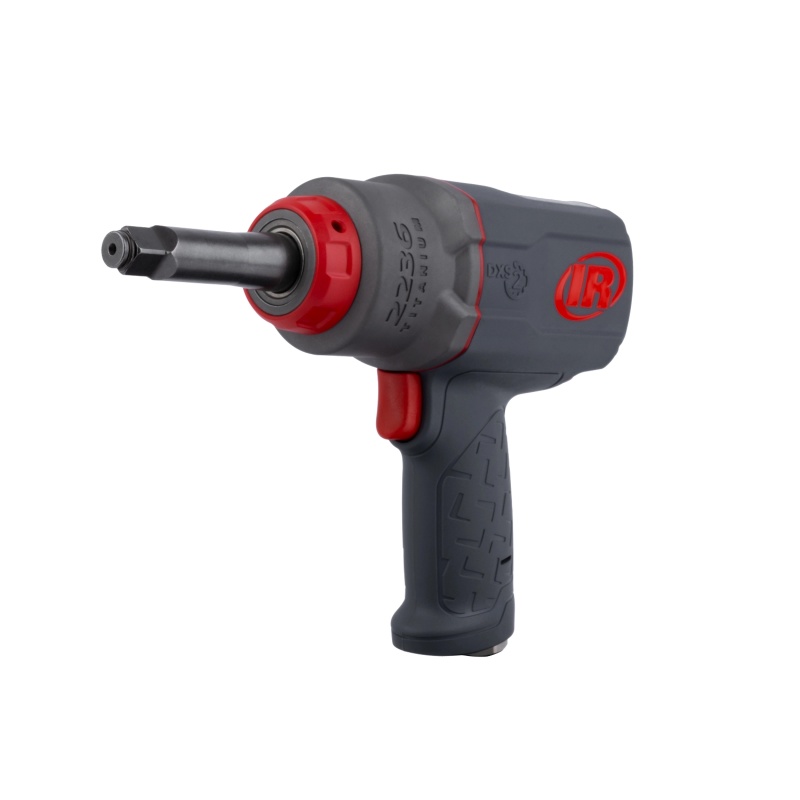

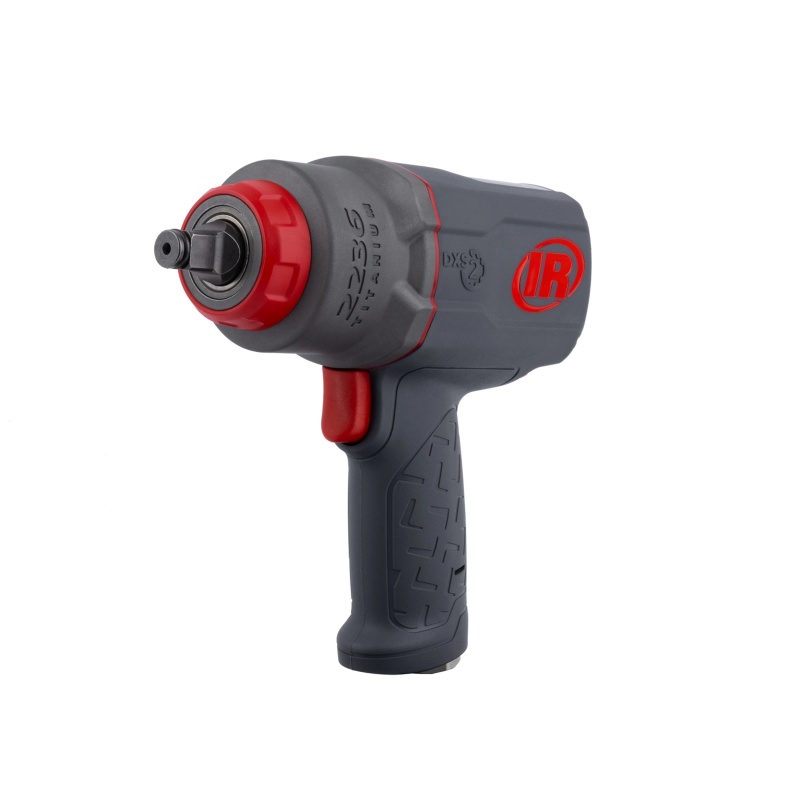

2236QTiMAX Series DXS® 1/2″ Air Impact Wrench

2236QTiMAX Series DXS® 1/2″ Air Impact Wrench

Meet the 2236 ½” pneumatic impact wrench. Our patented Drive Xchange System™ lets you swap out anvils without torque-draining adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians.

Item No :
2236QTiMAX Series DXS® 1/2″ Air Impact Wrench
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
2kg

Inquiry now

Product Details
Model Specifications

Features

VERSATILITY: Versatility meets power in the new Ingersoll Rand 1/2" pneumatic impact wrench. The pending -patented Drive Xchange System™ lets you switch out anvils without clunky adapters that drain your tool’s power.

INNOVATION: With 10 different available drive options including 3/8", 1/2", and 3/4" standard length and five extended lengths from 2 to 10 inches, you can do more work with less equipment.

TORQUE: The 2236 series impact wrench operates powerfully with 1,500 ft-lbs of breakaway torque – 200 more ft-lbs than its predecessor.

DURABLE: Thanks to a patent-pending 2-piece anvil system, you can directly grease the tool’s hammers for increased run time. The iconic titanium hammer case returns in the 2236 series for more unyielding durability.

STRENGTH: A patented-pending increased dwell motor gives the tool more airflow and raw power.

QUIET: A new airflow path design helps make this impact wrench 4 decibels quieter from a patented motor design.

Model	Configuration	Actuation	Drive Size (in)	Drive Type	Breakaway Torque ft-lb (Nm)	Max Reverse Torque ft-lb (Nm)	Blows per Minute	Max Free Speed (RPM)	Impacting Sound Level dB(A) (pressure/power)	Weight lbs (kg)	Length in (mm)	Air Inlet NPT (in)	Min Hose Size in (mm)
2236QTIMAX	Pistol	Trigger	1/2	Square	1500 (2034)	1000 (1356)	1350	7500	94.2	4.4 (1.99)	7.36 (187)	1/4	3/8 (10)
2236QTIMAX-2	Pistol	Trigger	1/2	Square	1500 (2034)	1000 (1356)	1350	7500	94.2	4.6 (2.1)	9.37 (238)	1/4	3/8 (10)
2236QPTIMAX	Pistol	Trigger	1/2	Square	1500 (2034)	1000 (1356)	1350	7500	94.2	4.4 (1.99)	7.36 (187)	1/4	3/8 (10)
