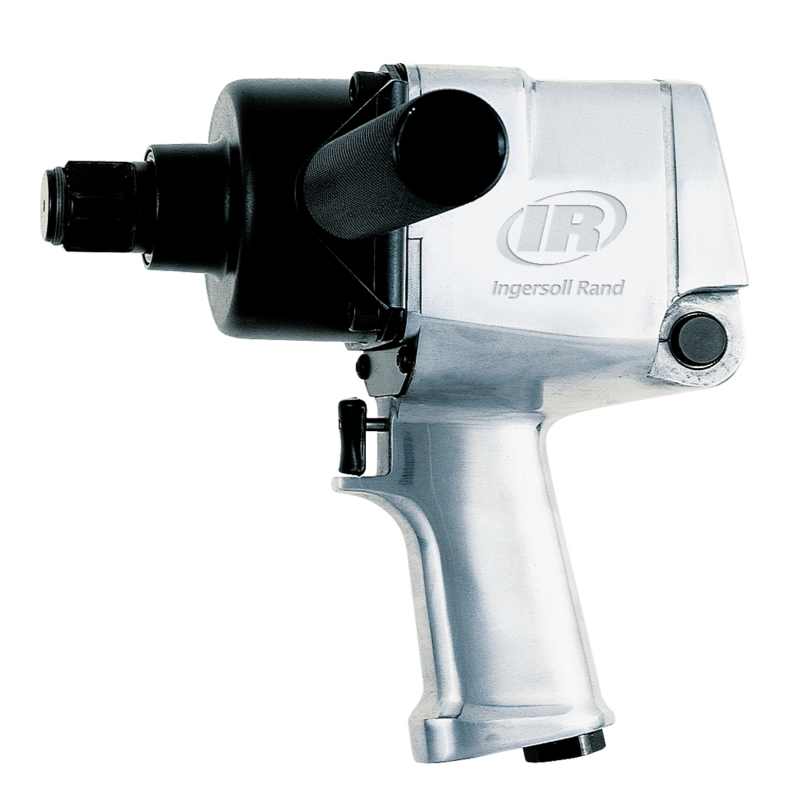

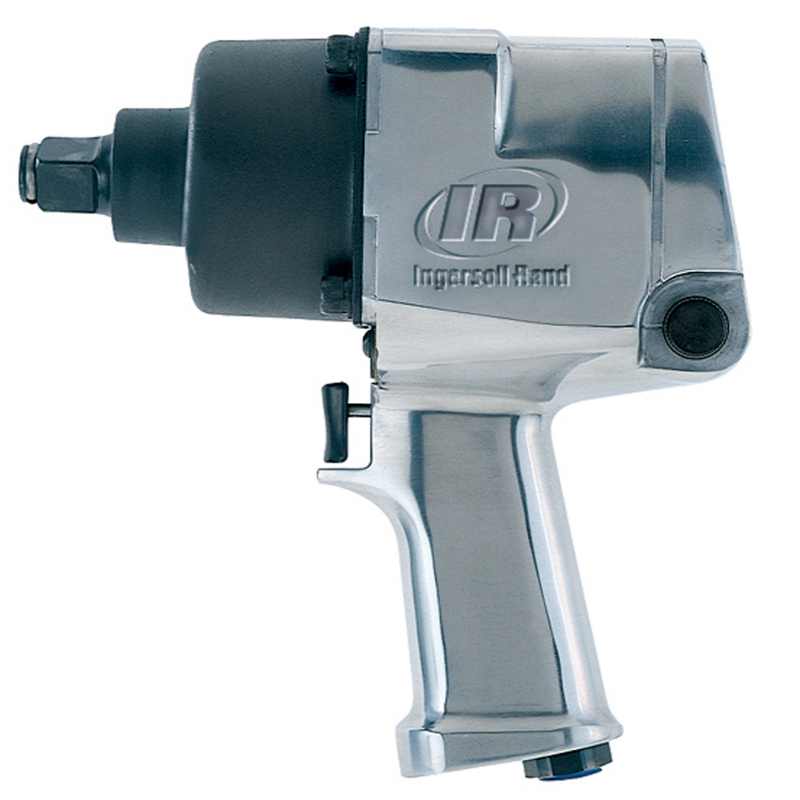

261, 271 Series 3/4″ & 1″ Air Impact Wrench
261, 271 Series 3/4″ & 1″ Air Impact Wrench

261, 271 Series 3/4″ & 1″ Air Impact Wrench

The 261 | 271 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where youll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

  • Item No :

    261, 271 Series 3/4″ & 1″ Air Impact Wrench
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

The 261 | 271 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where youll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features

Reliability:



The 261 | 271 Series is made to last and will be a trusted tool for all your heavy machinery projects and more.

Power:



The vane motor on the 261 | 271 Series provides a high torque output for increased power.

Durability:



The impact wrenchs jumbo hammer provides a great power-to-weight ratio and is easy to maintain.

Vehicle Repair:



The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection.



Model

Configuration

Actuation

Drive Size

Drive Type

Forward Torque (Nm)

Max Reverse Torque (ft-lbs)

Max Reverse Torque (Nm)

Blows per minute

Free Speed (RPM)

Impacting Sound Level dB(A) -- ISO15744 (pressure/power)

Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)

Vibration Level m/s2 (K)

Weight (lbs)

Weight (kg)

Width (in)

Width (mm)

Height (in)

Height (mm)

Length (in)

Length (mm)

Air Inlet

Min Hose Size (in)

Min Hose Size (mm)

Air Consumption @ Load (cfm)

Air Consumption @ Load (L/min)

Average Air Consumption (cfm)

Average Air Consumption (L/min)

PSI

Bar

261

Pistol

Trigger

3/4 in.

Square, Hog-Ring

1491

1200

1627

1000

5500

98.4 / 109.4

100.3 / 111.3

10.4 (1.3)

12.4

5.62

4.7

119.4

10.3

261.6

8.8

224

3/8 in.

1/2

13

38

1076

9.5

269

90

6.2

261-3

Pistol

Trigger

3/4 in.

Square, Hog-Ring, 3 in. Ext

1491

1200

1627

1000

5500

98.4 / 109.4

100.3 / 111.3

10.4 (1.3)

13

5.9

4.7

119

10.3

262

11.8

300

3/8 in.

1/2

13

38

1076

9.5

269

90

6.2

261-6

Pistol

Trigger

3/4 in.

Square, Hog-Ring, 6 in. Ext

1491

1200

1627

1000

5500

98.4 / 109.4

100.3 / 111.3

10.4 (1.3)

13.7

6.21

4.7

119

10.3

262

14.8

376

3/8 in.

1/2

13

38

1076

9.5

269

90

6.2

271

Pistol

Trigger

1 in.

Square, Hog-Ring

1491

1200

1627

1000

5500

98.5 / 109.5

100.5 / 111.5

13.2 (1.1)

12.5

5.67

8

203.2

8

203.2

8.9

226

3/8 in.

1/2

13

39

1104

9.5

269

90

6.2
