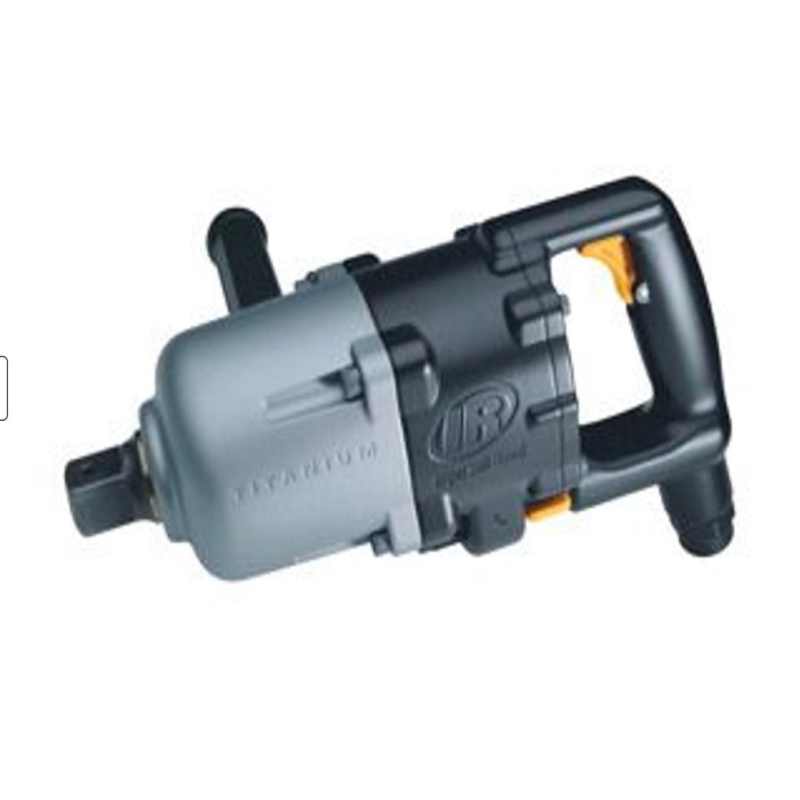

3900 Series Air Impact Wrench

3900 Series Air Impact Wrench

With titanium hammercase, bronze end plates and torque up to 5,000 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

  • Item No :

    3900 Series Air Impact Wrench
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

With titanium hammercase, bronze end plates and torque up to 5,000 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features

Bronze End-Plate:



Thanks to the bronze end-plate and a corrosion preventative treatment, this series is corrosion and wear resistant, which makes it great for outdoor conditions.

Durability:



With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.

Power:



The 3900 Series delivers a high torque output, making every job a breeze.

Variety:



With multiple anvil sizes available, you'll be able to find a tool that is right for your application.

Other Features:



Twin hammer mechanism ensure consistent power and balance

Reverse bias motor to help remove the most stubborn bolts

Pressure-fed mechanism lubrication ensures complete coverage throughout the tool

½” NPT inlet

Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Integral muffler

1-year warranty



Model Configuration Actuation Drive Size Drive Type Forward Torque (ft-lbs) Forward Torque (Nm) Max Reverse Torque (ft-lbs) Max Reverse Torque (Nm) Blows per minute Free Speed (RPM) Impacting Sound Level dB(A) -- ISO15744 (pressure/power) Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power) Vibration Level m/s2 (K) Weight (lbs) Weight (kg) Length (in) Length (mm) Air Inlet Min Hose Size (in) Min Hose Size (mm) Air Consumption @ Load (cfm) Air Consumption @ Load (L/min) Average Air Consumption (cfm) Average Air Consumption (L/min) PSI Bar
3940A1Ti D-Handle Outside Trigger No. 5 Spline, Thru-Hole 1650 2240 2500 3390 800 6000 100.6 / 111.6 103.4 / 114.4 13.1 (1.6) 21.2 9.6 13.5 343 1/2 in. 3/4 19 N/A N/A 64 1812 90 6.2
3940A2Ti D-Handle Outside Trigger 1 in. Square, Thru-Hole 1650 2240 2500 3390 800 6000 100.6 / 111.6 103.4 / 114.4 13.1 (1.6) 21.2 9.6 13.5 343 1/2 in. 3/4 19 N/A N/A 64 1812 90 6.2
3940B1Ti D-Handle Inside Trigger No. 5 Spline, Thru-Hole 1650 2240 2500 3390 800 6000 100.6 / 111.6 103.4 / 114.4 13.1 (1.6) 21.2 9.6 13.5 343 1/2 in. 3/4 19 N/A N/A 64 1812 90 6.2
3940B2Ti D-Handle Inside Trigger 1 in. Square, Thru-Hole 1650 2240 2500 3390 800 6000 100.6 / 111.6 103.4 / 114.4 13.1 (1.6) 21.2 9.6 13.5 343 1/2 in. 3/4 19 N/A N/A 64 1812 90 6.2
3940P2Ti Pistol Trigger 1 in. Square, Thru-Hole 1650 2240 2500 3390 800 5300 97.8 / 108.8 95.2 / 106.2 14.2 (2) 20.4 9.3 10.1 256 1/2 in. 3/4 19 N/A N/A 64 1812 90 6.2
3942A1Ti D-Handle Outside Trigger No. 5 Spline, Thru-Hole 1950 2644 3253 4406 850 5000 99.0 / 110.0 102.7 / 113.7 16.9 (4.6) 22.6 10.5 14.3 362 1/2 in. 3/4 19 N/A N/A 95 2690 90 6.2
3942A2Ti D-Handle Outside Trigger 1 in. Square, Thru-Hole 1950 2644 3251 4406 850 5000 99.0 / 110.0 102.7 / 113.7 16.9 (4.6) 22.6 10.5 14.3 362 1/2 in. 3/4 19 N/A N/A 95 2690 90 6.2
3942B1Ti D-Handle Inside Trigger No. 5 Spline, Thru-Hole 1950 2644 3252 4406 850 5000 99.0 / 110.0 102.7 / 113.7 16.9 (4.6) 22.6 10.5 14.3 362 1/2 in. 3/4 19 N/A N/A 95 2690 90 6.2
3942B2Ti D-Handle Inside Trigger 1 in. Square, Thru-Hole 1950 2644 3250 4406 850 5000 99.0 / 110.0 102.7 / 113.7 16.9 (4.6) 22.6 10.5 14.3 362 1/2 in. 3/4 19 N/A N/A 95 2690 90 6.2
3955A2Ti D-Handle Outside Trigger 1-1/2 in. Square, Thru-Hole 3900 5288 5000 6779 700 2750 101.2 / 112.2 101.5 / 112.5 20.8 (8.5) 34.6 15.7 16.5 419.1 1/2 in. 3/4 19 N/A N/A 80 2266 90 6.2
3955B1Ti D-Handle Inside Trigger No. 5 Spline, Thru-Hole 3900 5288 5000 6779 700 2750 101.2 / 112.2 101.5 / 112.5 20.8 (8.5) 34.6 15.7 16.5 419.1 1/2 in. 3/4 19 N/A N/A 80 2266 90 6.2
3955B2Ti D-Handle Inside Trigger 1-1/2 in. Square, Thru-Hole 3900 5288 5000 6779 700 2750 101.2 / 112.2 101.5 / 112.5 20.8 (8.5) 34.6 15.7 16.5 419.1 1/2 in. 3/4 19 N/A N/A 80 2266 90 6.2
