Ingersoll Rand

Electric Assembly QE Series meeting your critical fastening requirements

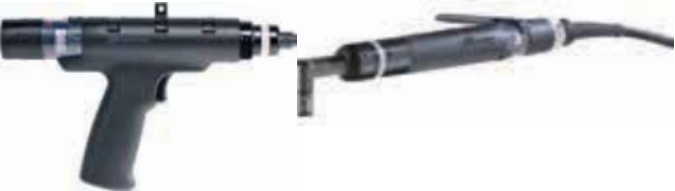

QE Fixtured Series

Compact, lightweight and high-speed, the QE Fixtured Angle wrenches provide superior accuracy and durability to meet your fastening requirements. They are easily mountable to a fixture or reaction arm, and have a torque range from 0.3 Nm to 400 Nm.

Item No :
Electric Assembly QE Series
Order(MOQ) :
1 pc
Payment :
T/T
Product Origin :
China
Color :
black
Shipping Port :
Xiamen
Lead Time :
15 days

Inquiry now

Product Details
Model Specifications

Electric Assembly QE Series

The ultimate world-class combination — QE Series tools and INSIGHTqc controllers — team up to make meeting your critical fastening requirements simple. Offering flexibility, these durable, ergonomically designed tools are easy to use — no experience needed.

Features

Torque range：0.3-400 Nm

Speeds: Adjustable to 1382 rpm

Integrated Handle Switch Pistol, push-to-start, straight, and angle

Hexagon socket quick change, and square head

Easy to use push-button reverse and indicator light options

Model

Torque Range (Nm)

Torque Range (in-lbs)

Torque Range (ft-lbs)

Max Torque (Nm)

Actuation

Configuration

Free Speed (rpm)

Spindle Length (mm)

Float (mm)

Overall Length (mm)

Length (in)

Weight (kg)

Weight (lbs)

Drive (size/style)

QE4AC013BA2S06

2.6 - 10.4

23.0 - 92.1

1.9-7.7

Controller Remote Start

Angle

1200

N/A

383

15.078740157480317

1.3

2.87

3/8 in. Square

QE4AC020BA2S06

4.0 - 16.0

35.4 - 141.61

3.0 - 11.8

Controller Remote Start

Angle

820

N/A

383

15.078740157480317

1.3

2.87

3/8 in. square

QE4AC027BA4S06

5.4 - 21.6

47.8 - 191.2

4.0 - 15.9

Controller Remote Start

Angle

600

N/A

387

15.236220472440946

1.3

2.87

3/8 in. square

QE4AC034BA4S06

6.8 - 27.2

60.2 - 240.7

5.0 - 20.1

Controller Remote Start

Angle

470

N/A

387

15.236220472440946

1.3

2.87

3/8 in. square

QE6AC030FA4S06

6.0 - 24.0

53.1 - 212.4

4.4 - 17.7

Controller Remote Start

Angle

1230

N/A

429.4

16.905511811023622

1.9

4.19

3/8 in. square

QE6AC040FA4S06

8.0 - 32.0

70.8 - 283.2

5.9 - 23.6

Controller Remote Start

Angle

910

N/A

429.4

16.905511811023622

1.9

4.19

3/8 in. square

QE6AC055FA5S08

11.0 - 44.0

97.4 - 389.4

8.1 - 32.5

Controller Remote Start

Angle

650

N/A

431.3

16.980314960629922

1.9

4.19

1/2 in. Square

QE6AC080FA5S08

16.0 - 64.0

141.6-566.4

11.8 - 47.2

Controller Remote Start

Angle

440

N/A

431.3

16.980314960629922

1.9

4.19

1/2 in. Square

QE8AC065FA6S08

13.0 - 52.0

115.1 - 460.2

9.6 - 38.4

Controller Remote Start

Angle

1200

N/A

520

20.472440944881892

2.9

6.39

1/2 in. Square

QE8AC070FA6S08

14.0 - 56.0

123.9 - 495.6

10.3 - 41.3

Controller Remote Start

Angle

1100

N/A

520

20.472440944881892

2.9

6.39

1/2 in. Square

QE8AC090FA6S08

18.0 - 72.0

159.3-637.3

13.3 - 53.1

Controller Remote Start

Angle

850

N/A

520

20.472440944881892

2.9

6.39

1/2 in. Square
