Ingersoll Rand

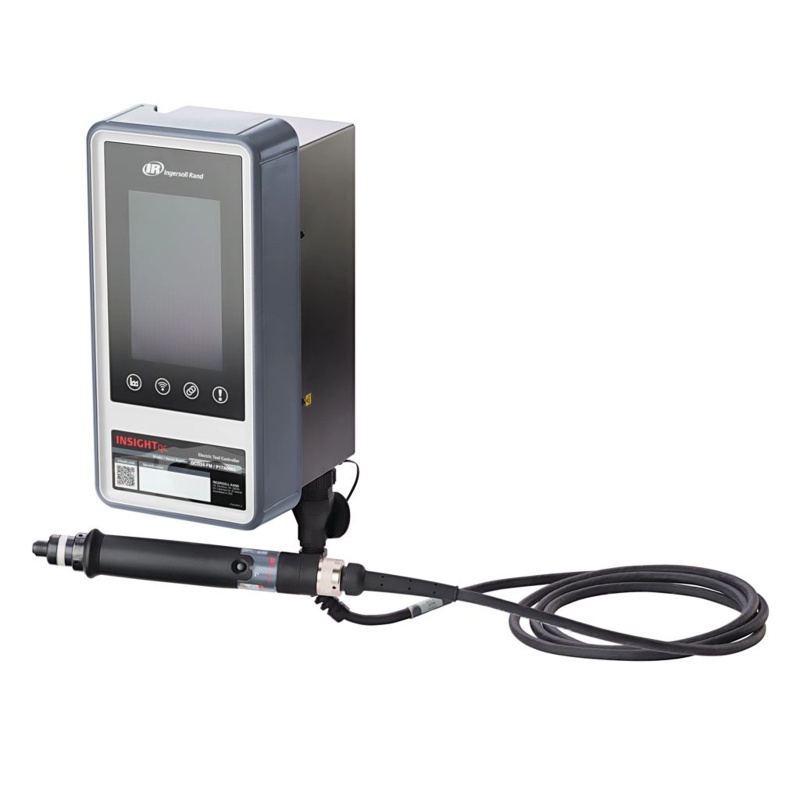

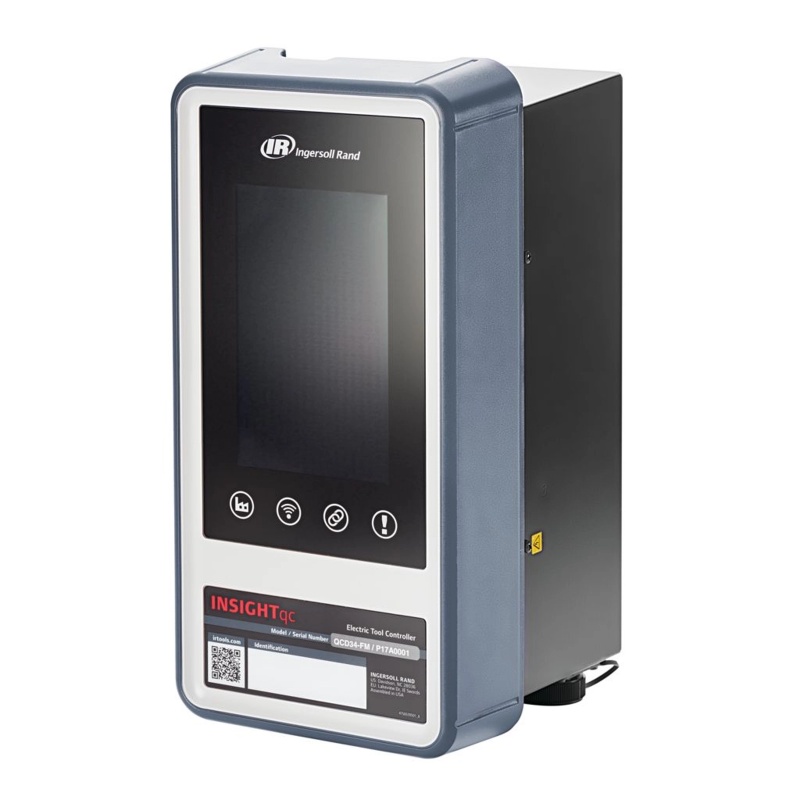

INSIGHTqc™ Controller for Corded Tools

When trying to achieve simple manufacturing goals in a complex manufacturing world, we believe that taking control of and understanding the fastening process doesn’t have to be complicated.

The Ingersoll Rand® INSIGHTqc™ is different, by design. The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time.

The web-based software eliminates device dependencies and enables full programming capability with any device that can run an Internet browser, including smart phones, tablets or computers. The INSIGHTqc is easy to integrate with the manufacturing line, provides integrated logic controls for flexible control and helps reduce line rebalancing costs through a simple and intuitive user interface. Bottom line, the INSIGHTqc controller is a simply insightful solution.

Item No :
INSIGHTqc™ Controller for Corded Tools
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

When trying to achieve simple manufacturing goals in a complex manufacturing world, we believe that taking control of and understanding the fastening process doesn’t have to be complicated.

Features

Simple:

Intuitive visual programming interface

Plug & Play Accessories and Protocols

Backwards Compatibility

Integrated Backup & Recovery

Bundled Controller Options

Context Specific Integrated HELP

Flexible:

Web Based Programming- use any operating system via any browser

Meets current industry communication needs

Adjustable to meet any tightening control requirements

Integrated logic controls

Easy hardware and software upgrades

Capable:

Touch Screen Interface

Industry leading cycle data storage

Robust audit and system logs

Advanced tightening strategies and features

Onboard diagnostics

Integrated statistical process controls

Preventative maintenance alarms

Configurable email alerts

Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.

Model	Series	Display	Power	Hardware	Ethernet I/P	ProfiNET	ProfiBUS	DeviceNET	IR Ethernet EOR	Atlas Copco Open Protocol	ToolsNet	VW XML 2.1	Nissan Serial EOR
	SYSTEM OPTIONS	SYSTEM OPTIONS	SYSTEM OPTIONS	SYSTEM OPTIONS	FIELDBUS OPTIONS	FIELDBUS OPTIONS	FIELDBUS OPTIONS	FIELDBUS OPTIONS	MES OPTIONS	MES OPTIONS	MES OPTIONS	MES OPTIONS	MES OPTIONS
QCD11	QC	Display	120V AC	Standard					x
QCD11-F	QC	Display	120V AC	Standard	x	x			x
QCD11-M	QC	Display	120V AC	Standard					x	x	x	x	x
QCD11-FM	QC	Display	120V AC	Standard	x	x			x	x	x	x	x
QCD12-F	QC	Display	120V AC	Standard plus Profibus Card	x	x	x		x
QCD12-FM	QC	Display	120V AC	Standard plus Profibus Card	x	x	x		x	x	x	x	x
QCD13-F	QC	Display	120V AC	Standard plus DeviceNet Card	x	x		x	x
QCD13-FM	QC	Display	120V AC	Standard plus DeviceNet Card	x	x		x	x	x	x	x	x
QCD21	QC	Display	230V AC	Standard					x
QCD21-F	QC	Display	230V AC	Standard	x	x			x
QCD21-M	QC	Display	230V AC	Standard					x	x	x	x	x
QCD21-FM	QC	Display	230V AC	Standard	x	x			x	x	x	x	x
QCD22-F	QC	Display	230V AC	Standard plus ProfiNet Card	x	x	x		x
QCD22-FM	QC	Display	230V AC	Standard plus ProfiNet Card	x	x	x		x	x	x	x	x
QCD23-F	QC	Display	230V AC	Standard plus DeviceNet Card	x	x		x	x
QCD23-FM	QC	Display	230V AC	Standard plus DeviceNet Card	x	x		x	x	x	x	x	x
