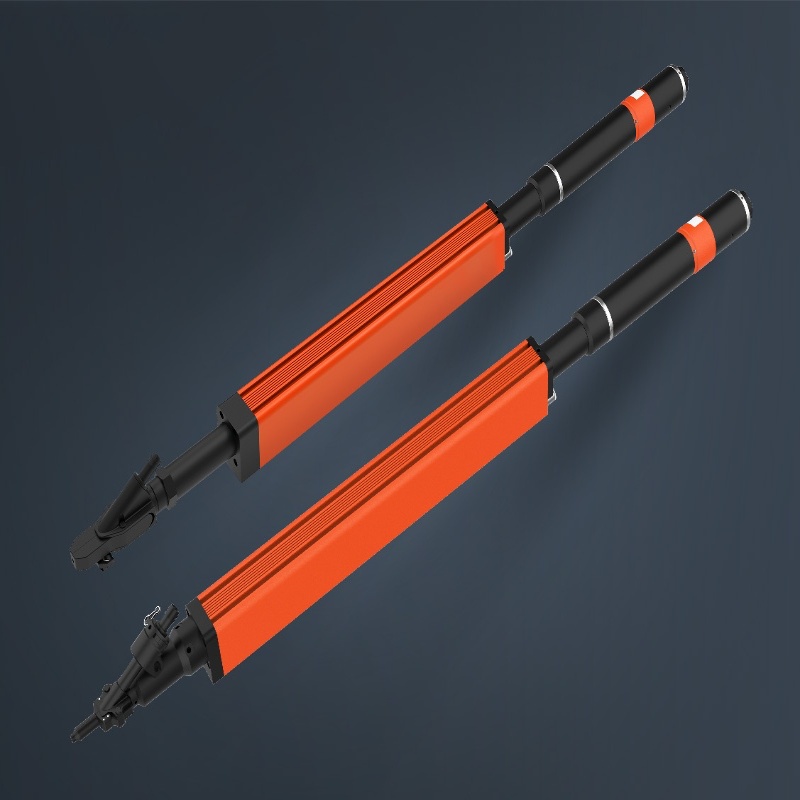

Integrated Tightening Module Series Torque Range：0.6~15Nm

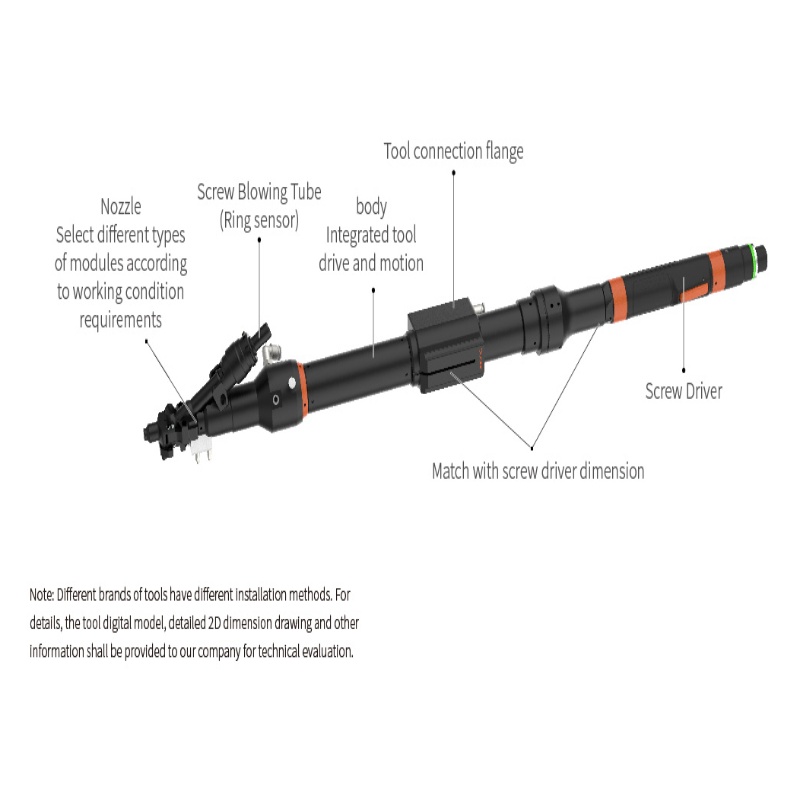

The Integrated Tightening Module Series can be used in conjunction with a three-axis module, collaborative robot, or industrial robot to achieve fully automatic screw tightening. This is done by automatically blowing the screws to the gun head or receiving table through the nail feeding machine. Structural integration ►The structure is compact,the gas-electricity layout is simple, and the field space is saved; ►Applicable to complex working conditions; ►More lightweight (reduced by 20-30%), applicable to 5Kg robot; Collaborative high quality ►With patented design and special structure, the screw suction tube can stop at the screw pick position for screw suction; ►The clamping block opens actively and has no impact abrasion with the screw suction pipe, so the service life is prolonged; More convenient to use ►The replacement of the bit is convenient, the bit can be quickly replaced when the cylinder stretched out; ►Through the pressure regulating valve on the air circuit, the pressure can be flexibly adjusted when tightening; Safer handling ►Product safety, suitable for man-machine cooperation;
