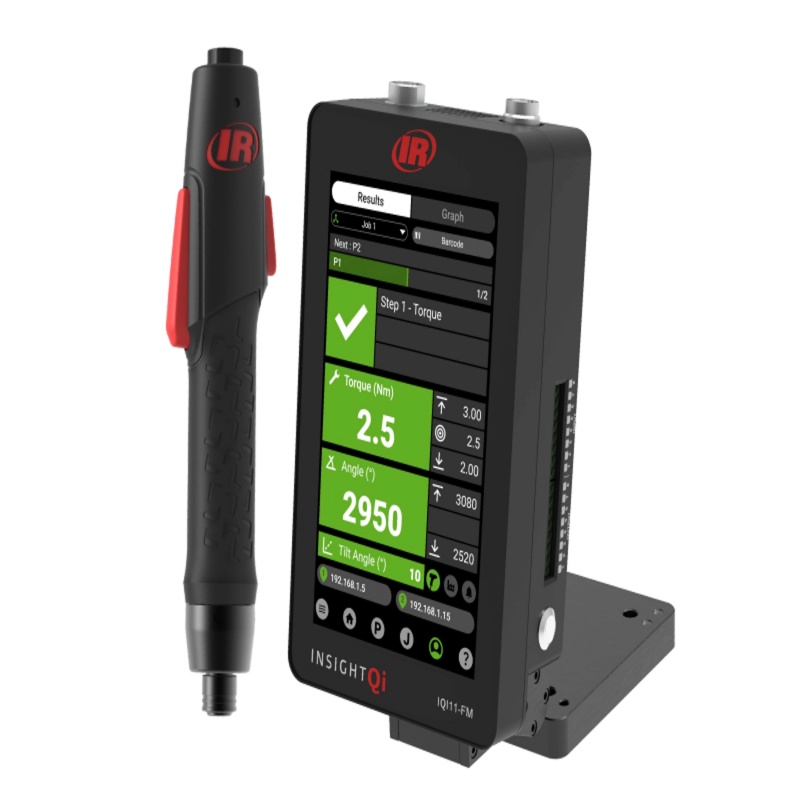

IQi Series, Transducerized Low-Torque Electric Screwdriver

IQi Series, Transducerized Low-Torque Electric Screwdriver

The iQi Series Transducerized Screwdriver is an intelligent fastening solution that combines advanced technology, precision engineering, and intuitive design. For industries where precision, compliance, and defect prevention are non-negotiable, Transducerized screwdrivers provide real-time torque feedback and advanced error-proofing. These tools measure actual torque applied, ensuring every fastener is secured correctly. Engineered for the most demanding production environments, including quality-critical applications, the low-torque precision electric screwdriver delivers unmatched efficiency, precision, and reliability, empowering manufacturing operations to elevate performance and productivity on the assembly line.

  • Item No :

    IQi Series, Transducerized Low-Torque Electric Screwdriver
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

The iQi Series Transducerized Screwdriver is an intelligent fastening solution that combines advanced technology, precision engineering, and intuitive design. For industries where precision, compliance, and defect prevention are non-negotiable, Transducerized screwdrivers provide real-time torque feedback and advanced error-proofing. These tools measure actual torque applied, ensuring every fastener is secured correctly. Engineered for the most demanding production environments, including quality-critical applications, the low-torque precision electric screwdriver delivers unmatched efficiency, precision, and reliability, empowering manufacturing operations to elevate performance and productivity on the assembly line.

Features

Increase Efficiency



Reduce setup time up to 50% by reducing costly workflow interruptions with an intuitive web-based interface that eliminates the need for manual controller adjustments. Rapid deployment ensures seamless operational readiness.



Seamless MES and Fieldbus integration automates tool and job selection, reducing manual errors and improving uptime. Operators can focus on high-value tasks for increased efficiency.



Maximize Productivity



With real-time traceability, live access to production data enhances continuous quality control, enabling quick issue identification and resolution to improve productivity and compliance.



Program, troubleshoot, and monitor systems remotely. Real-time adjustments from anywhere reduce the on-site presence and operational costs while enhancing scalability for production teams.



Improve Quality



Achieve fastening precision with ±3.5% accuracy to minimize assembly errors and significantly lower rework costs with precise torque and angle control, ensuring consistent, high-quality results.



Improve assembly quality with the industry-leading tilt angle control that ensures precise tool alignment, prevents cross-threading, and maintains optimal joint integrity.



Reduce Total Cost of Ownership



Designed to withstand over 1 million maintenance-free cycles, reducing maintenance frequency and downtime for long-term operational efficiency.



The robust design and durable brushless motors extend tool lifespan, minimizing replacement needs and lowering total cost of ownership.



Tool Design



Ergonomic Grip:Optimized for operator comfort during prolonged use, with a >34mm grip on tools below 2.5Nm.



Advanced Torque and Angle Control:Advanced torque, angle, and seat control help operators detect and prevent tightening errors in real-time, reducing time-consuming rework and quality costs.



Accuracy: Boost precision with ±3.5% accuracy to minimize assembly errors and significantly lower rework costs.



Exclusive Tilt Angle Control: The first configurable tilt angle control in the industry eliminates cross threading, maintains optimal alignment, and delivers consistent fastening results, bringing nonstop accuracy and precision to the assembly floor.



ESD-Safe Construction:a single solution for all assembly needs. ESD-safe assembly tools provide added protection across all applications and are ideal for electronic assembly operations.



360-degree Status Beam Light: The multi-color 360º status beam LED ring light illuminates the work area and offers clear feedback to the user on the cycle so operators can work smarter across the assembly floor.  



Durability: The tool is designed for over 1 million maintenance-free cycles.



Two Configurations: More options mean more control, precision, and efficiency. Transducerized tools are available in push-to-start, or trigger-start configurations with torque ranges from 0.2Nm to 15Nm. Configure up to 32 Psets and 64 Jobs on a single tool.  



Model Number Power Supply Actuation Type Torque (Nm) Torque (in-lbs) Speed (rpm) Weight (g) Weight (lbs) Drive Type Length (mm) Length (in) Side to Centre Distance (mm) Side to Centre Distance (in)
IQI2LT0017TQ4 IQI-PS-1 Lever Start 0.02-0.17 0.17-1.5 50-1500 460 1.01 1/4" QC 243 9.57 25.5 1.0
IQI2LT0017TM4 IQI-PS-1 Lever Start 0.02-0.17 0.17-1.5 50-1500 460 1.01 Half Moon 243 9.57 25.5 1.0
IQI2LT0050TQ4 IQI-PS-1 Lever Start 0.1-0.5 0.88-4.4 20-1000 460 1.01 1/4" QC 243 9.57 25.5 1.0
IQI2LT0100TQ4 IQI-PS-1 Lever Start 0.2-1 1.8-8.8 20-1000 460 1.01 1/4" QC 243 9.57 25.5 1.0
IQI2LT0200TQ4 IQI-PS-1 Lever Start 0.4-2 3.5-17.7 20-800 460 1.01 1/4" QC 243 9.57 25.5 1.0
IQI2LT0250TQ4 IQI-PS-1 Lever Start 0.5-2.5 4.4-22.1 20-525 460 1.01 1/4" QC 243 9.57 25.5 1.0
IQI4LT0500TQ4 IQI-PS-2 Lever Start 2-5 17.7-44 20-900 850 1.87 1/4" QC 248 9.76 30.5 1.2
IQI4LT1000TQ4 IQI-PS-2 Lever Start 4-10 35-88 10-500 850 1.87 1/4" QC 248 9.76 30.5 1.2
IQI4LT1500TQ4 IQI-PS-2 Lever Start 5-15 44-133 10-300 850 1.87 1/4" QC 248 9.76 30.5 1.2
IQI2LT0017PQ4 IQI-PS-1 Push-to-start/Lever start 0.02-0.17 0.17-1.5 50-1500 490 1.08 1/4" QC 269 10.59 25.5 1.0
IQI2LT0017PM4 IQI-PS-1 Push-to-start/Lever start 0.02-0.17 0.17-1.5 50-1500 490 1.08 Half Moon 269 10.59 25.5 1.0
IQI2LT0050PQ4 IQI-PS-1 Push-to-start/Lever start 0.1-0.5 0.88-4.4 20-1000 490 1.08 1/4" QC 269 10.59 25.5 1.0
IQI2LT0100PQ4 IQI-PS-1 Push-to-start/Lever start 0.2-1 1.8-8.8 20-1000 490 1.08 1/4" QC 269 10.59 25.5 1.0
IQI2LT0200PQ4 IQI-PS-1 Push-to-start/Lever start 0.4-2 3.5-17.7 20-800 490 1.08 1/4" QC 269 10.59 25.5 1.0
IQI2LT0250PQ4 IQI-PS-1 Push-to-start/Lever start 0.5-2.5 4.4-22.1 20-525 490 1.08 1/4" QC 269 10.59 25.5 1.0
IQI4LT0500PQ4 IQI-PS-2 Push-to-start/Lever start 2-5 17.7-44 20-900 880 1.94 1/4" QC 272 10.71 30.5 1.2
IQI4LT1000PQ4 IQI-PS-2 Push-to-start/Lever start 4-10 35-88 10-500 880 1.94 1/4" QC 272 10.71 30.5 1.2
IQI4LT1500PQ4 IQI-PS-2 Push-to-start/Lever start 5-15 44-133 10-300 880 1.94 1/4" QC 272 10.71 30.5 1.2
