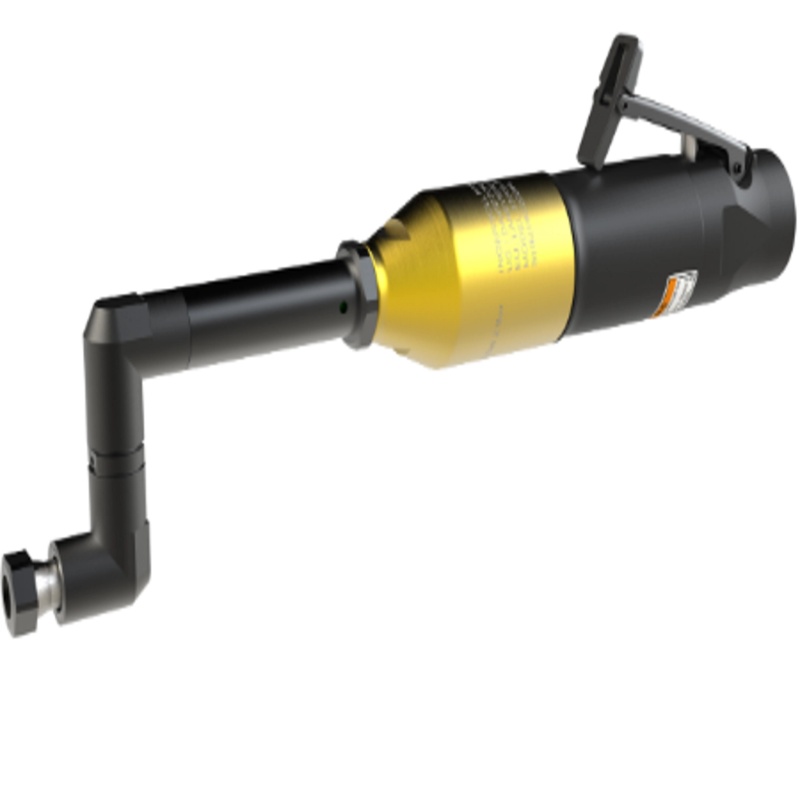

P33N DASL Precision Drills Non Modular with 180° Angle Head

From aircraft manufacturing to aerospace maintenance, P33N is designed to offer flexibility and to answer for requirements of precise drilling and reaming of high technology materials for the aerospace industry.

Item No :
P33N DASL Precision Drills Non Modular with 180° Angle Head
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

Features

P33N Series The New Generation of Precision Drills

• When Engineering know-how, state of the art design and ergonomics meet along with quality and new requirements of flexible production: Ingersoll-Rand provides you with it’s latest P33N generation of precision drills.

• The Ingersoll Rand P33N drill range, originates as an evolution from successfull P33 drill range, providing the same ideal flexibility, power and durability but with a better tool identification as well as an outstanding new ergonomics.

Flexibility and Interchangeability

• One motor type 330W

• Pistol, Straight or Angle version

• Wide range of speeds available, from 660 to 18000 rpms

• 30°, 90°, 180° angle heads

• P33N is the ideal tool for the multi-task drilling environment, it matches operator needs for accuracy and precise drilling operations according to material and application requirements

Operator Confort and Ergonomics

• Lube free motor for a clean working environment

• Soft touch housing for better ergonomic grip

Economic Effectiveness

• P33N range share same motor and gears to reduce inventory cost

Model	Speed (rpm)	Torque (Nm)	MAX capacity (mm)	Weight (Kg)	Length (mm)	Air consumption (l/s)
P33N006-DASL180P45	660	16.0	5.0	0.86	292	10
P33N006-DASL180P64	660	16.0	6.4	0.88	304	10
P33N011-DASL180P45	1100	9.5	5.0	0.86	292	10
P33N011-DASL180P64	1100	9.5	6.4	0.88	304	10
P33N016-DASL180P45	1600	6.8	5.0	0.86	292	10
P33N016-DASL180P64	1600	6.8	6.4	0.88	304	10
P33N022-DASL180P45	2200	4.5	5.0	0.76	277	10
P33N022-DASL180P64	2200	4.5	6.4	0.78	289	10
P33N032-DASL180P45	3200	3.2	5.0	0.76	277	10
P33N032-DASL180P64	3200	3.2	6.4	0.78	289	10
P33N054-DASL180P45	5400	1.9	5.0	0.76	277	10
P33N054-DASL180P64	5400	1.9	6.4	0.78	289	10
