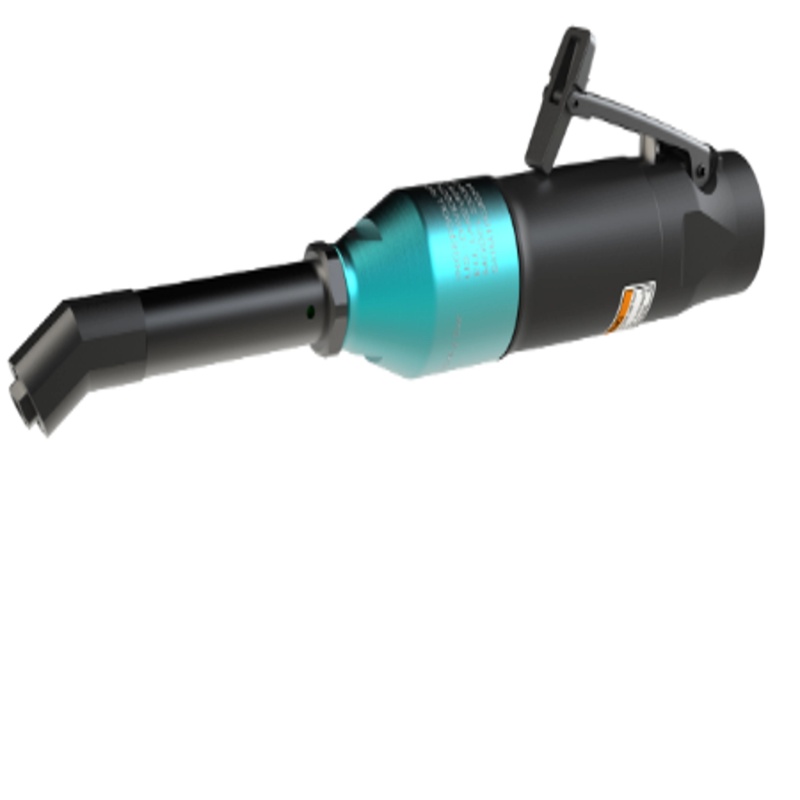

P33N Precision Drills Non Modular with 30° Angle Head

P33N Precision Drills Non Modular with 30° Angle Head

From aircraft manufacturing to aerospace maintenance, P33N is designed to offer flexibility and to answer for requirements of precise drilling and reaming of high technology materials for the aerospace industry.

  • Item No :

    P33N Precision Drills Non Modular with 30° Angle Head
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

From aircraft manufacturing to aerospace maintenance, P33N is designed to offer flexibility and to answer for requirements of precise drilling and reaming of high technology materials for the aerospace industry.

Features

P33N Series The New Generation of Precision Drills



When Engineering know-how, state of the art design and ergonomics meet along with quality and new requirements of flexible production: Ingersoll-Rand provides you with it’s latest P33N generation of precision drills.



The Ingersoll Rand P33N drill range, originates as an evolution from successfull P33 drill range, providing the same ideal flexibility, power and durability but with a better tool identification as well as an outstanding new ergonomics.



Flexibility and Interchangeability

• One motor type 330W

• Pistol, Straight or Angle version

• Wide range of speeds available, from 660 to 18000 rpms

• 30°, 90°, 180° angle heads

• P33N is the ideal tool for the multi-task drilling environment, it matches operator needs for accuracy and precise drilling operations according to material and application requirements



Operator Confort and Ergonomics

• Lube free motor for a clean working environment

• Soft touch housing for better ergonomic grip



Economic Effectiveness

• P33N range share same motor and gears to reduce inventory cost



Model Speed (rpm) Torque (Nm) MAX capacity (mm) Weight (Kg) Length (mm) Air consumption (l/s)
P33N006-DASL030P45 660 16 5.0 0.80 284 10
P33N006-DASL030P64 660 16 6.4 0.81 296 10
P33N011-DASL030P45 1100 9.5 5.0 0.80 284 10
P33N011-DASL030P64 1100 9.5 6.4 0.81 296 10
P33N016-DASL030P45 1600 6.8 5.0 0.80 284 10
P33N016-DASL030P64 1600 6.8 6.4 0.81 296 10
P33N022-DASL030P45 2200 4.5 5.0 0.69 269 10
P33N022-DASL030P64 2200 4.5 6.4 0.70 281 10
P33N032-DASL030P45 3200 3.2 5.0 0.69 269 10
P33N032-DASL030P64 3200 3.2 6.4 0.70 281 10
P33N054-DASL030P45 5400 1.9 5.0 0.69 269 10
P33N054-DASL030P64 5400 1.9 6.4 0.70 281 10
