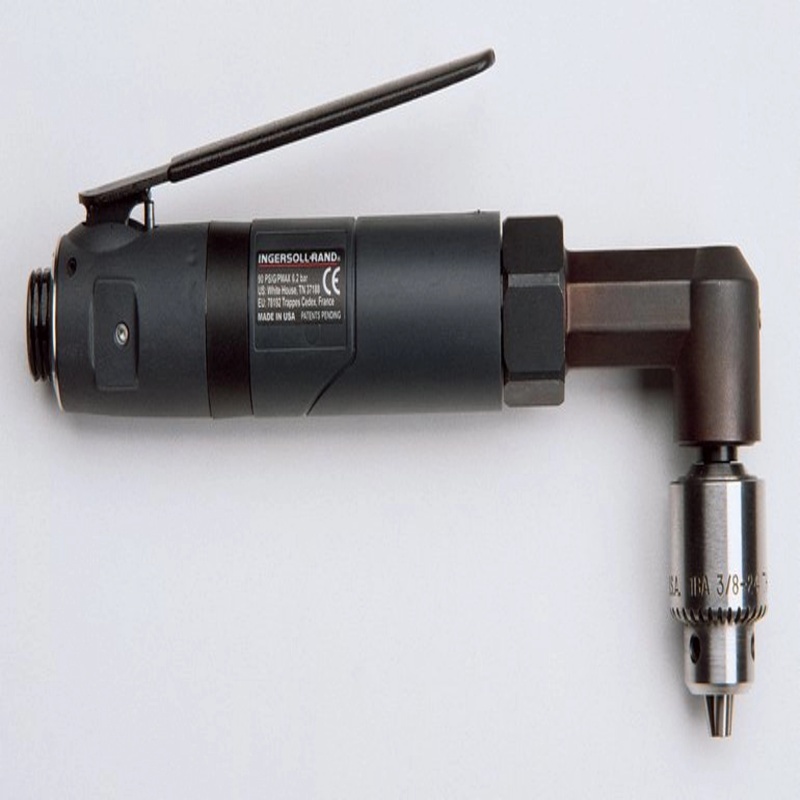

Q2 Series Angle Air Drill

Q2 Series Angle Air Drill

Compact and light weight. This tool delivers more power in a smaller package to get the job done in less time. Production angle drills provide 360 degree angle head rotation for ideal tool, task, and user orientation.

  • Item No :

    Q2 Series Angle Air Drill
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

Compact and light weight. This tool delivers more power in a smaller package to get the job done in less time. Production angle drills provide 360 degree angle head rotation for ideal tool, task, and user orientation.

Features

Tool Design

Ergonomically designed housing provides for a secure operator grip.

Infinitely variable speed allows slow speed starting and high speed drilling

Maximum TIR of .005” ensures precision holes for critical applications

Speeds: 500 to 3500 RPM

Maximum stall torque: 12.5 Nm

Angle head may be rotated 360 degree to allow ideal orientation with the throttle

Modular design allows maximum parts interchangeability and easy, low cost maintenance



Model

Actuation

Reversible

Rated Power (hp)

Max. Working Torque (in-lb)

Free Speed (rpm)

Weight (lb)

Length (in)

Bit Holder Capacity (in)

Side to Center (in)

Sound Level dB(A)

Rated Power (hp)

Head Style

Air Inlet

cfm

QA2739D

Lever

n/a

n/a

n/a

2700

3

n/a

16

0.4

76.8

90 Degree

1/4 in. NPT

n/a

QA2759D

Lever

16

n/a

n/a

n/a

2700

4

8.7

4

0.4

76.8

90 Degree

1/4 in. NPT

n/a

QA0859D

Lever

n/a

n/a

n/a

850

1.4

8.7

4

0.4

77.2

90 Degree

1/4 in. NPT

n/a

QA0559D

Lever

n/a

n/a

n/a

500

1.4

8.7

4

0.4

77

90 Degree

1/4 in. NPT

n/a

QA2754D

Lever

n/a

n/a

n/a

2700

1.47

10.55

4

0.3

76.8

45 Degree small head

1/4 in. NPT

n/a
