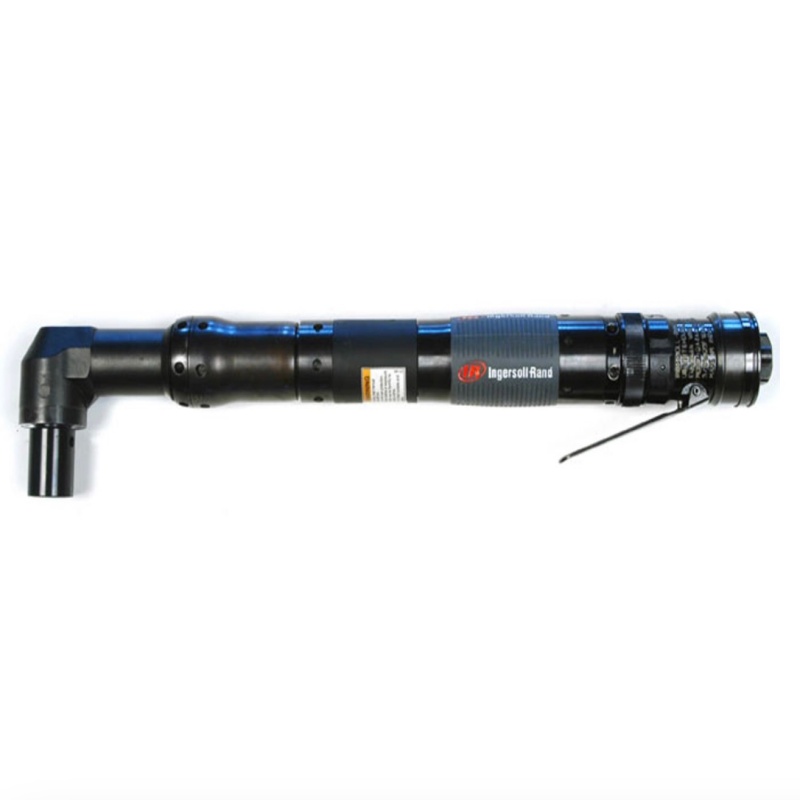

QA4 Series Handheld Angle Stall Air Nutrunner

QA4 Series Handheld Angle Stall Air Nutrunner

The QA4 Series Angle Stall nutrunner makes even the toughest jobs easier and more comfortable. With a reverse ring for your comfort and a 360-degree indexed angle head that provides maximum flexibility, hard-to-reach jobs are a breeze.

  • Item No :

    QA4 Series Handheld Angle Stall Air Nutrunner
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

The QA4 Series Angle Stall nutrunner makes even the toughest jobs easier and more comfortable. With a reverse ring for your comfort and a 360-degree indexed angle head that provides maximum flexibility, hard-to-reach jobs are a breeze.

Features

Durable & Reliable:



Built to last and made to perform, the QA4 Series Angle Stalls motor runs to stall, ensuring consistent torque repeatability.

Easy to Maintain:



The QA4 Series is specially designed for easy upkeep.



Model

Actuation

Torque Range (Nm)

Torque Range (ft-lb)

Free Speed (rpm)

Weight (kg)

Weight (lb)

Length (mm)

Length (in)

Angle Head Side to Center (mm)

Angle Head Side to Center (in)

Angle Head Height (mm)

Angle Head Height (in)

Air Inlet

cfm

Spindle Type

Sound (dBA)

QA4AALD011NP25S06

Lever Start

11 - 13

8 - 9.6

1025

1.12

2.47

282

11.1

13

0.5

33

1.28

1/4 in NPT

27

3/8 in. Square

79.3

QA4AALD015NP25S06

Lever Start

15 - 16

11 - 11.8

800

1.12

2.47

282

11.1

13

0.5

33

1.28

1/4 in NPT

27

3/8 in. Square

79.3

QA4AALD020NP25S06

Lever Start

20 - 21

15 - 15.5

625

1.12

2.47

282

11.1

13

0.5

33

1.28

1/4 in NPT

27

3/8 in. Square

79.3

QA4AALD030NP28S06

Lever Start

30 - 31

22 - 22.9

425

1.2

2.63

282

11.1

14

0.55

35

1.39

1/4 in NPT

27

3/8 in. Square

79.3

QA4AALD040NP35S06

Lever Start

40 - 41

30 - 30.2

325

1.48

3.25

335

13.2

18

0.69

44

1.71

1/4 in NPT

27

3/8 in. Square

79.3

QA4AALD055NP35S08

Lever Start

55 - 58

40 - 42.8

200

1.76

3.88

358

14.1

18

0.69

44

1.71

1/4 in NPT

27

1/2 in. Square

79.3
