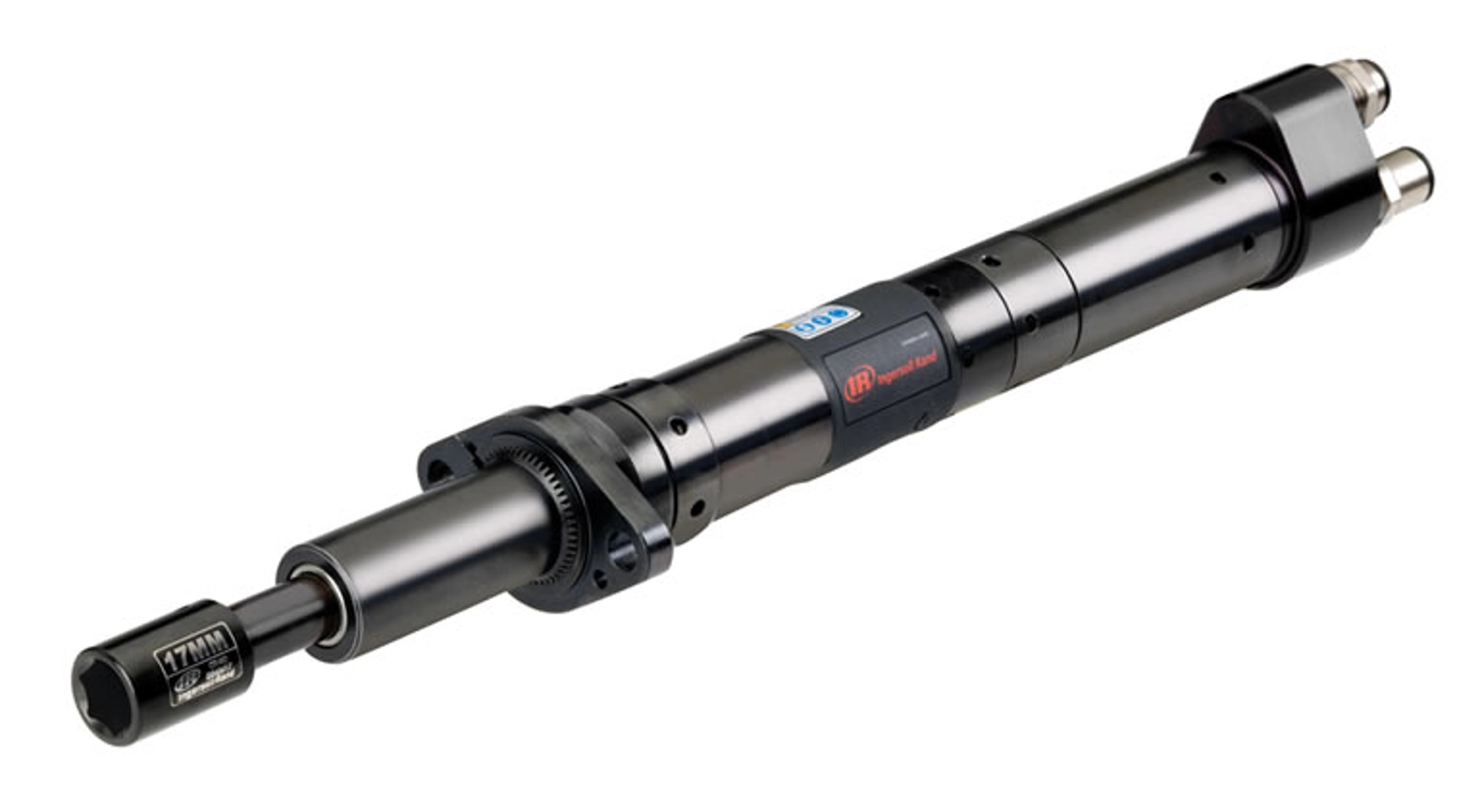

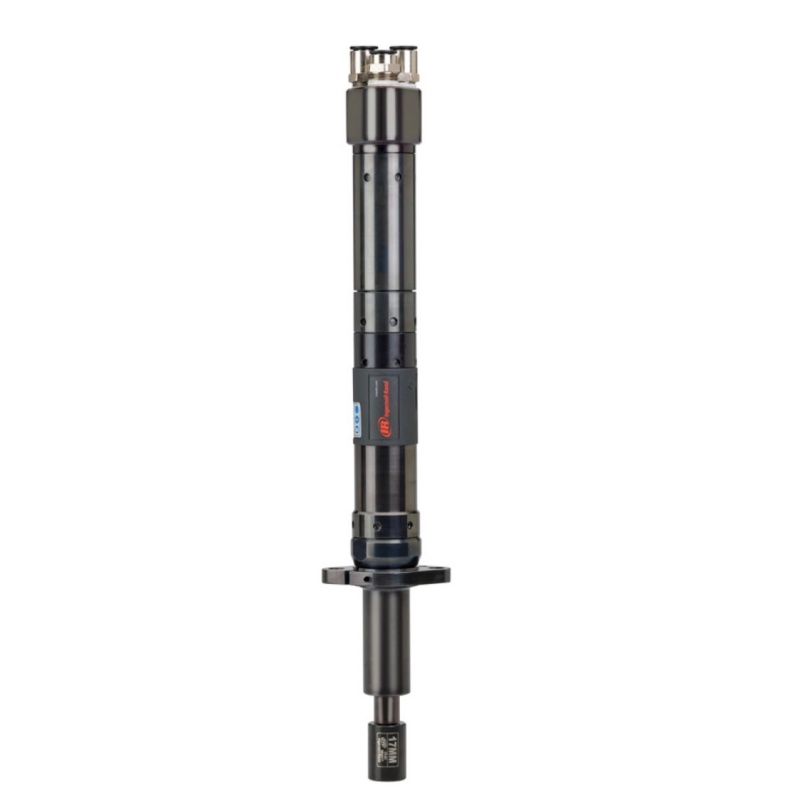

QA6 Series Fixtured Inline Remote Adjustable Shutoff Air Nutrunner
QA6 Series Fixtured Inline Remote Adjustable Shutoff Air Nutrunner

QA6 Series Fixtured Inline Remote Adjustable Shutoff Air Nutrunner

The QA6 Series nutrunners are designed to work as hard as you do. These tools are equipped with a reverse ring positioned for maximum comfort, multiple mounting flange options and a standard 4inline spindle that provides 19mm of float.

  • Item No :

    QA6 Series Fixtured Inline Remote Adjustable Shutoff Air Nutrunner
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    2.61kg

The QA6 Series nutrunners are designed to work as hard as you do. These tools are equipped with a reverse ring positioned for maximum comfort, multiple mounting flange options and a standard 4inline spindle that provides 19mm of float.

Features

Accurate:



Adjustable External clutch for Delivering Consistent Torque Results

Durability:



Spend your time working, not waiting for repair. QA series has been tested for 1 Million cycles without failure

Easy to Maintain:



The lube-free motor makes it easy to manage the upkeep nutrunner with just a spanner wrench.



Model

Actuation

Torque Range (Nm)

Torque Range (ft-lb)

Free Speed (rpm)

Weight (kg)

Weight (lb)

Length (mm)

Length (in)

Head Side to Center (mm)

Head Side to Center (in)

Air Inlet

cfm

Spindle Type

Common Fastener Size

Sound (dBA)

QA6ASRS025NF41S06

Remote Start

12 - 25

8.9 - 18.4

700

2.61

5.76

454

17.9

34

1.34



36

3/8 in. Square

M6 - M8

82.5

QA6ASRS030NF41S06

Remote Start

15 - 30

11.1 - 22.1

585

2.61

5.76

454

17.9

34

1.34



36

3/8 in. Square

M8

82.5

QA6ASRS040NF41S06

Remote Start

20 - 40

14.8 - 29.5

435

2.61

5.76

454

17.9

34

1.34



36

3/8 in. Square

M8

82.5

QA6ASRS055NF41S08

Remote Start

25 - 55

18.4 - 40.6

315

2.62

5.78

454

17.9

34

1.34



36

1/2 in. Square

M10

82.5
