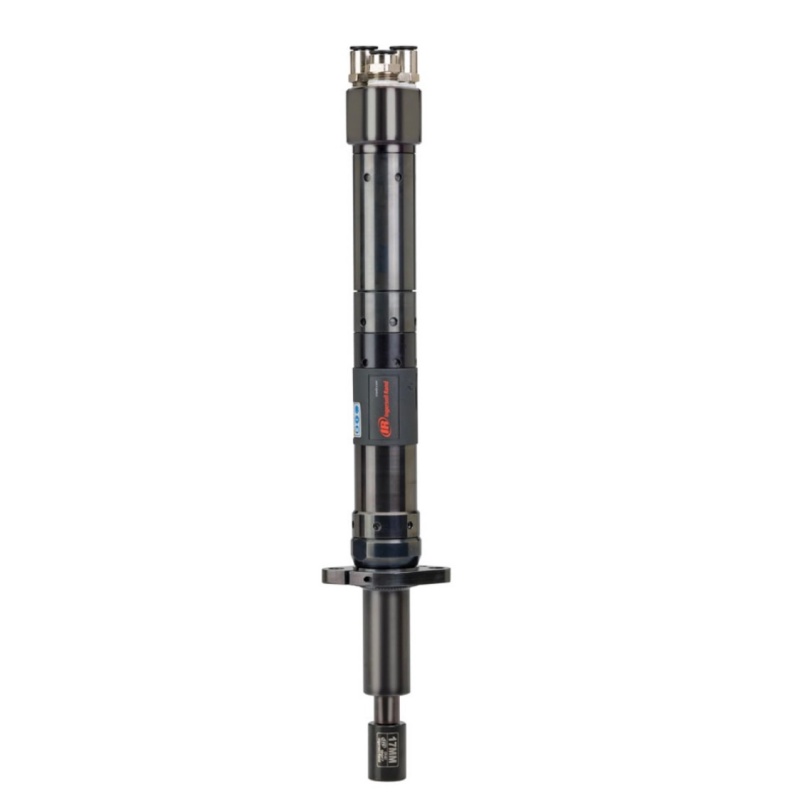

QA8 Series Fixtured Inline Remote Adjustable Shutoff

QA8 Series Fixtured Inline Remote Adjustable Shutoff

With adjustable shutoff clutch and externally adjustable precision shutoff clutch options, the QA8 Series Inline Fixtured Adjustable Shutoff nutrunners are great for any fastening applications involving plastics, composites and metals.

  • Item No :

    QA8 Series Fixtured Inline Remote Adjustable Shutoff
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

With adjustable shutoff clutch and externally adjustable precision shutoff clutch options, the QA8 Series Inline Fixtured Adjustable Shutoff nutrunners are great for any fastening applications involving plastics, composites and metals.

Features

Durable:



With the precision shutoff clutch having been tested 1 million cycles without failure, you can be sure this tool will go the distance.

Easy to Maintain:



With reduced downtime for repair, this tool is an asset at every job site.

User Experience:



The reverse ring position and standard 4inline spindle make handling this tool easy, and the multiple mounting flange options allow you to adjust your tool to your specifications.



Model

Actuation

Torque Range (Nm)

Torque Range (ft-lb)

Free Speed (rpm)

Weight (kg)

Weight (lb)

Length (mm)

Length (in)

Head Side to Center (mm)

Head Side to Center (in)

Air Inlet

cfm

Spindle Type

Common Fastener Size

Sound (dBA)

QA8ASRS040NF41S08

Remote Start

20 - 40

14.8 - 29.5

540

2.74

6.05

478

18.8

34

1.34



46

1/2 in. Square

M8

87

QA8ASRS055NF41S08

Remote Start

25 - 55

18.4 - 40.6

425

2.74

6.05

478

18.8

34

1.34



46

1/2 in. Square

M10

87

QA8ASRS070NF41S08

Remote Start

35 - 70

25.8 - 51.6

320

3.09

6.8

482

19

43

1.69



46

1/2 in. Square

M10

87

QA8ASRS090NF41S08

Remote Start

45 - 90

33.2 - 66.4

230

3.42

7.53

518

20.4

43

1.69



46

1/2 in. Square

M10 - M12

87

QA8ASRS115NF41S08

Remote Start

70 - 115

51.6 - 84.8

195

3.64

8.02

517

20.4

51

2



46

1/2 in. Square

M12

87

QA8ASRS150NF41S08

Remote Start

75 - 150

55.3 - 110.6

150

3.64

8.02

517

20.4

51

2



46

1/2 in. Square

M12 - M14

87
