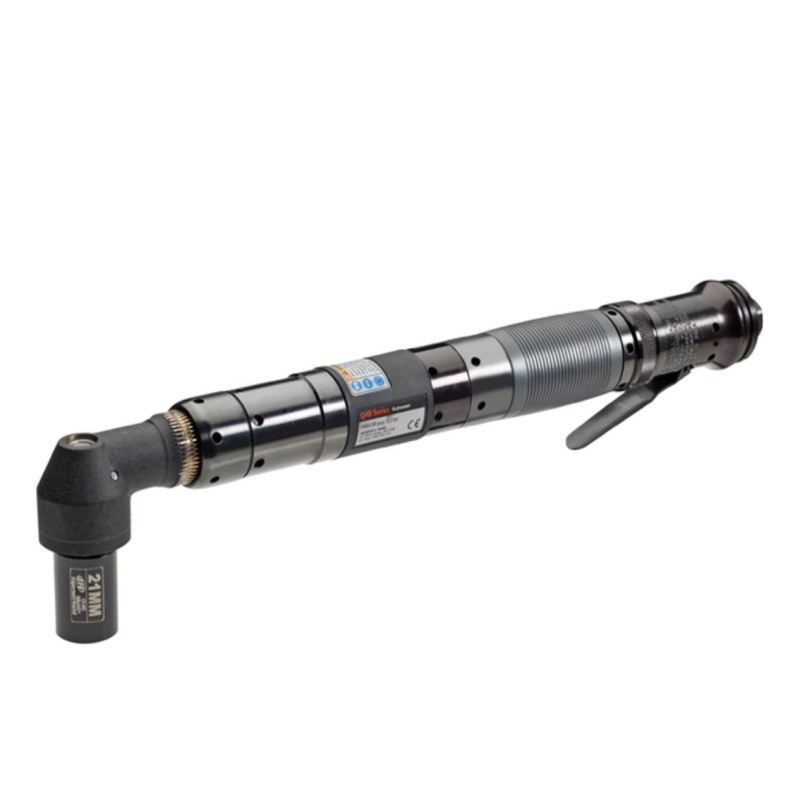

QA8 Series Nutrunners - Handheld Angle Stall

QA8 Series Nutrunners - Handheld Angle Stall

Great for soft pull applications in wood and other materials, the QA8 Series Handheld Angle Stall Nutrunners are an asset on any job site.

  • Item No :

    QA8 Series Nutrunners - Handheld Angle Stall
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

Great for soft pull applications in wood and other materials, the QA8 Series Handheld Angle Stall Nutrunners are an asset on any job site.

Features

Durable:



With a precision shutoff clutch that has been tested to one million cycles without failure, you can count on this tool to deliver the performance you expect from it.

Easy to Maintain:



This tool is easy to maintain thanks to a non-lube motor and easy servicing with a spanner wrench.

Easy to Use:



The 360-degree indexing of angle head allows you to position the tool the way you want, while the position of the reverse ring is optimized for user comfort.



Model

Drive Size (in)

Torque Range ft-lb (Nm)

Stall Torque ft-lb (Nm)

Side to Center in (mm)

Head Height, in (mm)

Weight lbs (kg)

Free Speed (rpm)

Length in (mm)

QA8AALD040NP35S06

3/8

30 (40)

38.3 (52)

0.69 (18)

1.71 (43.5)

4.98 (2.26)

570

17.8 (453)

QA8AALD040NP35S08

1/2

30 (40)

38.3 (52)

0.69 (18)

1.71 (43.5)

5.00 (2.27)

570

17.8 (453)

QA8AALD055NP35S08

1/2

41 (55)

50.1 (68)

0.69 (18)

1.71 (43.5)

5.00 (2.27)

425

17.8 (453)

QA8AALD070NP43S08

1/2

52 (70)

63.4 (86)

0.85 (22)

1.76 (44.7)

5.00 (2.27)

320

17.5 (445)

QA8AALD090NP43S08

1/2

66 (90)

79.6 (108)

0.85 (22)

1.76 (44.7)

5.00 (2.27)

255

17.5 (445)

QA8AALD115NP48S08

1/2

85 (115)

91.4 (124)

0.97 (25)

1.97 (50)

5.75 (2.61)

200

17.8 (452)

QA8AALD150NP48S08

1/2

111 (150)

121.7 (165)

0.97 (25)

1.97 (50)

6.48 (2.94)

145

19.2 (489)

QA8AALD200NF56S12

3/4

148 (200)

157.1 (213)

1.19 (30)

2.09 (53.2)

8.47 (3.84)

110

20 (508)

QA8AALD225NF56S12

3/4

166 (225)

202.1 (274)

1.19 (30)

2.09 (53.2)

8.47 (3.84)

90

20 (508)
