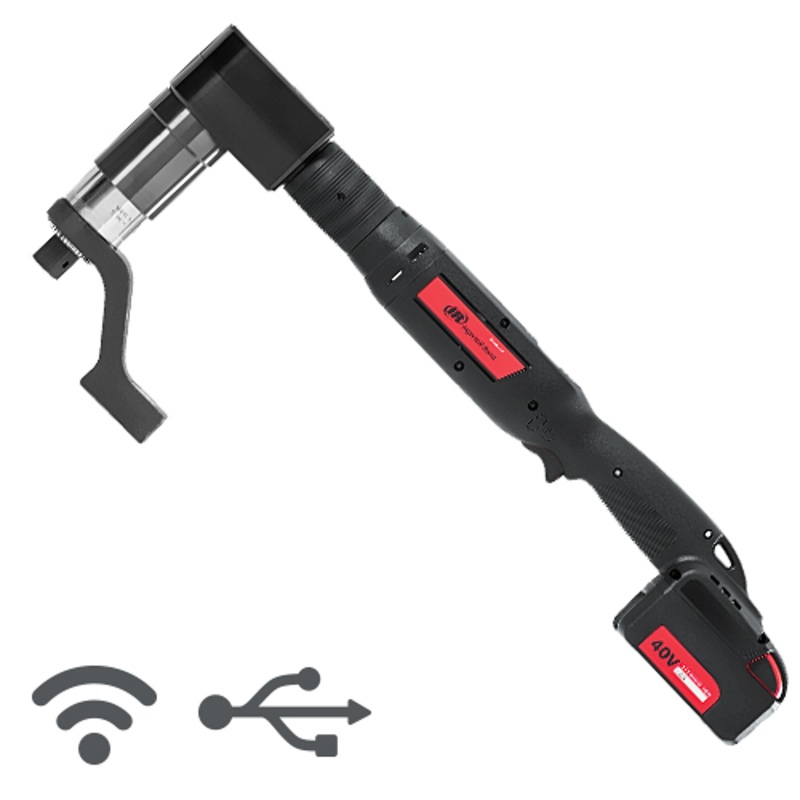

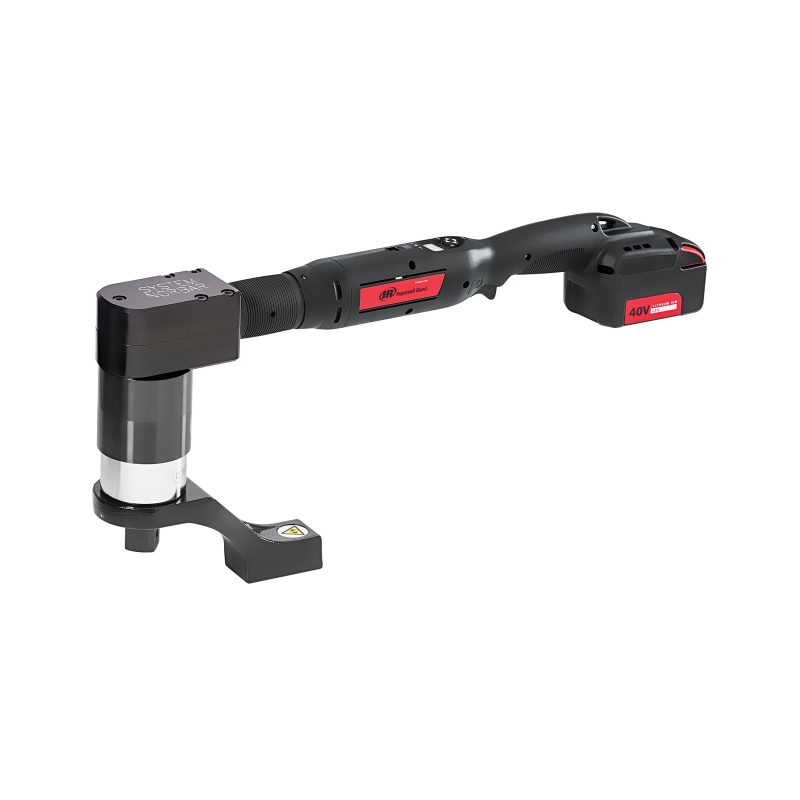

QX Series™ Cordless Angle Torque Multiplier

The innovative QX Series™ Cordless Angle Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar™ gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity.

Features

Closed-loop transducer delivers a torque accuracy of +/- 5%

Enhanced quantitative feedback – displaying the actual measured torque or angle result

Integrated gearbox provides premium quality and accuracy

Brushless Motor offers maximum durability

Intuitive qualitative feedback using green, red, and yellow indicators

360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options

Standard or custom reaction arms available to match your application needs

Optional wireless communication for process control with I/O and data collections (USB connection standard)

1,200 cycles of onboard tightening data storage

Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Softwar, Through On-Board Tool Display/ Key
