Ingersoll Rand

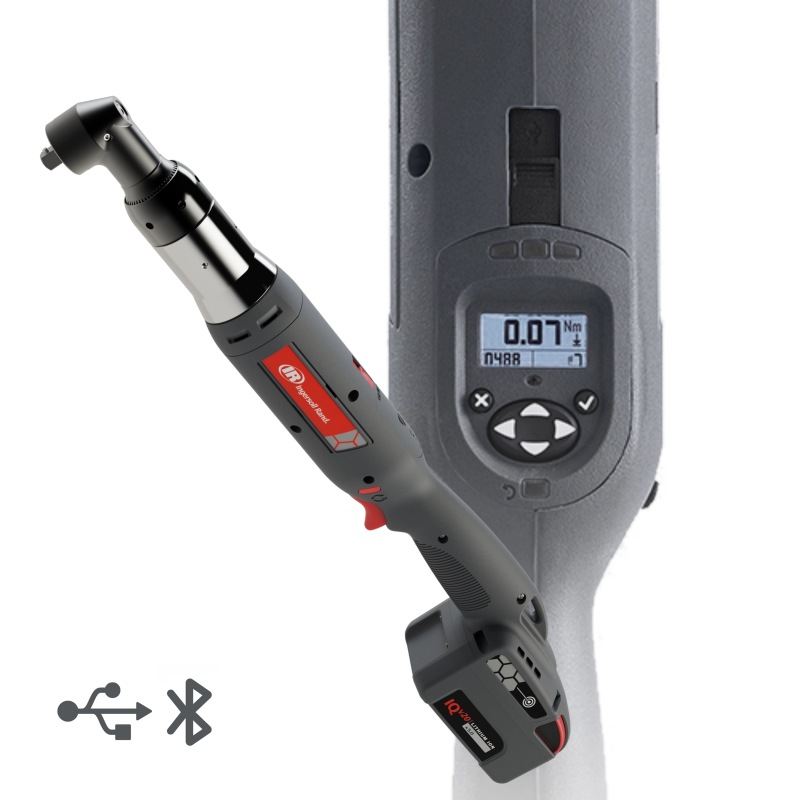

QXBD Cordless Angle Wrench

Increase the productivity of your assembly line with the Cordless 20V Angle Wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results. Reducing torque reaction doesn’t have to be complicated with the QX Series™ Ergonomic Tightening System.

The QXBD and QXBN models also offer users the Bluetooth connectivity capability to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.

Item No :
QXBD Cordless Angle Wrench
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

The QXBD and QXBN models also offer users the Bluetooth connectivity capability to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.

Features

Comes with 32 programmable tightening configurations

Optional Bluetooth models (QXBD, QXBN) further add mobility to enable Wireless programming using the INSIGHT Connect app

Available in Pistol and Angle Configuration

Enhanced quantitative feedback – displaying the actual measured torque or angle result

1,200 cycles of onboard tightening data storage

Configurable preventative maintenance alarms

Intuitive qualitative feedback using green, red, and yellow indicators

All QX Connect Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our IQv Lithium Ion Universal charger BC1121.

Insight Connect Android APP LINK

Optional ergonomic tightening system to reduce torque reaction experienced by operator. Visit QX ETS

to learn more.

Multiple Programming Methods

Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software

Through On Board Tool Display/Key on QXBD Models

Model	Configuration	Torque Range (Nm)	Torque Range (in-lbs)	Free Speed (RPM)	Drive Size/Type	Communication	Display	Battery Type	Weight w/out Battery (kg)	Weight w/out Battery (lbs)	Side to Center (mm)	Side to Center (in)	Length (mm)	Length (in)	Height with slim battery (mm)	Height with slim battery (in)	Height with large battery (mm)
QXBD2AT005PQ04	Right Angle	1.0-5	9-44	1213	1/4 in. Quick Change	Bluetooth + USB Cable	Yes	20V Li-ion	1.14	2.5	9.2	0.36	550.2	21.67	80.6	3.17	100
QXBD2AT010PS06	Right Angle	2.0-10	18-89	936	3/8 in. Square	Bluetooth + USB Cable	Yes	20V Li-ion	1.18	2.6	12.5	0.49	525	20.67	80.6	3.17	100
QXBD2AT015PS06	Right Angle	3.0-15	27-133	600	3/8 in. Square	Bluetooth + USB Cable	Yes	20V Li-ion	1.18	2.6	12.5	0.49	525	20.67	80.6	3.17	100
QXBD2AT018PQ04	Right Angle	3.6-18	32-159	500	1/4 in. Quick Change	Bluetooth + USB Cable	Yes	20V Li-ion	1.27	2.8	13.3	0.52	542	21.34	80.6	3.17	100
QXBD2AT018PS06	Right Angle	3.6-18	32-159	500	3/8 in. Square	Bluetooth + USB Cable	Yes	20V Li-ion	1.27	2.8	13.3	0.52	542	21.34	80.6	3.17	100
QXBD2AT027ES06	Right Angle-ETS	5.4-27	48-239	330	3/8 in. Square	Bluetooth + USB Cable	Yes	20V Li-ion	1.68	3.7	17.2	0.67	552	21.73	80.6	3.17	100
QXBD2AT027PS06	Right Angle	5.4-27	48-239	330	3/8 in. Square	Bluetooth + USB Cable	Yes	20V Li-ion	1.68	3.7	17.2	0.67	552	21.73	80.6	3.17	100
