Ingersoll Rand

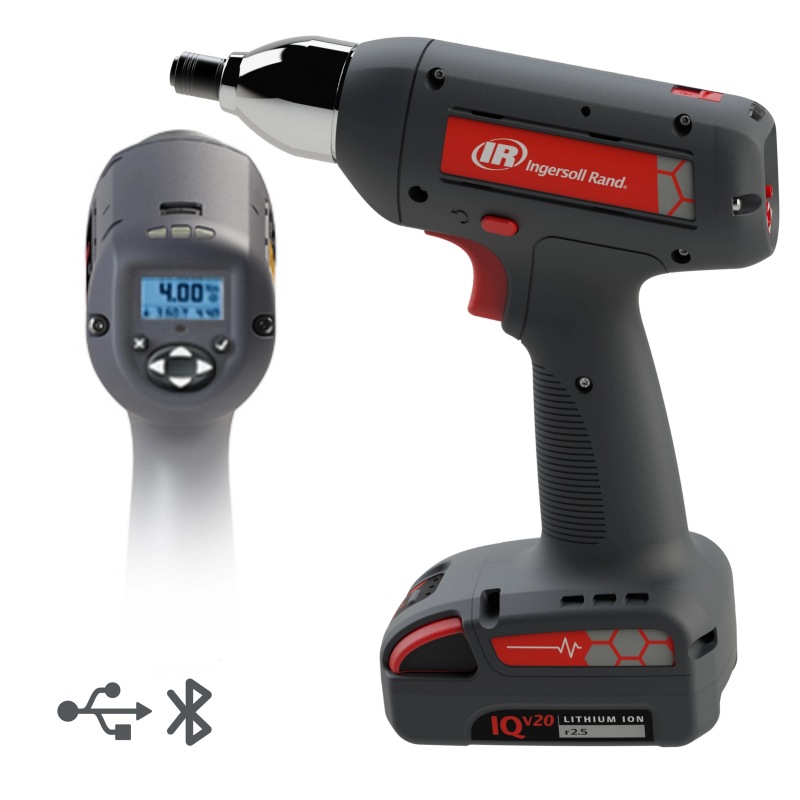

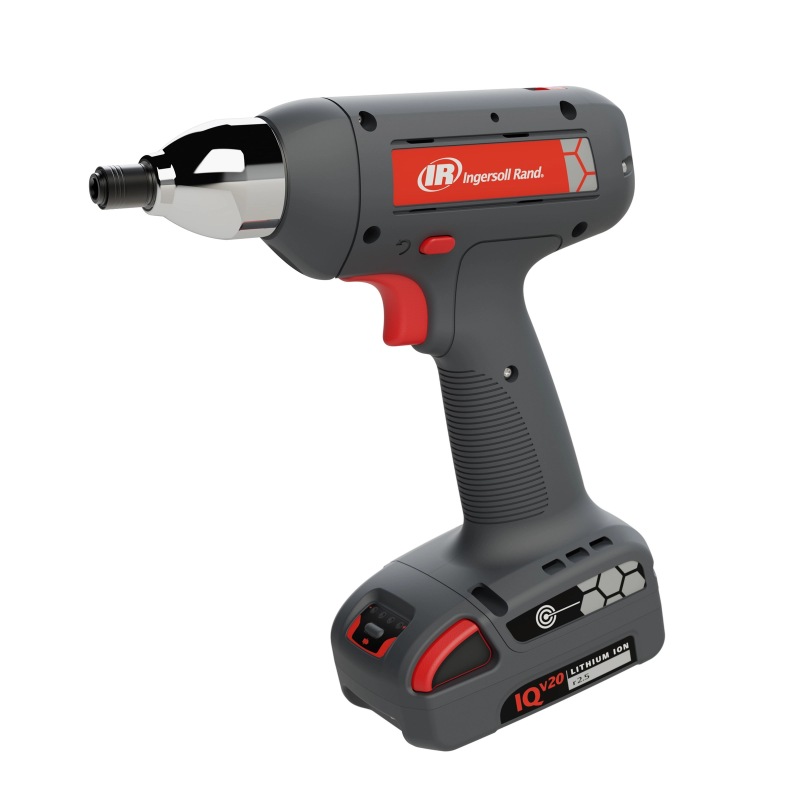

QXBN Cordless Precision Screwdriver, Pistol Grip

QXBN Cordless Precision Screwdriver, Pistol Grip

Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results. Reducing torque reaction doesn’t have to be complicated with the QX Series™ Ergonomic Tightening System.

The QXBD and QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series™ tools using the INSIGHT Connect App.

Item No :
QXBN Cordless Precision Screwdriver, Pistol Grip
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

The QXBD and QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series™ tools using the INSIGHT Connect App.

Features

Comes with 32 programmable tightening configurations

Optional Bluetooth models (QXBD, QXBN) further add mobility to enable Wireless programming using the INSIGHT Connect app

Available in Pistol and Angle Configuration

Enhanced quantitative feedback – displaying the actual measured torque or angle result

1,200 cycles of onboard tightening data storage

Configurable preventative maintenance alarms

Intuitive qualitative feedback using green, red, and yellow indicators

All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our IQv Lithium Ion Universal charger BC1121.

Insight Connect Android APP LINK

Optional ergonomic tightening system to reduce torque reaction experienced by operator. Visit QX ETS to learn more

Multiple Programming Methods

Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software

Through On Board Tool Display/Key on QXBD Models

Model	Configuration	Torque Range (Nm)	Torque Range (in-lbs)	Free Speed (RPM)	Drive Size/Type	Communication	Display	Battery Type	Weight w/out Battery (kg)	Weight w/out Battery (lbs)	Side to Center (mm)	Side to Center (in)	Length (mm)	Length (in)	Height with slim battery (mm)	Height with slim battery (in)	Height with large battery (mm)
QXBD2PT004PQ04	Pistol	0.8-4	7-35	1500	1/4 in. Quick Change	USB Only	Yes	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7
QXBD2PT004PS04	Pistol	0.8-4	7-35	1500	1/4 in. Square	USB Only	Yes	20V Li-ion	0.91	2	26	1	199.3	7.85	237	9.33	255.7
QXBD2PT004PS06	Pistol	0.8-4	7-35	1500	3/8 in. Square	USB Only	Yes	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7
QXBD2PT004VQ04	Pistol- Haz Tool	.8 - 4	7-35	1500	1/4 in. Quick Change	USB Only	Yes	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7
QXBD2PT004VS06	Pistol- Haz Tool	.8 - 4	7-35	1500	3/8 in. Square	USB Only	Yes	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7
QXBD2PT008ES06	Pistol-ETS	1.6-8	14-70	1150	3/8 in. Square	USB Only	Yes	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7
QXBD2PT008EQ04	Pistol-ETS	1.6-8	14-70	1150	1/4 in. Quick Change	USB Only	Yes	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7
QXBD2PT008PQ04	Pistol	1.6-8	14-70	1150	1/4 in. Quick Change	USB Only	Yes	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7
QXBD2PT008PS04	Pistol	1.6-8	14-70	1150	1/4 in. Square	USB Only	Yes	20V Li-ion	0.91	2	26	1	199.3	7.85	237	9.33	255.7
QXBD2PT008PS06	Pistol	1.6-8	14-70	1150	3/8 in. Square	USB Only	Yes	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7
QXBD2PT008VQ04	Pistol- Haz Tool	1.6 - 8	14-70	1150	1/4 in. Quick Change	USB Only	Yes	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7
QXBD2PT008VS06	Pistol- Haz Tool	1.6 - 8	14-70	1150	3/8 in. Square	USB Only	Yes	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7
QXBD2PT004ES04	Pistol-ETS	2.4-12	21-106	750	3/8 in. Square	USB Only	Yes	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7
QXBD2PT004EQ04	Pistol-ETS	2.4-12	21-106	750	1/4 in. Quick Change	USB Only	Yes	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7
QXBD2PT004PQ04	Pistol	2.4-12	21-106	750	1/4 in. Quick Change	USB Only	Yes	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7
QXBD2PT004PS04	Pistol	2.4-12	21-106	750	1/4 in. Square	USB Only	Yes	20V Li-ion	0.91	2	26	1	199.3	7.85	237	9.33	255.7
QXBD2PT004PS06	Pistol	2.4-12	21-106	750	3/8 in. Square	USB Only	Yes	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7
QXBD2PT004VQ04	Pistol- Haz Tool	2.4 - 12	21-106	750	1/4 in. Quick Change	USB Only	Yes	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7
