Ingersoll Rand

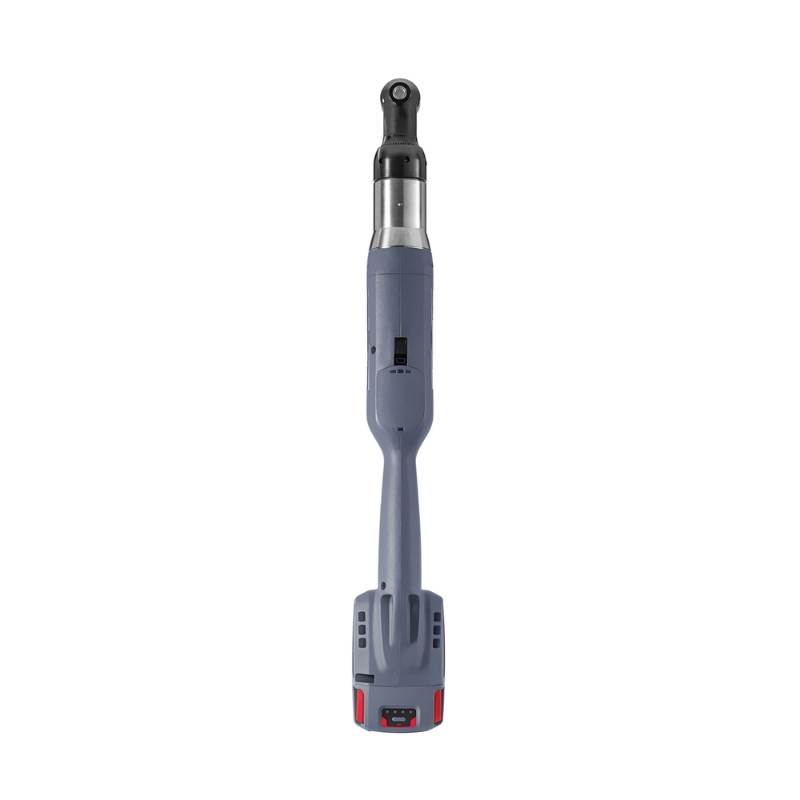

QXFD Cordless Angle Wrench

Increase the productivity of your assembly line with 20V angle Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results. Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System.

The QXBD and QXBN models also offer users the Bluetooth connectivity capability to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.

Item No :
QXFD Cordless Angle Wrench
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

The QXBD and QXBN models also offer users the Bluetooth connectivity capability to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.

Features

Now Comes with 32 programmable tightening configurations

Available in Pistol and Angle Configuration

1,200 cycles of onboard tightening data storage

Configurable preventative maintenance alarms

Intuitive qualitative feedback using green, red, and yellow indicators

All QX Series™ IQV® 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our IQV® Lithium Ion Universal charger BC1121.

Insight Connect Android APP LINK

Optional ergonomic tightening system to reduce torque reaction experienced by operator. Visit QX ETS to learn more.

Programming Methods

Through USB with Insight Connect App available on Android

INSIGHTqcx Controllers

Through On Board Tool Display/ Key on QXFD Models

ICS Software

Model	Configuration	Torque Range (Nm)	Torque Range (in-lbs)	Free Speed (RPM)	Drive Size/Type	Communication	Display	Battery Type	Weight w/out Battery (kg)	Weight w/out Battery (lbs)	Side to Center (mm)	Side to Center (in)	Length (mm)	Length (in)	Height with slim battery (mm)	Height with slim battery (in)	Height with large battery (mm)	Height with large battery (in)
QXFD2AT05PQ4	Right Angle	1.0-5	9-44	1213	1/4 in. Quick Change	USB Only	Yes	20V Li-ion	1.14	2.5	9.2	0.36	550.2	21.67	80.6	3.17	100	3.94
QXFD2AT10PS6	Right Angle	2.0-10	18-89	936	3/8 in. Square	USB Only	Yes	20V Li-ion	1.18	2.6	12.5	0.49	525	20.67	80.6	3.17	100	3.94
QXFD2AT15PS6	Right Angle	3.0-15	27-133	600	3/8 in. Square	USB Only	Yes	20V Li-ion	1.18	2.6	12.5	0.49	525	20.67	80.6	3.17	100	3.94
QXFD2AT18PQ4	Right Angle	3.6-18	32-159	500	1/4 in. Quick Change	USB Only	Yes	20V Li-ion	1.27	2.8	13.3	0.52	542	21.34	80.6	3.17	100	3.94
QXFD2AT18PS6	Right Angle	3.6-18	32-159	500	3/8 in. Square	USB Only	Yes	20V Li-ion	1.27	2.8	13.3	0.52	542	21.34	80.6	3.17	100	3.94
QXFD2AT27ES6	Right Angle-ETS	5.4-27	48-239	330	3/8 in. Square	USB Only	Yes	20V Li-ion	1.68	3.7	17.2	0.67	552	21.73	80.6	3.17	100	3.94
QXFD2AT27PS6	Right Angle	5.4-27	48-239	330	3/8 in. Square	USB Only	Yes	20V Li-ion	1.68	3.7	17.2	0.67	552	21.73	80.6	3.17	100	3.94
