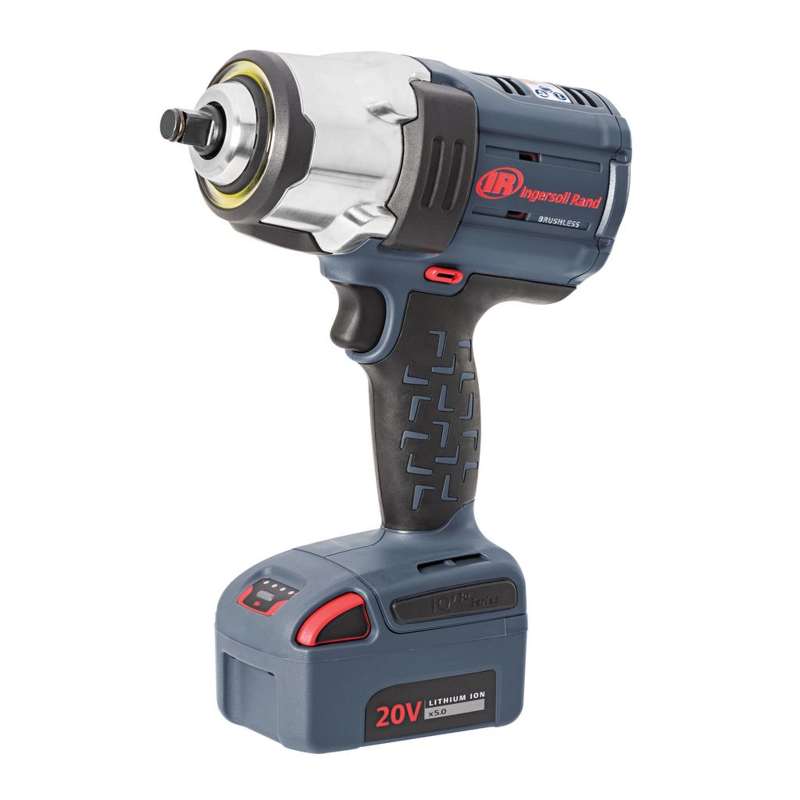

W7152 IQV20™ 1/2" High-Torque Cordless Impact Wrench
W7152 IQV20™ 1/2" High-Torque Cordless Impact Wrench

W7152 IQV20™ 1/2" High-Torque Cordless Impact Wrench

The W7152 is the most powerful ½” cordless impact wrench in its class. Delivering 1500 ft-lbs of nut-busting torque and utilizing the IQV® Intelligent Control System, the W7152 can go from MAX torque to “hand tight” in no time.

  • Item No :

    W7152 IQV20™ 1/2" High-Torque Cordless Impact Wrench
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

The W7152 is the most powerful ½” cordless impact wrench in its class. Delivering 1500 ft-lbs of nut-busting torque and utilizing the IQV® Intelligent Control System, the W7152 can go from MAX torque to “hand tight” in no time.

Features

Power:

Powerful brushless motor and impact mechanism are both finely tuned for best in class power-to-weight ratio.

Control:

Includes the IQV® Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there’s no need to switch tools.

Durable:

Patented steel-reinforced frame and impact-and-chemical resistant housing protect the W7152 from everyday abuse. The IQV® brushless motor delivers more power and efficiency than a brushed motor, providing longer tool life.

Access:

8.1" short tip-to-tail design and 360⁰ shadowless task light provide increased visibility and access.

Other Features:



Tuned impact mechanism with 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque

Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency

Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger, the drive stops spinning

4 dimmable settings on the shadowless 360º LED light ring

Tough composite housing and patented steel-reinforced frame protects against aggressive fluids, chemicals, and repeated drops

Ideally used for removing or fastening cradle bolts tire changing, fleet truck maintenance and in industrial and MRO settings

Weighs only 7.6 lbs (with BL2022 battery)

3-year warranty

Available as combo kits:



W7152-K12: 1 BL2022 Battery, Tool, Charger, Case

W7152-K22: 2 BL2022 Battery, Tool, Charger, Case

W7152P-K22: 2 BL2022 Battery, Tool (Pin Anvil), Charger, Case

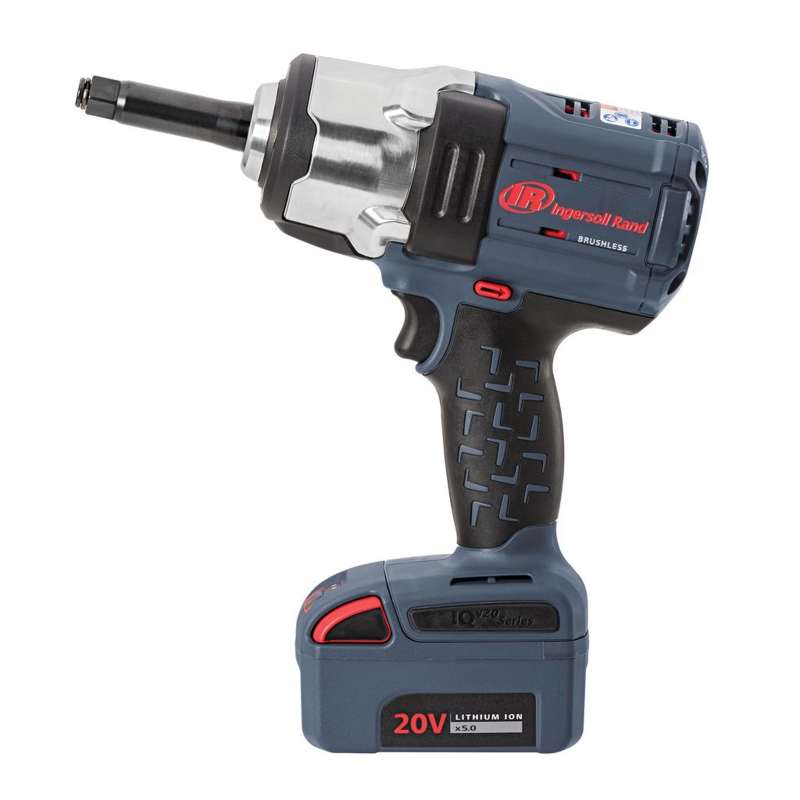

W7252-K22: 2 BL2022 Battery, Tool (2" Ext. Anvil), Charger, Case



Model

Voltage DC

Battery model

Configuration

Drive Size

Drive Type

Nut-Busting Torque (ft-lb)

Nut-Busting Torque (Nm)

Forward Torque (ft-lb)

Forward Torque (Nm)

Hand Tight Forward Torque (ft-lb)

Hand Tight Forward Torque (Nm)

Wrench Tight Forward Torque (ft-lb)

Wrench Tight Forward Torque (Nm)

Half Power Forward Torque (ft-lb)

Half Power Forward Torque (Nm)

Max Reverse Torque (ft-lb)

Max Reverse Torque (Nm)

Blows per minute

Free Speed (RPM)

Hand Tight Free Speed (rpm)

Wrench Tight Free Speed (rpm)

Half Power Free Speed (rpm)

Sound Level dB(A) (EN60745)

Vibration Level m/s² (K)

Weight w/out Battery (lbs)

Weight w/out Battery (kg)

Weight w/ Battery (lbs)

Weight w/ Battery (kg)

Width (in)

Width (mm)

Height w/out Battery (in)

Height w/out Battery (mm)

Height w/ Battery (in)

Height w/ Battery (mm)

Length (in)

Length (mm)

Length w/ battery (in)

Length w/ battery (mm)

W7152

20

BL2010, BL2022

Pistol

1/2 in.

Square, Socket Retainer Ring

1500

2040

1000

1360

4-10

5-14

35-110

47-149

530

720

1000

1360

2450

1900

600

1000

1450

95.7/106.7

17 (3.7)

6.0

2.7

7.6

3.4

3.3

84

9.3

237

11.1

282

8.1

207

8.1

207

W7152P

20

BL2010, BL2022

Pistol

1/2 in.

Square, Pin

1500

2040

1000

1360

4-10

5-14

35-110

47-149

530

720

1000

1360

2450

1900

600

1000

1450

95.7/106.7

17 (3.7)

6.0

2.7

7.6

3.4

3.3

84

9.3

237

11.1

282

8.1

207

8.1

207

W7252

20

BL2010, BL2022

Pistol

1/2 in.

Square, Socket Retainer Ring, Extended

1500

2040

1000

1360

4-10

5-14

35-110

47-149

530

720

1000

1360

2450

1900

600

1000

1450

95.3/106.3

17.2 (2.3)

6.3

2.8

7.9

3.6

3.3

84

9.3

237

11.1

282

10.1

257

10.1

257
