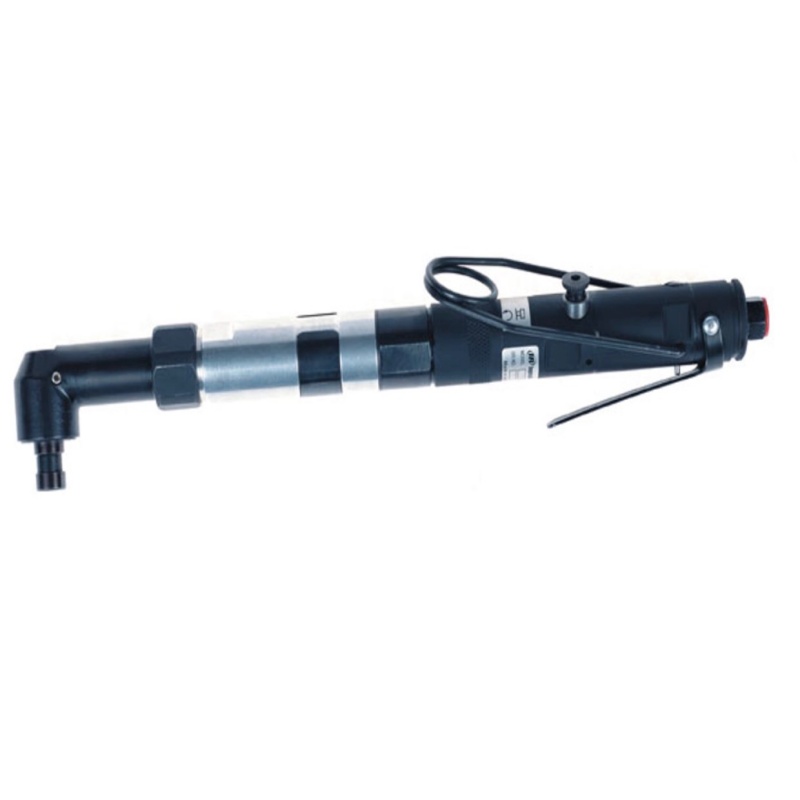

1 Series Handheld Angle Adjustable Shut-Off Air Nutrunner

1 Series Handheld Angle Adjustable Shut-Off Air Nutrunner

The 1 Series Angle Adjustable Shutoff Nutrunner is compact and lightweight with a well-balanced design. The adjustable shutoff clutch reduces air consumption and limits torque reaction.

  • Item No :

    1 Series Handheld Angle Adjustable Shut-Off Air Nutrunner
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    0.8kg

The 1 Series Angle Adjustable Shutoff Nutrunner is compact and lightweight with a well-balanced design. The adjustable shutoff clutch reduces air consumption and limits torque reaction.

Features

Accuracy:



The 1 Series delivers repeatable precision performance you can count on.

High Performance:



The 1 Series nutrunners are fast (up to 2,800 RPM) and powerful (up to 11.5Nm) to help you get the job done.

Reliability:



1 Series Nutrunners are designed to withstand high duty cycle applications and our robust air motors makes it more reliable



Model

Actuation

Torque Range (Nm)

Torque Range (in-lb)

Free Speed (rpm)

Weight (kg)

Weight (lb)

Length (mm)

Length (in)

Angle Head Side to Center (mm)

Angle Head Side to Center (in)

Angle Head Height (mm)

Angle Head Height (in)

Air Inlet

cfm

Spindle Type

Sound (dBA)

1RLN2S3

Lever Start

0.4 - 5.2

3.5 - 46.0

700

0.8

1.7

318

12.5

13.2

0.52

33

1.3

1/8 in. NPT

13

1/4 in. Hex Quick Change

73

1RLN2S5

Lever Start

0.4 - 5.2

3.5 - 46.0

700

0.8

1.7

318

12.5

13.2

0.52

33

1.3

1/8 in. NPT

13

1/4 in. Square

73

1RLM2S5

Lever Start

0.4 - 3.4

3.5 - 30.0

1100

0.8

1.7

318

12.5

13.2

0.52

33

1.3

1/8 in. NPT

13

1/4 in. Square

73

1RLM2S5

Lever Start

0.4 - 3.4

3.5 - 30.0

1100

0.8

1.7

318

12.5

13.2

0.52

33

1.3

1/8 in. NPT

13

1/4 in. Square

73
