Ingersoll Rand

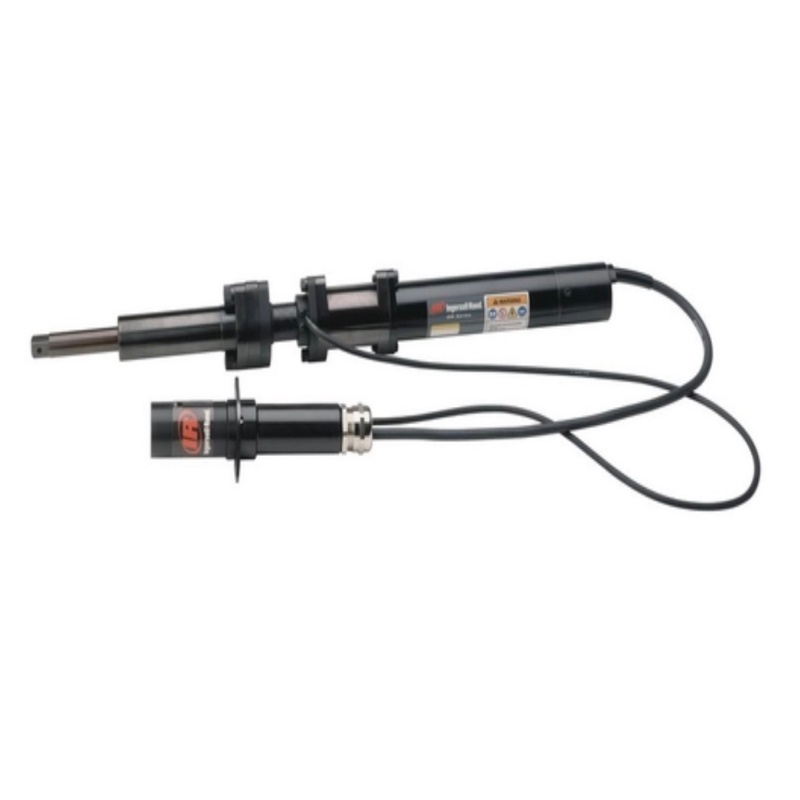

QM5 Series Fixtured Spindles

QM5 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM5 Torque Range 3.5-90Nm

Item No :
QM5 Series Fixtured Spindles
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

QM5 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM5 Torque Range 3.5-90Nm

Features

Accuracy:

The closed loop transducerized control provides high accuracy and traceability for advanced torque control strategies.

Flexibility:

With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.

Reliability:

With a heavy duty gear train and brushless DC motor, the QM3 series is as dependable as it is efficient. And with preventative maintenance alarms, you’ll always know when your tool is in need of a tune up.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	C-C (mm)	Bolt Size	Square Drive (in)
QM5SS035H22S06	3.5-35	30.975-309.75	2.6 - 25.7	35	590	318.6	50	673	26.496062992125985	4.2	9.26	44	M6-M8	3/8
QM5SS035H22S08	3.5-35	30.975-309.75	2.6 - 25.7	35	590	318.6	50	673	26.496062992125985	4.2	9.26	44	M6-M8	1/2
QM5SS035H62S06	3.5-35	30.975-309.75	2.6 - 25.7	35	590	168.6	50	523	20.590551181102363	3.9	8.60	44	M6-M8	3/8
QM5SS035H62S08	3.5-35	30.975-309.75	2.6 - 25.7	35	590	168.6	50	523	20.590551181102363	3.91	8.6	44	M6-M8	1/2
QM5SS035H92S06	3.5-35	30.975-309.75	2.6 - 25.7	35	590	243.6	50	598	23.543307086614174	4.05	8.9	44	M6-M8	3/8
QM5SS035H92S08	3.5-35	30.975-309.75	2.6 - 25.7	35	590	243.6	50	598	23.543307086614174	4.05	8.9	44	M6-M8	1/2
QM5SS055H22S06	5.5-55	48.675-486.75	4.1 - 40.4	55	507	318.6	50	673	26.496062992125985	4.2	9.26	44	M6-M8	3/8
QM5SS055H22S08	5.5-55	48.675-486.75	4.1 - 40.4	55	507	318.6	50	673	26.496062992125985	4.2	9.26	44	M6-M8	1/2
QM5SS055H62S06	5.5-55	48.675-486.75	4.1 - 40.4	55	507	168.6	50	523	20.590551181102363	3.9	8.60	44	M6-M8	3/8
QM5SS055H62S08	5.5-55	48.675-486.75	4.1 - 40.4	55	507	168.6	50	523	20.590551181102363	3.9	8.60	44	M6-M8	1/2
QM5SS055H92S06	5.5-55	48.675-486.75	4.1 - 40.4	55	507	243.6	50	598	23.543307086614174	4.05	8.9	44	M6-M8	3/8
QM5SS055H92S08	5.5-55	48.675-486.75	4.1 - 40.4	55	507	243.6	50	598	23.543307086614174	4.05	8.9	44	M6-M8	1/2
QM5SS090H22S08	9.0-90	79.65-796.5	6.6 - 66	90	280	318.6	50	673	26.496062992125985	3.91	8.6	44	M8-M10	1/2
QM5SS090H92S08	9.0-90	79.65-796.5	6.6 - 66	90	280	243.6	50	598	23.543307086614174	4.19	9	44	M8-M10	1/2
