Ingersoll Rand

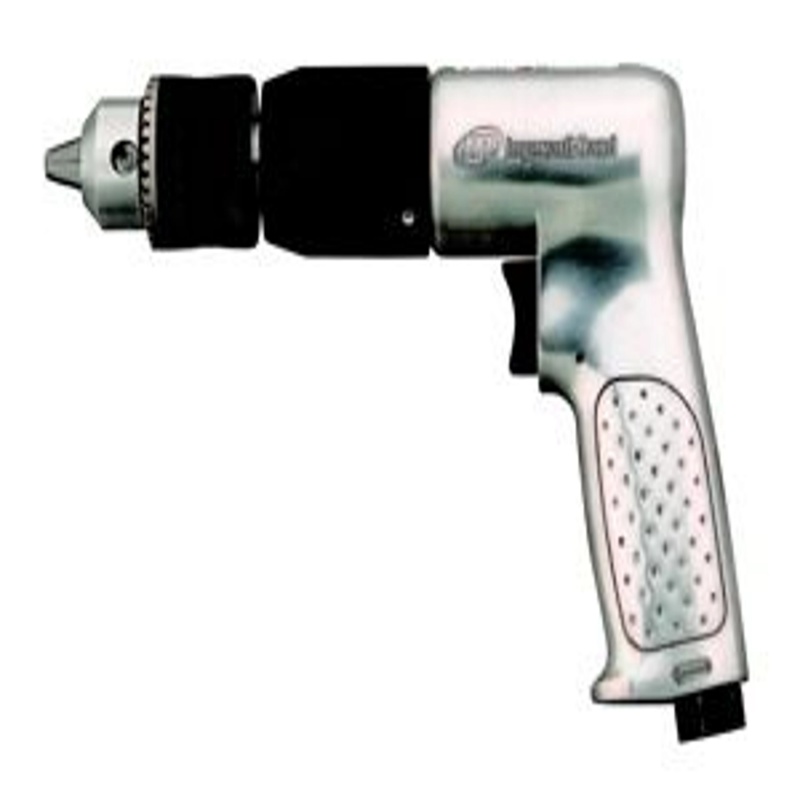

1/2″ Air Drill, Pistol Grip

Engineered for the professional who demands both quality and performance, this 1/2" Heavy-Duty Air Drill combines a traditional pistol-grip design with cutting-edge features. Equipped with a feather trigger, this air drill offers you complete control over variable speed options, ensuring precision in every task. Whether you're drilling through metal, wood, or plastic, the multiple configurations of this drill, including reversible and non-reversible models as well as keyed and keyless chuck options, make it the perfect match for any job.

Item No :
1/2″ Air Drill, Pistol Grip
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Silvery
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

Features

Versatile Design: Offers multiple configurations, including reversible and non-reversible models, and a choice between keyed and keyless chucks to suit various drilling needs.

Variable Speed Control: Features a feather trigger for precise control over drilling speed, enhancing work quality and efficiency.

Durable Construction: Aluminum housing ensures the drill is both lightweight and robust, ready to endure continuous use in demanding work conditions.

Powerful Performance: Delivers 500 RPM and 0.5 hp (0.37 kW) of power, enabling consistent and reliable drilling capabilities.

Professional Reliability: Trusted by industry professionals, the 7803 Series Air Drills offer dependable performance and longevity.

Model	Actuation	Rated Power (hp)	Rated Power (kW)	Chuck Capacity (in)	Chuck Capacity (mm)	Length (in)	Length (mm)	Free Speed (rpm)	Chuck Type	Weight (lb)	Weight (kg)	Sound Pressure/Power dBA	Configuration	Reversible	Average Air Consumption (cfm)	Average Air Consumption (L/min)	Air Consumption @ Load (cfm)	Air Consumption @ Load (L/min)	Vibration m/s² (uncertainty K)	Air Inlet	Min. Hose Size (in)	Min. Hose Size (mm)
7803A	Trigger	0.5	0.38	1/2	13	9	229	500	Standard	3.2	1.45	83.0 / 94.0	Pistol	No	4	113	27	765	< 2.5	1/4 in. NPTF	3/8	10
7803AKC	Trigger	0.5	0.38	1/2	13	8.7	221	500	Keyless	3.3	1.5	83.0 / 94.0	Pistol	No	4	113	27	765	< 2.5	1/4 in. NPTF	3/8	10
7803RA	Trigger	0.5	0.38	1/2	13	8.7	221	500	Standard	3.3	1.5	83.0 / 94.0	Pistol	Yes	4	113	27	765	< 2.5	1/4 in. NPTF	3/8	10
7803RAKC	Trigger	0.5	0.38	1/2	13	8.7	221	500	Keyless	3.3	1.5	83.0 / 94.0	Pistol	Yes	4	113	27	765	< 2.5	1/4 in. NPTF	3/8	10
