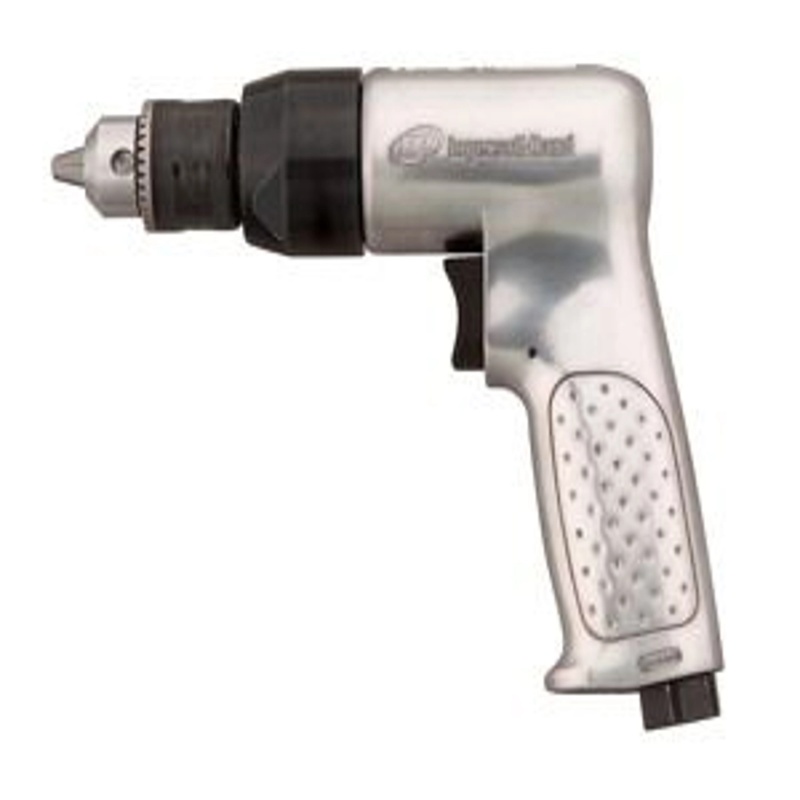

3/8″ Air Drill, Pistol Grip

3/8″ Air Drill, Pistol Grip

The 7802 Series Air Drills are classic pistol-grip powerhouses designed for precision and versatility. Ideal for honing, reaming, or drilling holes, these 3/8” air drills are a professional's choice for a multitude of tasks. Whether you're working with wood, metal, or plastic, the multiple configurations mean you can choose the perfect drill for your needs. With options for both keyed and keyless chucks, this drill series adapts to your preferences. Reliable and easy to control, the 7802 Air Drills combine sturdy construction with variable speed control for unmatched performance.

  • Item No :

    3/8″ Air Drill, Pistol Grip
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    silvery
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    2.6kg

The 7802 Series Air Drills are classic pistol-grip powerhouses designed for precision and versatility. Ideal for honing, reaming, or drilling holes, these 3/8” air drills are a professional's choice for a multitude of tasks. Whether you're working with wood, metal, or plastic, the multiple configurations mean you can choose the perfect drill for your needs. With options for both keyed and keyless chucks, this drill series adapts to your preferences. Reliable and easy to control, the 7802 Air Drills combine sturdy construction with variable speed control for unmatched performance.



Features

Multiple Configurations: Select from keyed chuck for a solid connection or keyless for quick and versatile bit changes, ensuring the right setup for any job.

Reversible & Non-Reversible Models: Choose between a traditional non-reversible model for consistent drilling direction or a reversible version for added flexibility with forward and reverse drilling capabilities.

Sturdy and Reliable: Built with a robust aluminum housing, these air drills are designed to withstand the demands of continuous industrial use.

Variable Speed Trigger: Precisely control your drilling speed with a variable speed throttle, ensuring smooth starts and perfect drilling every time.

High-Speed Performance: Achieve clean and accurate holes with a high operating speed of 2,000 RPM, suitable for a variety of applications.

Powerful Motor: With a 0.50 hp (0.37 kW) motor, these high-speed air drills deliver the power you need for even the most challenging projects.

Ergonomic Pistol Grip: Comfortable design that reduces hand fatigue and enhances user comfort during extended use.



Model Actuation Rated Power (hp) Rated Power (kW) Chuck Capacity (in) Chuck Capacity (mm) Length (in) Length (mm) Free Speed (rpm) Chuck Type Weight (lb) Weight (kg) Sound Pressure/Power dBA Configuration Reversible Average Air Consumption (cfm) Average Air Consumption (L/min) Air Consumption @ Load (cfm) Air Consumption @ Load (L/min) Vibration m/s2 (uncertainty K) Air Inlet Min. Hose Size (in) Min. Hose Size (mm)
7802A Trigger 0.5 0.38 3/8 10 7.8 198 2000 Standard 2.6 1.1 83.0 / 94.0 Pistol No 4 113 26 736 2.8 (uncertainty: 0.7) 1/4 in. NPTF 3/8 10
7802AKC Trigger 0.5 0.38 3/8 10 7.8 198 2000 Keyless 2.6 1.1 83.0 / 94.0 Pistol No 4 113 26 736 2.8 (uncertainty: 0.7) 1/4 in. NPTF 3/8 10
7802RA Trigger 0.5 0.38 3/8 10 7.4 188 2000 Standard 2.9 1.2 82.0 / 93.0 Pistol Yes 4 113 26 736 2.8 (uncertainty: 0.7) 1/4 in. NPTF 3/8 10
7802RAKC Trigger 0.5 0.38 3/8 10 7.4 188 2000 Keyless 2.9 1.2 82.0 / 93.0 Pistol Yes 4 113 26 736 2.8 (uncertainty: 0.7) 1/4 in. NPTF 3/8 10
