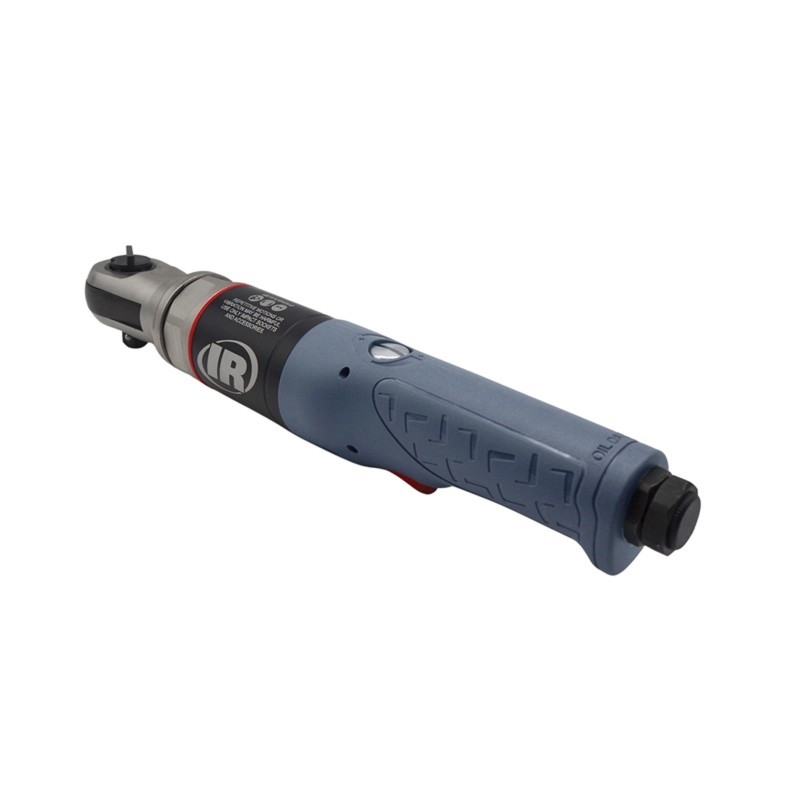

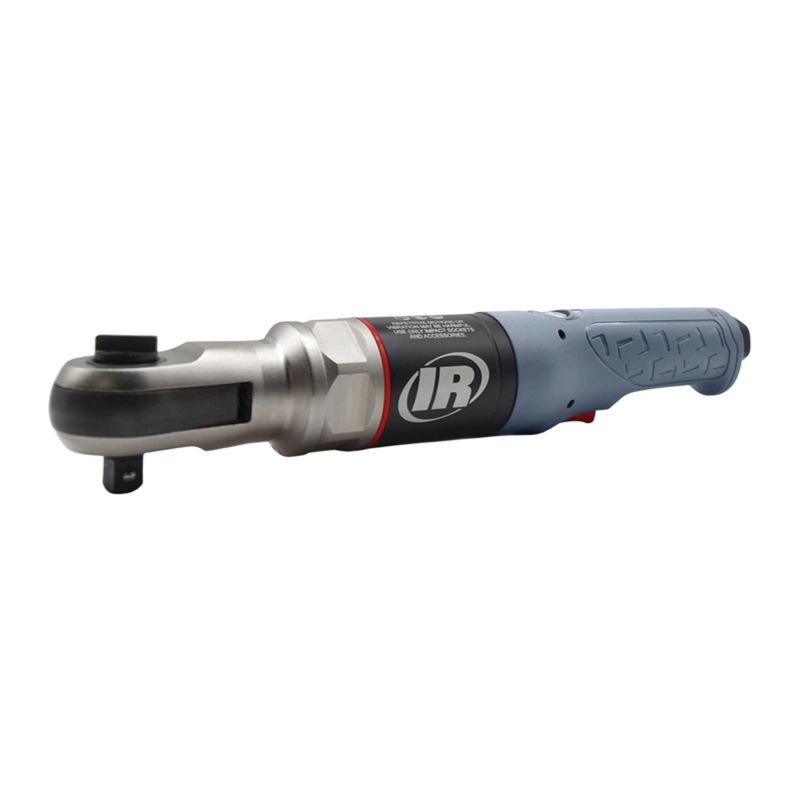

1211MAX Series High Speed Air Ratchet
1211MAX Series High Speed Air Ratchet
1211MAX Series High Speed Air Ratchet

1211MAX Series High Speed Air Ratchet

Run off and run down in record time with the new 1211MAX Series High Speed Ratchet. Available in 3/8or 1/2drive models, each with a flawless form that fits in tight spaces, the 1211MAX is a workshop workhorse, delivering a free speed of 625 RPMs while unloading 80ft-lb of nut busting torque with the help of a reactionless impact mechanism.

  • Item No :

    1211MAX Series High Speed Air Ratchet
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    1.38kg

Run off and run down in record time with the new 1211MAX Series High Speed Ratchet. Available in 3/8or 1/2drive models, each with a flawless form that fits in tight spaces, the 1211MAX is a workshop workhorse, delivering a free speed of 625 RPMs while unloading 80ft-lb of nut busting torque with the help of a reactionless impact mechanism.

Features

Speed: Making rate just became a whole lot easier. At 625 RPMs, the 1211MAX is up to 2x faster than other powered ratchets or hand tools and 3x faster than its previous generation.



High Speed 625 RPM Free Speed lets you get more done, faster

Improved impact mechanism with advanced ratcheting system increases productivity

Compact, straight-line form conveniently fits into tight spaces for enhanced accessibility

Extreme speed meets extreme versatility––this one wrench can be used for multiple jobs, all the way from bolt-on to run off

Torque: The 1211MAX heightens tightening with an innovative twin hammer mechanism that delivers a ferocious 80 ft-lbs. of torque from reactionless impact components.



Unique twin hammer mechanism allows for safer, reliable operation in high torque applications

True ratchet mechanism delivers powerful manual break-loose ability and final tighten capabilities

Protects users even in maximum torque scenarios

Components allow for extreme output with minimal effort

Endurance: With its comfortable construction, premium components, and supreme serviceability, the 1211MAX comes with a low lifetime cost and inspiring ergonomics that keep it useful the whole way through.



Shop-tested design provides a safer environment for workers and those around them

Longer lasting, unique mechanisms were made possible by Ingersoll Rands legacy of innovation

Contoured trigger activator allows for more intuitive use than traditional handle design, while preventing finger slippage from oil, grease, etc.

Made to the highest Ingersoll Rand® measure, components are easily serviceable to extend tool life and value



Model Drive Size (in) Switch Type (actuation) Free Speed (rpm) Recommend Torque Range (ft-lb) Recommend Torque Range (Nm) Max Torque (ft-lb) Max Torque (Nm) NBT Torque (ft-lb) NBT Torque (Nm) Free Speed Sound Level (dBA) Impact Sound Level (dBA) Vibration Level m/s2 (K) Weight (lb) Weight (kg) Length (in) Length (mm) Free Speed Air Consumption (cfm) Free Speed Air Consumption (L/min) Air Inlet NPTF (in) Min Hose Size (in) Min Hose Size (mm)
1211MAX-D3 3/8 Trigger 625 10-60 14-81 66 89 80 108 91.1 90.6 12.7 (2.6) 3.03 1.38 11.89 302 13.7 388 1/4 3/8 10
1211MAX-D4 1/2 Trigger 625 10-60 14-81 66 89 80 108 92.1 90.3 12.7 (2.6) 3.03 1.38 11.89 30 13.7 388 1/4 3/8 10
