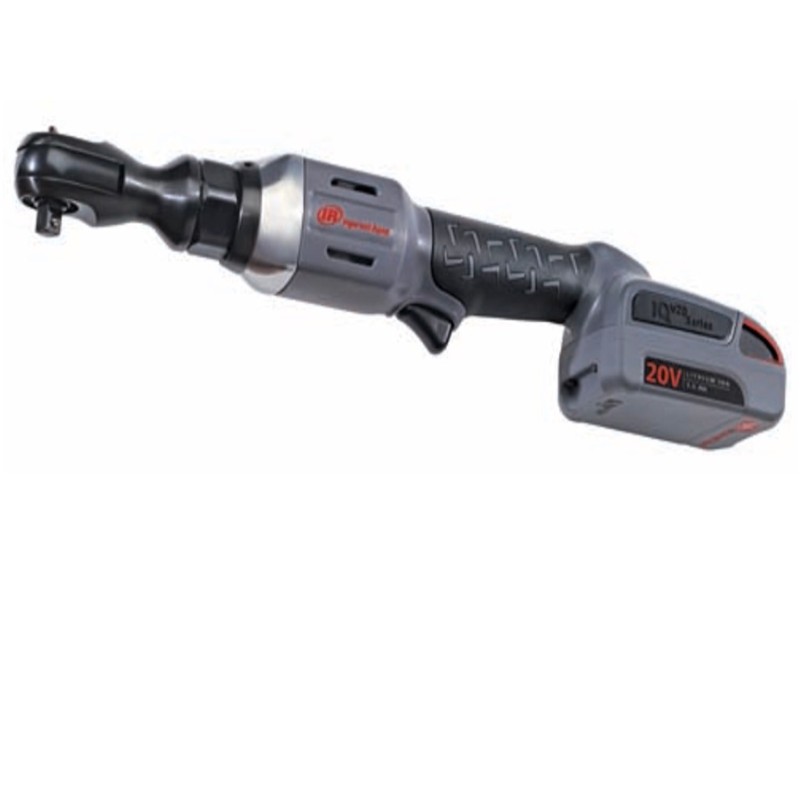

R3130 & R3150 IQV20™ Cordless Ratchets

Ideal for a wide range of applications - from engine repair and under - car work to light industrial maintenance, repair & operations (MRO). Compatible with the IQV® 20 Series battery platform, the 3/8" R3130 and 1/2" R3150 cordless ratchets deliver the convenience of cordless with the power of air.

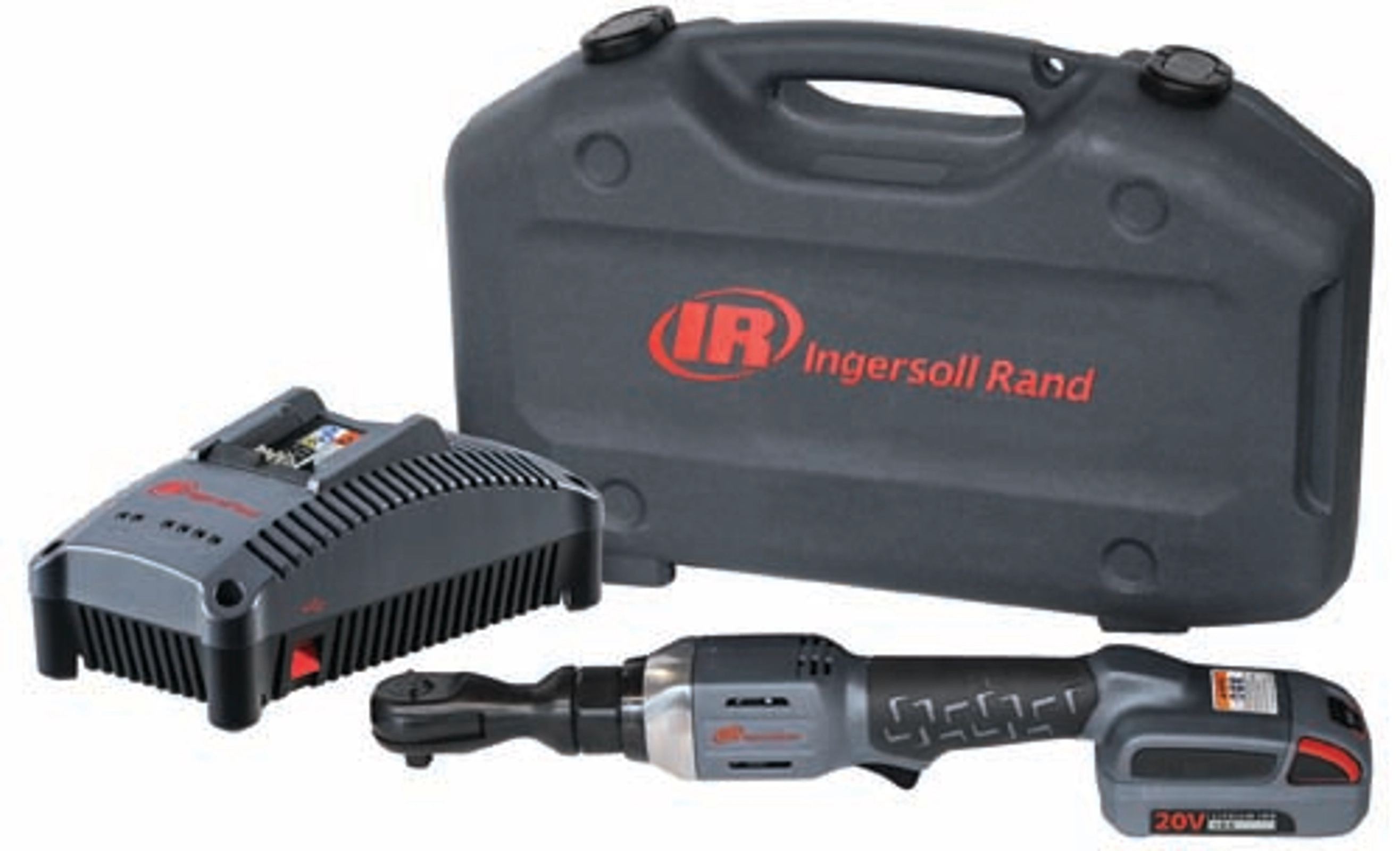

Available in the Following Kits:

R3130-K12: 3/8” Ratchet, (1) BL2012 2.5Ah Li-ion Battery, (1) BC1121 Charger & Case

R3130-K22: 3/8” Ratchet, (2) BL2012 2.5Ah Li-ion Battery, (1) BC1121 Charger & Case

R3150-K12: 1/2” Ratchet, (1) BL2012 2.5Ah Li-ion Battery, (1) BC1121 Charger & Case

R3150-K22: 1/2” Ratchet, (2) BL2012 2.5Ah Li-ion Battery, (1) BC1121 Charger & Case

Item No :
R3130 & R3150 IQV20™ Cordless Ratchets
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

Available in the Following Kits:

R3130-K12: 3/8” Ratchet, (1) BL2012 2.5Ah Li-ion Battery, (1) BC1121 Charger & Case

R3130-K22: 3/8” Ratchet, (2) BL2012 2.5Ah Li-ion Battery, (1) BC1121 Charger & Case

R3150-K12: 1/2” Ratchet, (1) BL2012 2.5Ah Li-ion Battery, (1) BC1121 Charger & Case

R3150-K22: 1/2” Ratchet, (2) BL2012 2.5Ah Li-ion Battery, (1) BC1121 Charger & Case

Features

Performance:

With 54 ft-lbs of maximum torque, the R3130 & R3150 cordless ratchet delivers the same kind of power you expect from an air tool.

Durability:

Patent-pending metal and composite construction makes this tool lightweight, yet strong for easy operation and protection against repeated drops.

Ultra Strong Reinforced Handle engineered to withstand manual ratcheting and bolt breakaway even on the toughest bolts

Versatility:

Battery power means greater portability

Proven engineered head is the same durable ratchet head used in our air-powered ratchet, so it stands up to the toughest professional use

All-metal gear train is robust, durable and optimized for maximum power and efficiency

Variable-speed switch with electronic brake provides maximum control of this cordless ratchet wrench and increases safety-depress trigger, drive stops spinning

Ergonomic handle and comfort grip offers the same reach as an air ratchet

Steel frame is designed to be strong and durable, to protect the interior components of this cordless ratchet wrench

Unique slim-line design provides easy access in tight spots; where you can get your arm, you can get your cordless ratchet wrench

3-year warranty

Model	Voltage	Battery	Drive Size	Actuation	Free Speed	Recomm. Torque Range (ft-lb)	Recomm. Torque Range (Nm)	Max Torque (ft-lb)	Max Torque (Nm)	Sound Pressure/Power dBA	Vibration Level m/s² (K)	Weight (lbs)	Weight (kg)	Weight w/Battery (lbs)	Weight w/Battery (kg)	Length w/ Battery (in)	Length w/ Battery (mm)	Head Width (in)	Head Width (mm)	Height (in)	Height (mm)
R3130	20V	BL2010	3/8	Variable Speed Trigger	225	10-45	14-64	54	73	86 / 97	2.7 (0.7)	3.5	1.6	5	2.3	17.5	445	1.57	40	1.73	44
R3130	20V	BL2005	3/8	Variable Speed Trigger	225	10-45	14-64	54	73	86 / 97	3.2 (1.0)	3.5	1.6	4.4	2	17.5	445	1.57	40	1.73	44
R3150	20V	BL2010	1/2	Variable Speed Trigger	225	10-45	14-64	54	73	86 / 97	2.5 (0.7)	3.5	1.6	5	2.3	17.5	445	1.57	40	1.89	48
R3150	20V	BL2005	1/2	Variable Speed Trigger	225	10-45	14-64	54	73	86 / 97	2.8 (0.7)	3.5	1.6	4.4	2	17.5	445	1.57	40	1.89	48
