Air Impact Wrench
2155QiMAX Series Air Impact Wrench

2155QiMAX Series Air Impact Wrench

The Ingersoll Rand 2145QiMAX 3/4" Impact Wrench delivers incredible performance and industrial-grade durability in an impact wrench. Plus, its efficient air motor reduces air consumption to save you money. Perfect for the most demanding applications, such as truck and bus service, construction and agricultural equipment maintenance, as well as the MRO market.

  • Item No :

    2145QiMAX, 2155QiMAX Series Air Impact Wrench
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

The Ingersoll Rand 2145QiMAX 3/4" Impact Wrench delivers incredible performance and industrial-grade durability in an impact wrench. Plus, its efficient air motor reduces air consumption to save you money. Perfect for the most demanding applications, such as truck and bus service, construction and agricultural equipment maintenance, as well as the MRO market.

Features

Max Power:



1,350 ft-lb maximum reverse torque from a tool that weighs just 7.4 lbs and is compact enough to access tight spaces

Max Durability:



Built to last and designed to withstand tough use in rugged environments; a two-year limited warranty is standard

Max Productivity:



An air motor thats 16% more efficient than its predecessor and an easy-to-clean inlet screen means less downtime, better tool performance, and less money spent on compressed air

Other Features:



Easier access to grease fitting for quicker maintenance and less downtime

The steel hammer case is designed to be strong and durable, to protect the interior components of the air impact wrench

Enhanced socket retention

7-vane Motor delivers added power with less weight

Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency

Feather-touch trigger provides maximum control of this air impact wrench

Anodized end plate for enhanced durability

Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction

Patented one-hand forward/reverse control for easy operation

Optimized airflow for maximized performance when using this pneumatic impact wrench

2-year warranty



Model Configuration Actuation Drive Size Drive Type Forward Torque (ft-lb) Forward Torque (Nm) Max Reverse Torque (ft-lb) Max Reverse Torque (Nm) Blows per minute Free Speed (RPM) Quiet Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power) Weight (lb) Weight (kg) Width (in) Width (mm) Height (in) Height (mm) Length (in) Length (mm) Air Inlet (NPTF/ NPT) Min Hose Size (in) Min Hose Size (mm) Air Consumption @ Load (cfm) Air Consumption @ Load (L/min) Average Air Consumption (cfm) Average Air Consumption (L/min)

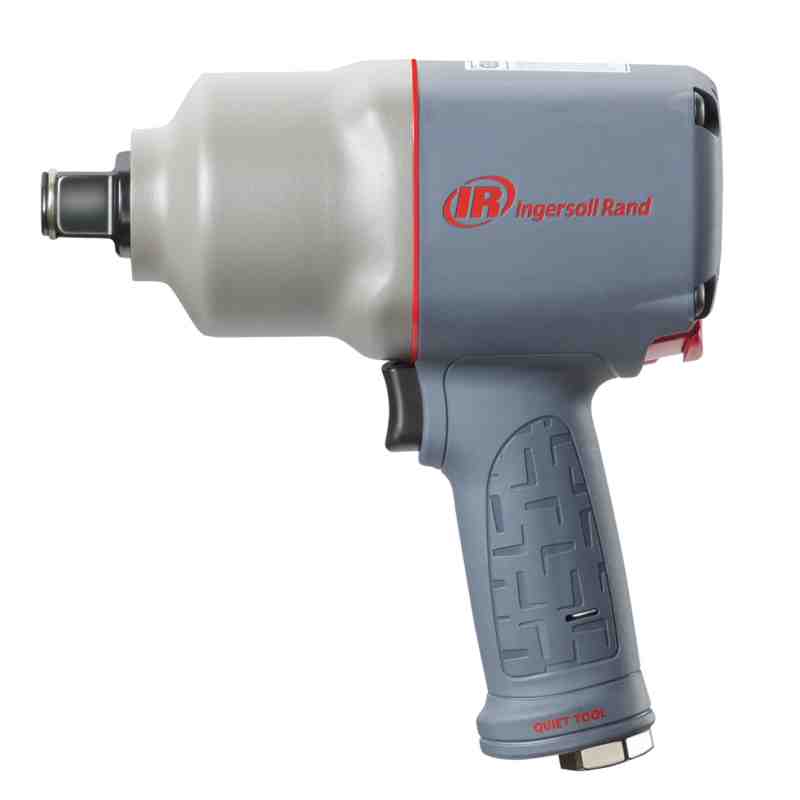

2145QiMAX Pistol Trigger 3/4 in. Square, Hog-Ring and Thru-Hole 900 1220 1350 1830 1150 7000 Quiet 91.1 7.4 3.4 3.3 83.8 8.1 205.7 8.5 217 3/8 in. 1/2 13 32 906 8.5 241
2155QiMAX Pistol Trigger 1 in. Square, Hog-Ring and Thru-Hole 1350 1830 1350 1830 1150 7000 Quiet   7.4 3.4 3.3 83.8 8.1 205.7 8.5 217 3/8 in. 1/2 13 32 906 8.5 241

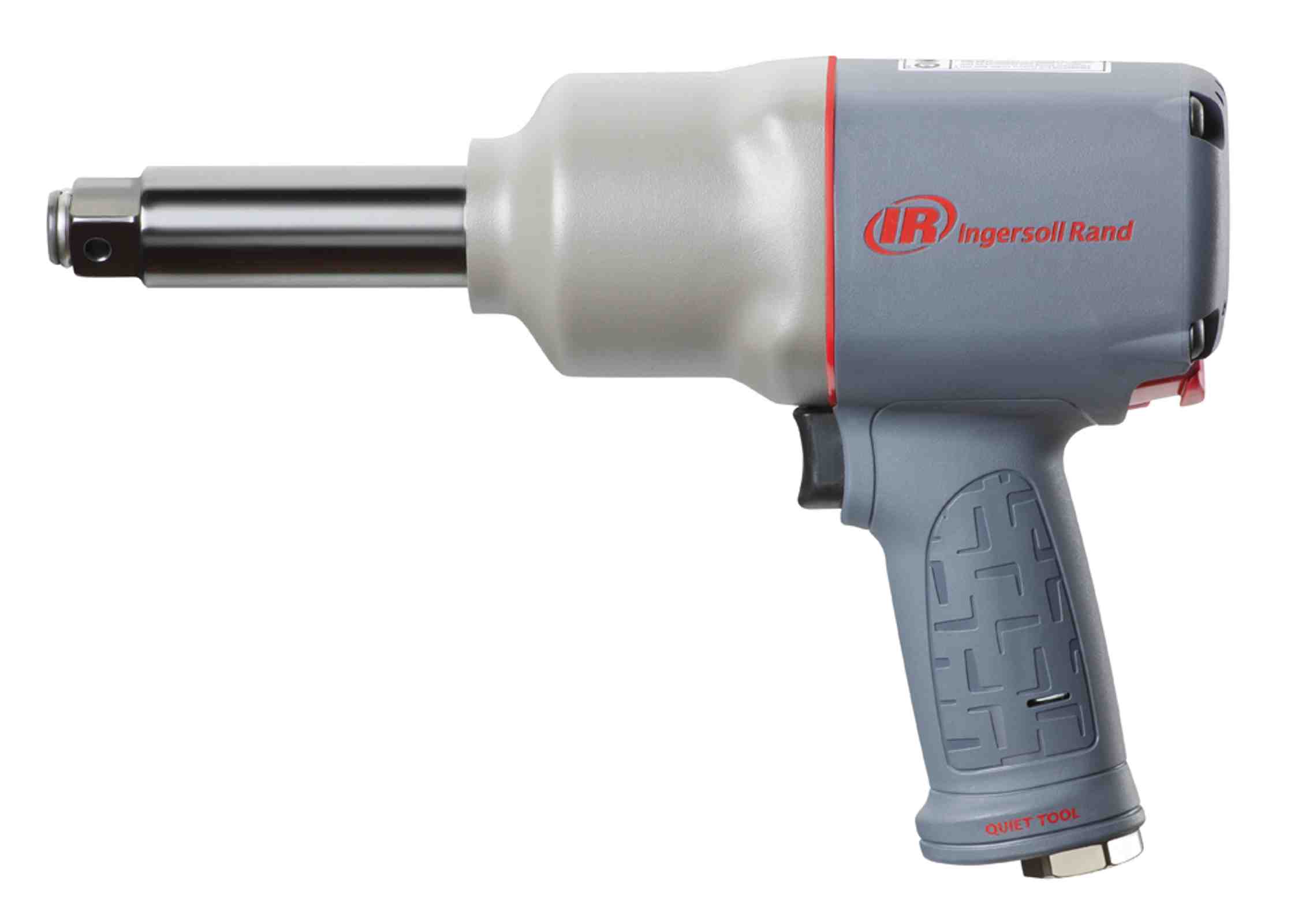

2145QiMAX-3 Pistol Trigger 3/4 in. Square, Hog-Ring and Thru-Hole, 3 in. Extended 900 1220 1350 1830 1150 7000 Quiet 91.1 7.4 3.4 3.3 83.8 8.1 205.7 8.5 217 3/8 in. 1/2 13 32 906 8.5 241
2155QiMAX-6 Pistol Trigger 1 in. Square, Hog-Ring and Thru-Hole, 6 in. Extended 1350 1830 1350 1830 1150 7000 Quiet   7.4 3.4 3.3 83.8 8.1 205.7 8.5 217 3/8 in. 1/2 13 32 906 8.5 241
