Ingersoll Rand

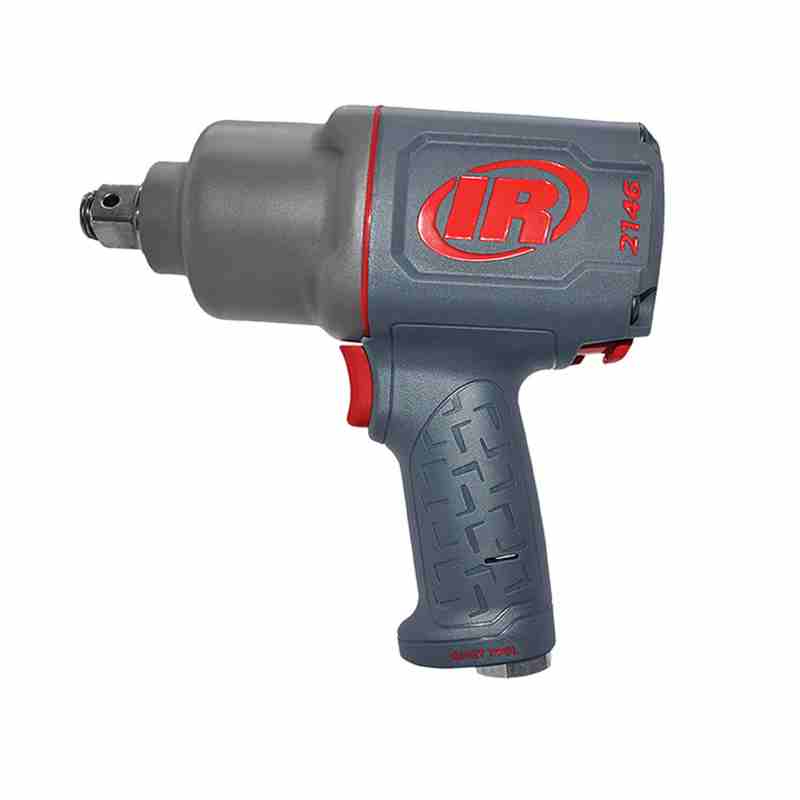

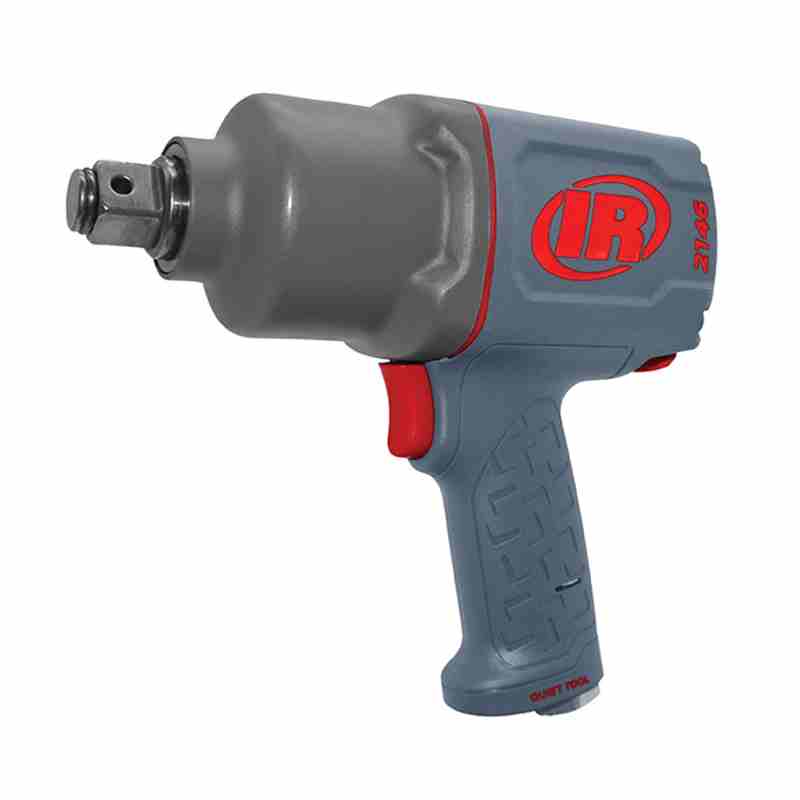

2146MAX Series 3/4″ Air Impact Wrench

Introducing the 2146MAX Series Impact Wrenches – including the 2146Q1MAX, the most powerful 3/4" impact in its class – delivering performance and control in a durable, industrial-grade tool. For the first time, these impact wrenches combine a quiet, efficient motor with an innovative pressure gauge that lets you know it’s delivering optimized airflow and pressure. Together, these features increase productivity, save money, and prolong the life of your valuable tools.

Item No :
2146MAX Series 3/4″ Air Impact Wrench
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

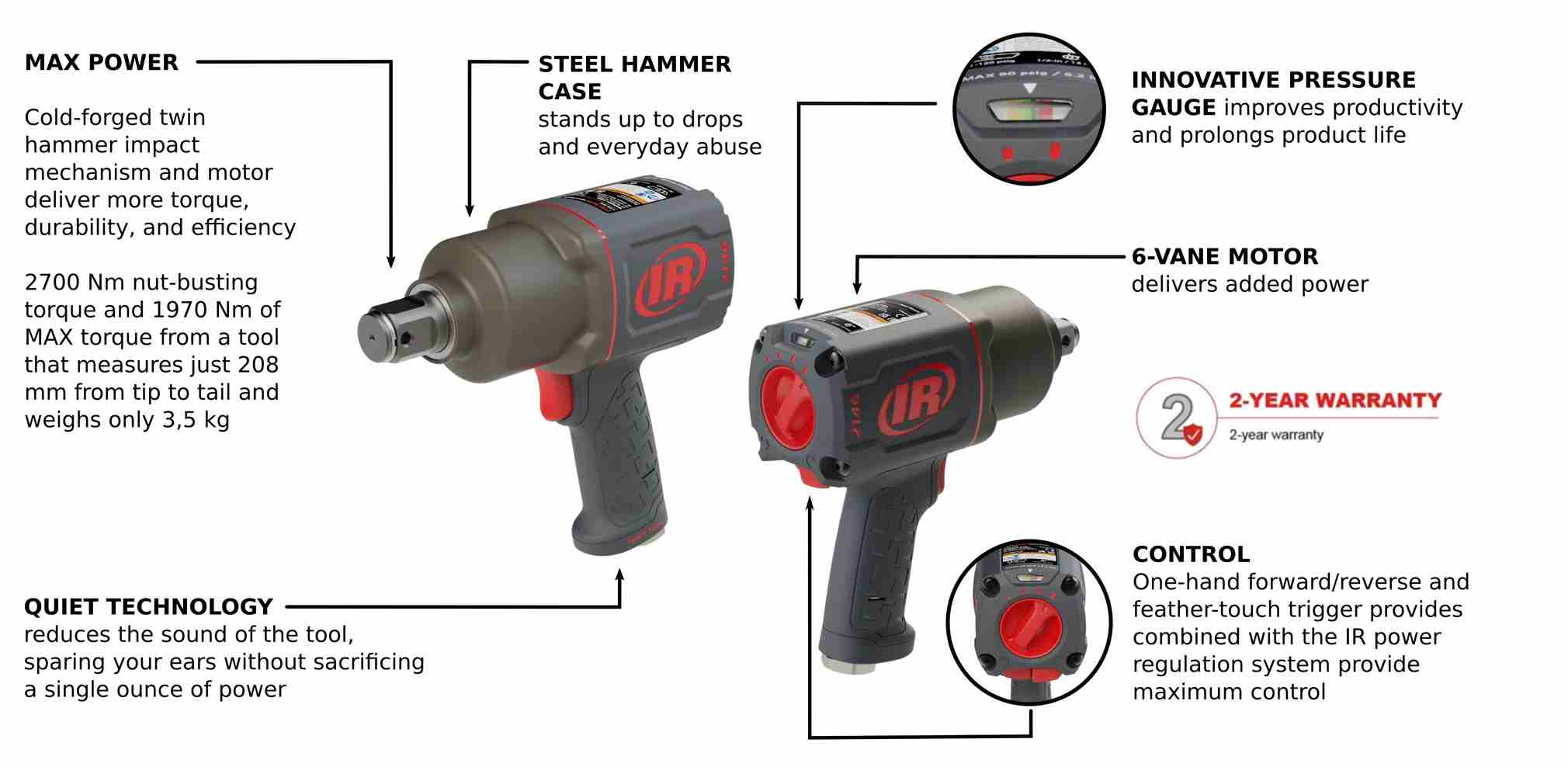

Features

Power

Ability to quickly dial in optimal power settings increases productivity and speed

Cold-forged twin hammer impact mechanism and motor deliver more torque, durability, and efficiency

Optimized airflow for maximized performance when using this pneumatic impact wrench

6-vane motor delivers added power

Durability

Steel hammer case stands up to drops and everyday abuse

Anodized end plate for enhanced durability

Operating the wrench at the optimum pressure level maximizes the life of the tool, saving you money

2-year warranty

Productivity

Ingersoll Rand’s Quiet Technology reduces tool noise without sacrificing power

Innovative power control makes this the one tool for every job

Patented one-hand forward/reverse and feather-touch trigger provides maximum control

Easier access to grease fitting for quicker maintenance and less downtime

Optimized for vehicle repair, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction

Model Number	2146Q1MAX	2146Q1MAX-3	2146Q1MAX-6	2146Q2MAX
Drive Size	3/4"	3/4" with 3" Anvil	3/4" with 6" Anvil	1"
Nut-Busting Torque (rev) ft.-lb.	2000	2000	2000	2000
Maximum Torque (rev) ft.-lb.	1450	1450	1450	1450
Maximum Torque (fwd) ft.-lb.	1300	1300	1300	1300
BPM	1075	1075	1075	1075
Maximum Free Speed (rpm)	5500	5500	5500	5500
Sound	Quiet	Quiet	Quiet	Quiet
Style	Pistol	Pistol	Pistol	Pistol
Drive Type	Square	Square	Square	Square
Retainer Type	Ring/Thru-hole	Ring/Thru-hole	Ring/Thru-hole	Ring/Thru-hole
Product Weight	less socket (lb.)	7.8	8.8	10.1
Product Length	less socket (in.)	8.5	11.5	14.5
Product Width (in.)	3.5	3.5	3.5	3.5
Product Height (in.)	8.2	8.2	8.2	8.2
Air Inlet NPTF (in.)	3/8"	3/8"	3/8"	3/8"
Min Hose Size (in.)	1/2"	1/2"	1/2"	1/2"
Impacting Sound Level dB(A)(ISO15744) - † Pressure (Lp)	94.3	94.3	94.3	94.3
Impacting Sound Level dB(A)(ISO15744) - ‡ Power (Lw)	105.3	105.3	105.3	105.3
Vibration (ISO28927) - Level (m/s2)	8.4	8.4	8.4	8.4
Vibration (ISO28927) - K (m/s2) (uncertainty)	3	3	3	3
Avg Air Consumption (cfm)	14	14	14	14
Air Cons. @ load (cfm)	36	36	36	36
