Ingersoll Rand

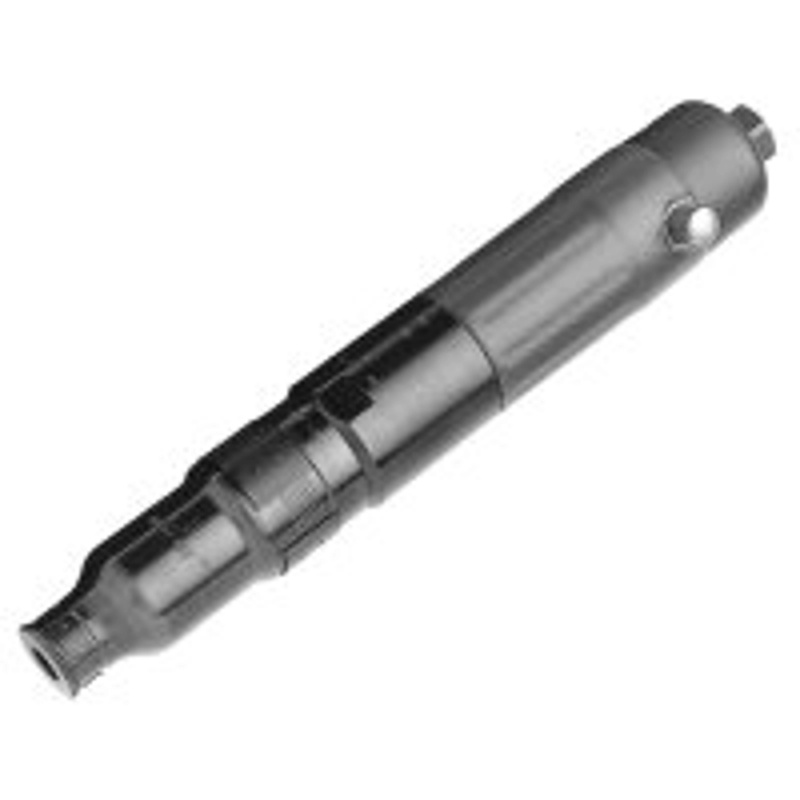

41 Series Inline Adjustable Shut-Off Air Screwdriver

This is your new, go-to screwdriver. The adjustable built-in shut off clutches and simple push button reverse deliver accurate results each time.

Item No :
41 Series Inline Adjustable Shut-Off Air Screwdriver
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.2kg

Inquiry now

Product Details
Model Specifications

This is your new, go-to screwdriver. The adjustable built-in shut off clutches and simple push button reverse deliver accurate results each time.

Features

Durability:

Made to last and tested to 1 million cycles without failure, this tool is designed to handle toughest jobs.

Accuracy:

Expect the same results each time and every time.

Performance:

This screwdriver brings the power you need to get the job done.

Well-Balanced & Lightweight Design:

It’s made with materials that won’t weigh you down. Overall, a tool that is easy to handle for long periods.

Model	Actuation	Torque Range (Nm)	Torque Range (in-lbs)	Free Speed (rpm)	Weight (kg)	Weight (lb.)	Length (mm)	Length (in)	Side to Center Distance (mm)	Side to Center Distance (in)	Spindle Type	Sound Level dB(A) @ Free Speed	Inlet Location	Air Inlet (NPTF/NPT)	CFM
41SA10LPQ4	Lever + Push to Start	1.7-9.0	15 - 80	1000	1.2	2.7	277	10.9	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	30
41SA10PSQ4	Push to Start	1.7 - 9.0	15 - 80	1000	1.2	2.7	277	10.9	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	30
41SA17LPQ4	Lever + Push to Start	1.7-6.8	15 - 60	1700	1.2	2.7	277	10.9	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	30
41SA17PSQ4	Push to Start	1.7 - 6.8	15 - 60	1700	1.2	2.7	277	10.9	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	30
41SA25LPQ4	Lever + Push to Start	1.7-4.5	15 - 40	2500	1.1	2.5	264	10.4	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	30
41SA8LPQ4	Lever + Push to Start	1.7-11.3	15 - 100	800	1.2	2.7	277	10.9	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	30
41SA8PSQ4	Push to Start	1.7 - 11.3	15 - 100	800	1.2	2.7	277	10.9	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	30
41SA10LPQ4-EU	Push to Start	1.7 - 9.0	15 - 80	1000	1.2	2.7	277	10.9	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	30
