Ingersoll Rand

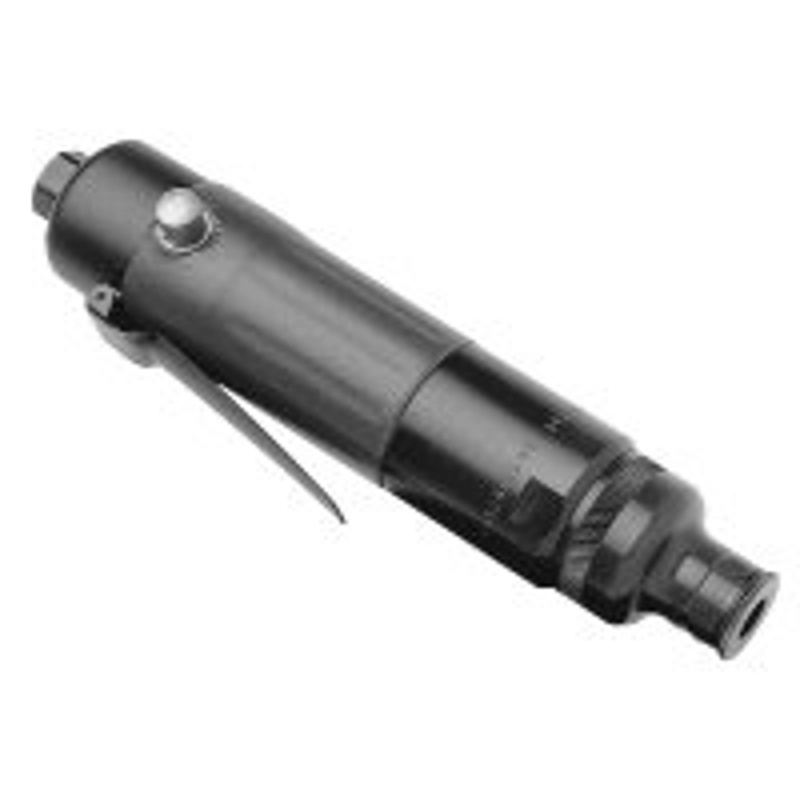

41 Series Inline Direct Drive Air Screwdriver

With features like a stall and a simple push button reverse, this screwdriver is made for soft pull applications in wood and other materials not requiring critical torque control.

Item No :
41 Series Inline Direct Drive Air Screwdriver
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1kg

Inquiry now

Product Details
Model Specifications

With features like a stall and a simple push button reverse, this screwdriver is made for soft pull applications in wood and other materials not requiring critical torque control.

Features

Durability:

The motor runs to stall providing consistent torque repeatability.

Accuracy:

Every day, it delivers dependable results so you can get the job done.

Performance:

For all your jobs, this screwdriver gives you the power the task demands.

Model	Actuation	Torque Range (Nm)	Torque Range (in-lbs)	Free Speed (rpm)	Weight (kg)	Weight (lb.)	Length (mm)	Length (in)	Side to Center Distance (mm)	Side to Center Distance (in)	Spindle Type	Sound Level dB(A) @ Free Speed	Inlet Location	Air Inlet (NPTF/NPT)	CFM
41SD10LTQ4	Lever Start	0 - 10.2	0 - 90	1000	1	2.3	226	8.9	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	20
41SD17LTQ4	Lever Start	0 - 7.3	0 - 65	1700	1	2.3	226	8.9	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	20
41SD25LTQ4	Lever Start	0 - 5.1	0 - 45	2500	0.95	2.1	206	8.1	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	20
41SD8LTQ4	Lever Start	0 - 13.6	0 - 120	800	1	2.3	226	8.9	20	0.8	1/4 in. Hex Quick Change	78	Std	1/4 in. NPT	20
