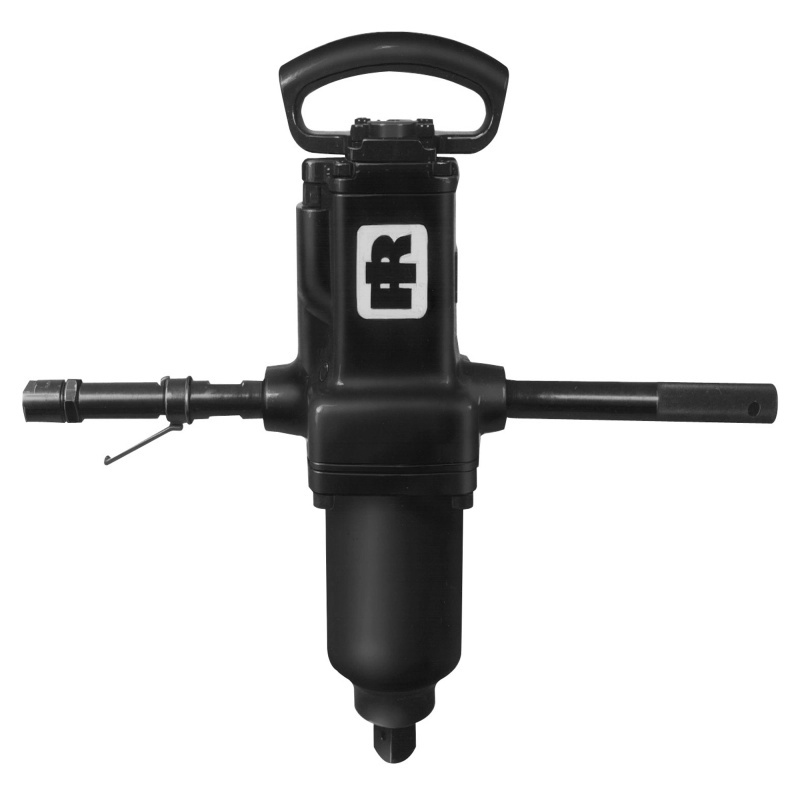

5980 Series Air Impact Wrench, T-Handle

5980 Series Air Impact Wrench, T-Handle

The 5980 series is not only one of the most powerful impacts in the industry, they are also one of the most durable and reliable.

  • Item No :

    5980 Series Air Impact Wrench, T-Handle
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

The 5980 series is not only one of the most powerful impacts in the industry, they are also one of the most durable and reliable.

Features

Durability:



With a steel hammer case, metal housing, and bronze end-plate, this series is corrosion resistant. It will last through just about anything.

Reliability:



Ingersoll Rand products are built to last, and this series is no different. These tools will deliver the right amount of power every time you pull the trigger.

Power:



This series has a high torque output and the planetary gear drive delivers smooth constant speed from the motor, so you never have to worry about power.



Model Configuration Actuation Drive Size Drive Type Forward Torque (ft-lb) Forward Torque (Nm) Max Reverse Torque (ft-lb) Max Reverse Torque (Nm) Blows per minute Free Speed (RPM) Impacting Sound Level dB(A) -- ISO15744 (pressure/power) Vibration Level (ISO28927) (m/s2) Weight (lb) Weight (kg) Length (in) Length (mm) Air Inlet (NPTF/ NPT) Min Hose Size (in) Min Hose Size (mm) Average Air Consumption (cfm) Average Air Consumption (L/min)
5980A1-EU T-Handle Lever 1-1/2 in. Square, Thru-Hole 5500 7460 10000 13560 1000 830 103.1/114.1 20.5 88 39.9 23 584 3/4 in. 1 25 138 3908
5982A1-EU T-Handle Lever 2-1/2 in. Square, Thru-Hole 10000 13560 20000 27120 850 830 102.1/113.1 20.5 120 54.5 25.38 645 3/4 in. 1 25 130 3681
