Ingersoll Rand

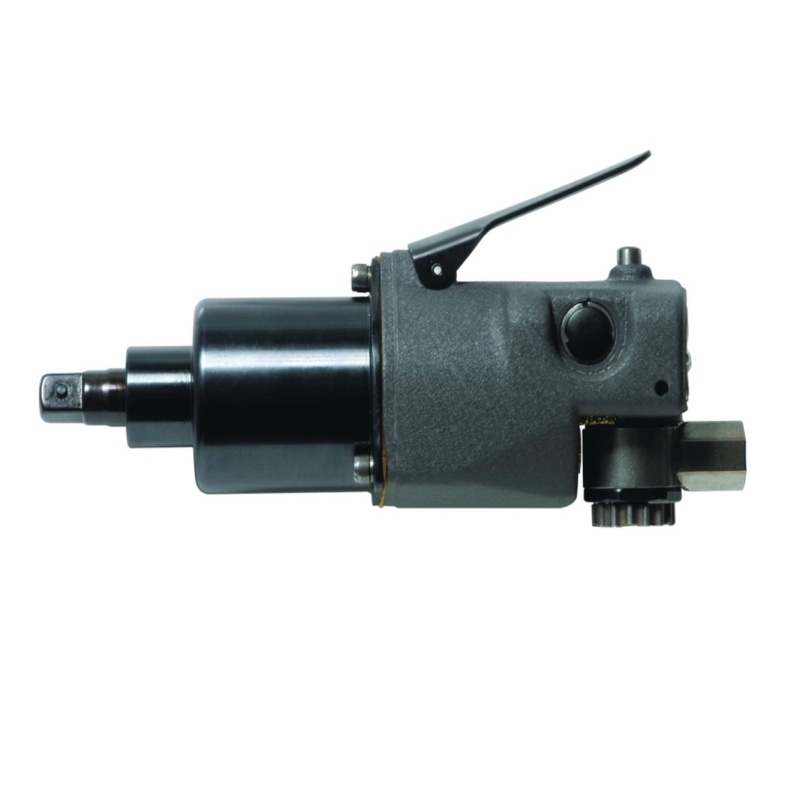

1702 Series Air Impact Wrench

The 1702 Series Impact Wrench’s steel hammer case and metal housing ensure a tough, durable tool that’ll help you breeze through any job without having to worry about your tools giving up.

Item No :
1702 Series Air Impact Wrench
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

The 1702 Series Impact Wrench’s steel hammer case and metal housing ensure a tough, durable tool that’ll help you breeze through any job without having to worry about your tools giving up.

Features

Power

With a jumbo hammer impact mechanism and power regulation, the 1702 Series is powerful and easy to control.

Different Handle Configurations

Featuring both trigger and lever actuation, this impact wrench is available in both pistol and D-handle configurations to make it easier for all applications.

Reliable

No matter how often you use it, the 1702 Series Impact Wrench will deliver the same high-quality output every time.

Model	Configuration	Actuation	Drive Size	Drive Type	Forward Torque (ft-lbs)	Forward Torque (Nm)	Max Reverse Torque (ft-lbs)	Max Reverse Torque (Nm)	Blows per minute	Free Speed (RPM)	Impacting Sound Level dB(A) -- ISO15744 (pressure/power)	Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)	Vibration Level m/s2 (K)	Weight (lbs)	Weight (kg)	Width (in)	Width (mm)	Length (in)	Length (mm)	Air Inlet	Min Hose Size (in)	Min Hose Size (mm)	Air Consumption @ Load (cfm)	Air Consumption @ Load (L/min)	Average Air Consumption (cfm)	Average Air Consumption (L/min)	PSI	Bar
1702P1	Pistol	Trigger	3/8 in.	Square, Pin	100	136	125	170	1500	10000	92.2 / 103.2	96.0 / 107.0	6.5 (1.0)	2.75	1.25	2.8	71	5.5	140	1/4 in.	5/16	8	15	425	N/A	N/A	90	6.2
1702P4	Pistol	Trigger	1/4 in.	Hex, Quick Change, Sleeve	100	136	125	170	1500	10000	92.2 / 103.2	96.0 / 107.0	6.5 (1.0)	2.75	1.25	2.8	71	5.5	140	1/4 in.	5/16	8	15	425	N/A	N/A	90	6.2
1702SB1	Straight	Lever	3/8 in.	Square, Pin	85	115	105	142	1500	10000	86.8 / 97.8	83.6 / 94.6	8.1 (2.2)	2.5	1.12	2	50	5.88	149	1/4 in.	5/16	8	13	368	N/A	N/A	90	6.2
