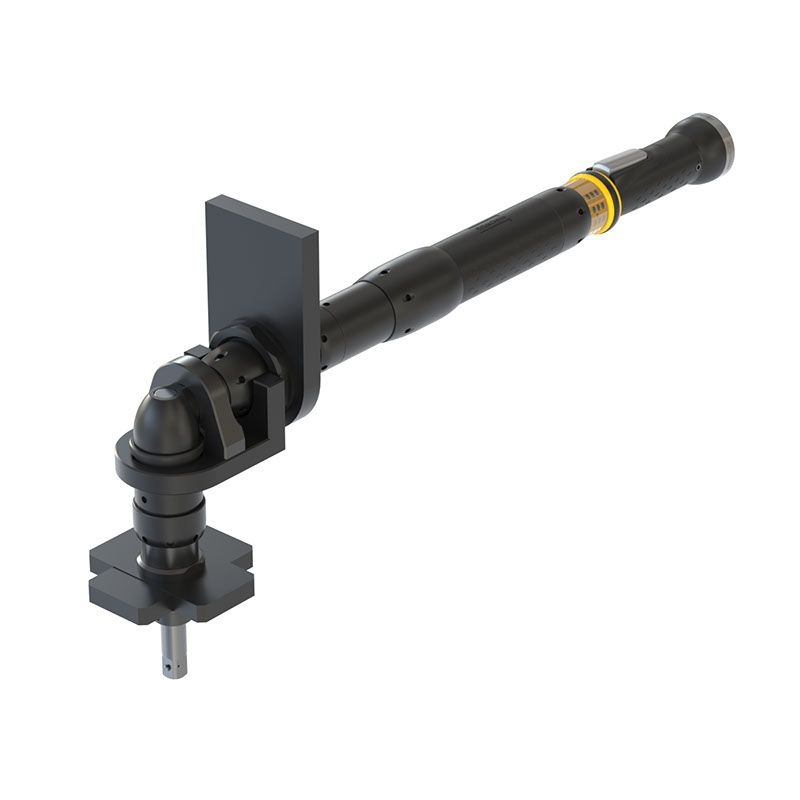

Angle Cable Nutrunner Tensor ST ETV ST81-70-M75-T25

Performance and operator comfort are perfectly balanced in the versatile Angle Cable Nutrunner Tensor ST. The Tensor ST’s combination of speed and superior accuracy ensure high levels of productivity in the most demanding safety-critical applications. Tensor ST tools are fully compatible with the Power Focus 6000 and can be paired with a wide range of accessories for complete control over your tightening.

Item No :
Angle Cable Nutrunner Tensor ST ETV ST81-70-M75-T25
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
6.8kg

Inquiry now

Product Details
Model Specifications

Features

+/-5% over six sigma accuracy

Built-in Transducer

Low-weight with ergonomic grip

Intelligent on-board accessories

Integrated configurable LEDs and speaker

Benefits

Full traceability

Faster process times

Versatility for handheld and fixtured

Superior operator comfort and safety

Operator feedback for improved quality

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
CS distance	40 mm
Height	196 mm
Length	566 mm
Output size	1/2"
Weight	12.7 lb
Certifications, standards & directives
CCC certified	No
CQC certified	No
EAC certified	Yes
EU Standard	EN 61000-6-2:2019\|\|EN 61000-6-4:2019\|\|EN
	62841-1:2015+AC:2015\|\|EN 62841-2-
	2:2014+AC:2015\|\|EN ISO 12100:2010
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU(RoHS)\|\|
EU Legislation	2014/30/EU (EMC)\|\|2015/863/EU (RoHS amendment)
KC certified	Yes
KC ID	R-REI-50A-ETVES61
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2016/1091
UK Standard	BS EN 62841-1:2015\|\|BS EN 62841-2-
	2:2014\|\|BS EN IEC 61000-6-2:2019\|\|BS EN IEC
	61000-6-4:2019\|\|BS EN ISO 12100:2010
WEEE	4 - Large equipment >50cm
Torque
Torque range max	58 ft-lb
Torque range min	15 ft-lb
Torque scatter 3s	≤ 5 %
Design & Functions
Model type	Angle
Output type	Square, Male
Shut-off system	Transducer
Tool family	ST
Power
Motor power	1500 W
Motor voltage type	3 a.c.
Motor voltage	200 V
Battery information
Battery	Li-Io 36 V
Noise & vibrations
Sound pressure	<70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	< 2.5 m/s²
Speed
Speed range max	790 r/min
