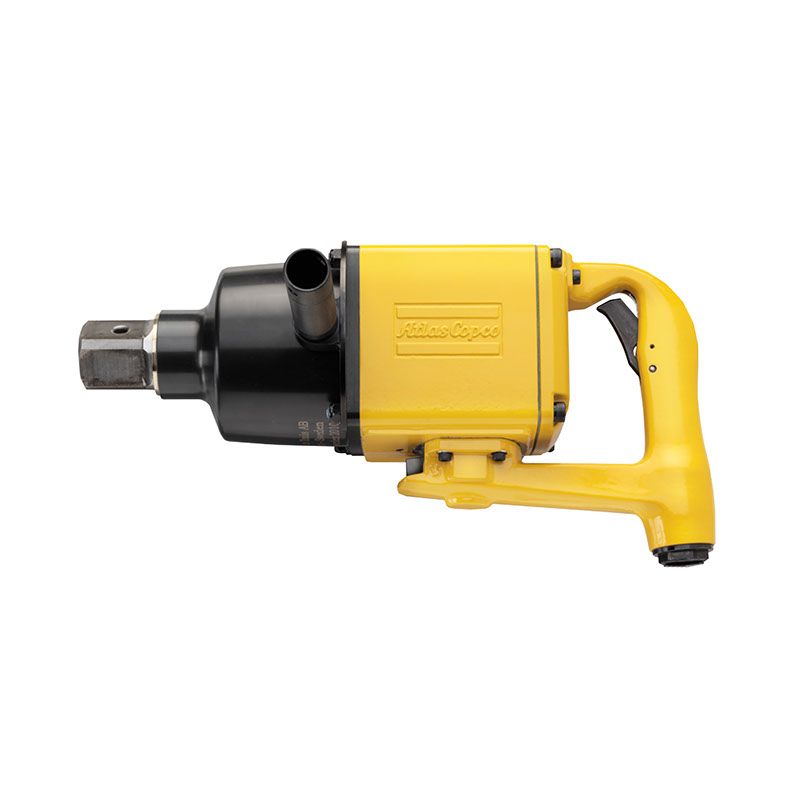

Straight Impact Wrench LMS non shut-off impact wrench LMS88 GIR38 8434 1880 00

Straight Impact Wrench LMS is designed to provide dependability and a long, trouble-free service life in the toughest conditions. The LMS is a non shut-off impact wrench with extraordinary power to weight qualities and virtually no reaction force during tightening, typically used where fast tightening or disassembly is needed. Its innovative and unique Grease Retaining System ensures maximum tool performance with long service intervals.

Item No :
Straight Impact Wrench LMS
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
yellow&black
Shipping Port :
Xiamen
Lead Time :
15 days
Weight :
33ib

Inquiry now

Product Details
Model Specifications

Features

High power-to-weight ratio

Powerful impact mechanism

Durable metal housings

Soft start throttle

GRS – Grease Retaining System

Benefits

Extremely fast tightening and loosening

Longer service life

Reduced risk of vibration related injuries

Greater operator comfort

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
CS distance	63.5 mm
Length	381 mm
Air inlet thread	1/2 in
Bolt size max	42 mm
Bolt size min	30mm
Rec. hose size	16 mm
Square drive size	1 1/2 in
Output size	1-1/2"
Weight	33 lb
Certifications, standards & directives
EAC certified	Yes
EU Legislation	2006/42/EC
EU Standard	EN ISO 11148-6:2012
UK Regulations	S.I. 2008/1597
UK Standard	EN ISO 11148-6:2012
Torque
Max torque	7370 ft-lb
Torque range max	4054 ft-lb
Torque range min	737 ft-lb
Torque scatter	≤ 7.5 %
Design & Functions
Model type	Straight
Output type	Square, Male
Shut-off	No
Impacts per min	540 per-min
Spline/Mounting	1
Tool family	ES
SCIP	68c2f2d6-c770-45dc-b4e1-5cfc88785683
Power
Motor power	1500 W
Motor voltage type	3 a.c.
Motor voltage	200 V
Battery information
Battery	Li-Io 36 V
Type of battery	1 Li-ion
Weight incl. Battery	9.7 lb
Noise & vibrations
Sound pressure	111 dB(A)
Sound standard	100 dB(A)
Vibration standard	ISO28927-2
Vibration uncertainty	2 m/s
Vibration value	4.8 m/s
Speed
Speed range max	3800 r/min
Air information
Air consumption	69.4 cfm
Max working pressure	100 psi
