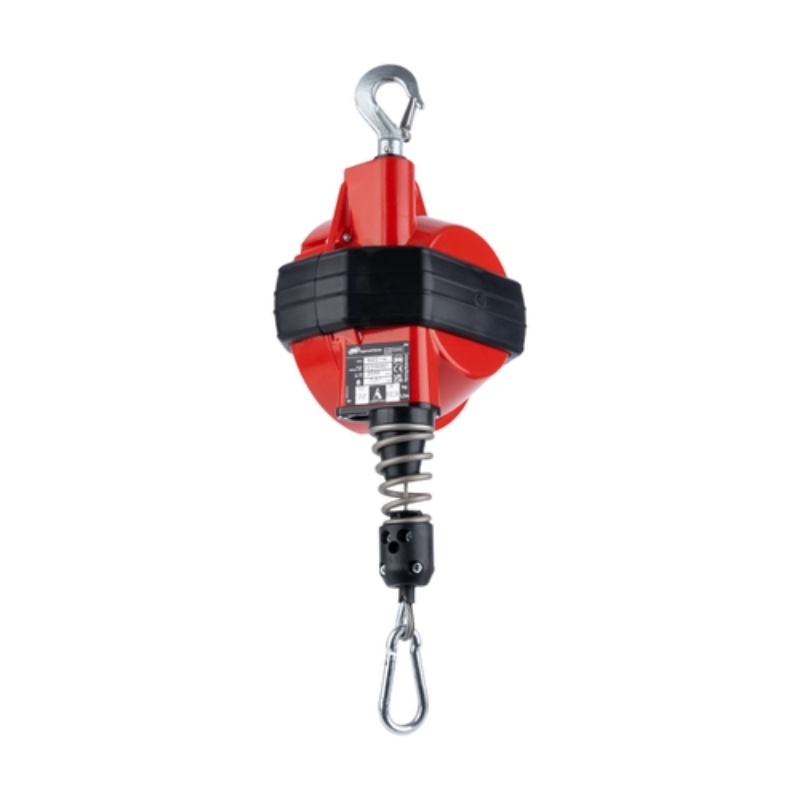

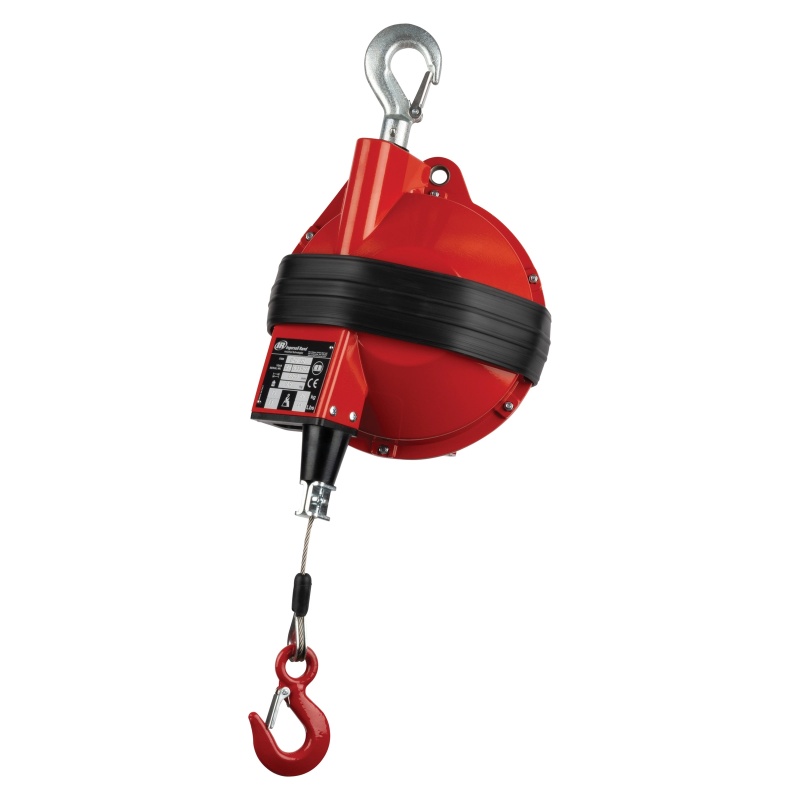

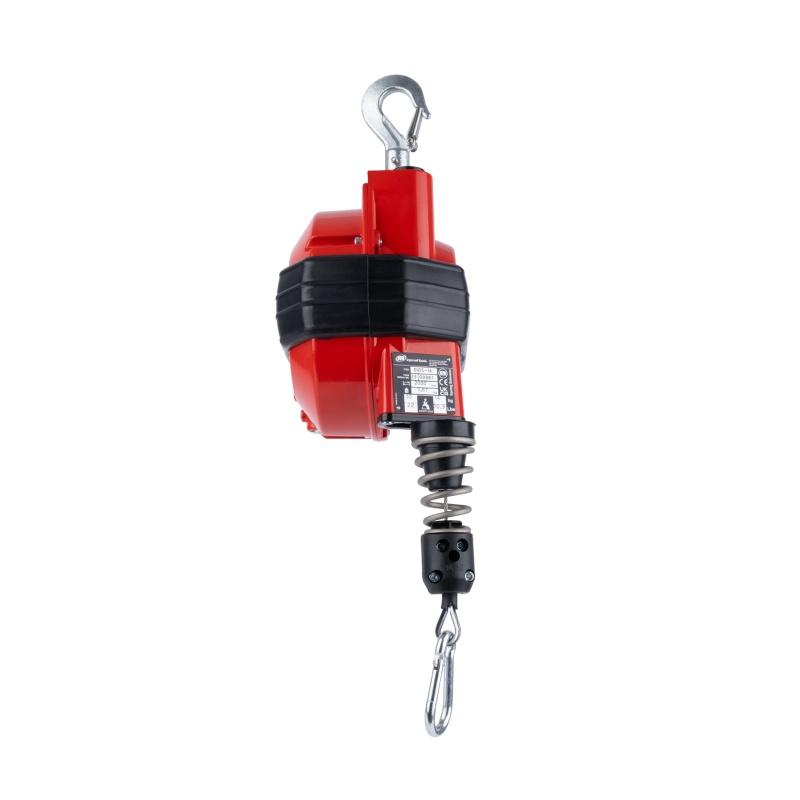

BIDS, BHD Series Intermediate-Duty Spring Balancers

BIDS, BHD Series Intermediate-Duty Spring Balancers

The Spring Balancer line from Ingersoll Rand® has been upgraded with new adjustments that take its fine-tuning capabilities and safety innovations up a notch and its tight space potential down to even smaller spots. Designed with greater durability and a higher weight capacity, these newly improved accessories will put even more spring, safety, and strength in your step.

Item No :
BIDS, BHD Series Intermediate-Duty Spring Balancers
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Red
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
5kg

Inquiry now

Product Details
Model Specifications

Features

SAFETY:

Safety device against load dropping due to the spring breakage (<3 kg)

Locking device to block the load at any height

Upper rotary suspension with safety hook

ERGONOMICS:

8.8 to 55 lbs capacity for BIDS models and 22 to 143 lbs capacity for BHD models

Adjustable stroke limiting device

Gravity-free suspension capability

DURABILITY:

Stainless-steel cable

Cable guide in anti-friction material

Ribbed and sealed monobloc construction in aluminum alloy

Model	Capacity lb (kg)	Weight lb (kg)	Lift ft (mm)	Housing Material	Cable Material
BIDS-7	8.8 - 15.4 (4 - 7)	5 (2.3)	6.5 (2000)	Aluminum	Stainless Steel
BIDS-10	15.4 - 22 (7 - 10)	5.5 (2.5)	6.5 (2000)	Aluminum	Stainless Steel
BIDS-14	22 - 30.8 (10 - 14)	5.5 (2.5)	6.5 (2000)	Aluminum	Stainless Steel
BIDS-18	30.8 - 39.6 (14 - 18)	6.5 (2.9)	6.5 (2000)	Aluminum	Stainless Steel
BIDS-22	39.6 - 48.4 (18 - 22)	6.5 (2.9)	6.5 (2000)	Aluminum	Stainless Steel
BIDS-26	48.4 - 55 (22 - 25)	6.5 (2.9)	6.5 (2000)	Aluminum	Stainless Steel
BHD-15	22 - 33 (10 - 15)	22.7 (10.3)	6.5 (2000)	Aluminum	Stainless Steel
BHD-20	33 - 44 (15 - 20)	23.4 (10.6)	6.5 (2000)	Aluminum	Stainless Steel
BHD-25	44 - 55 (20 - 25)	24.7 (11.2)	6.5 (2000)	Aluminum	Stainless Steel
BHD-30	55 - 66 (25 - 30)	25.4 (11.5)	6.5 (2000)	Aluminum	Stainless Steel
BHD-35	66 - 77 (30 - 35)	26 (11.8)	6.5 (2000)	Aluminum	Stainless Steel
BHD-45	77 - 99 (35 - 45)	27.3 (12.4)	6.5 (2000)	Aluminum	Stainless Steel
BHD-55	99 - 121 (45 - 55)	27.6 (12.5)	6.5 (2000)	Aluminum	Stainless Steel
BHD-65	121 - 143 (55 - 65)	30 (13.6)	6.5 (2000)	Aluminum	Stainless Steel
