QC Series Non-Programmable 20V Cordless Clutch Screwdrivers
QC Series Non-Programmable 20V Cordless Clutch Screwdrivers

QC Series Non-Programmable 20V Cordless Clutch Screwdrivers

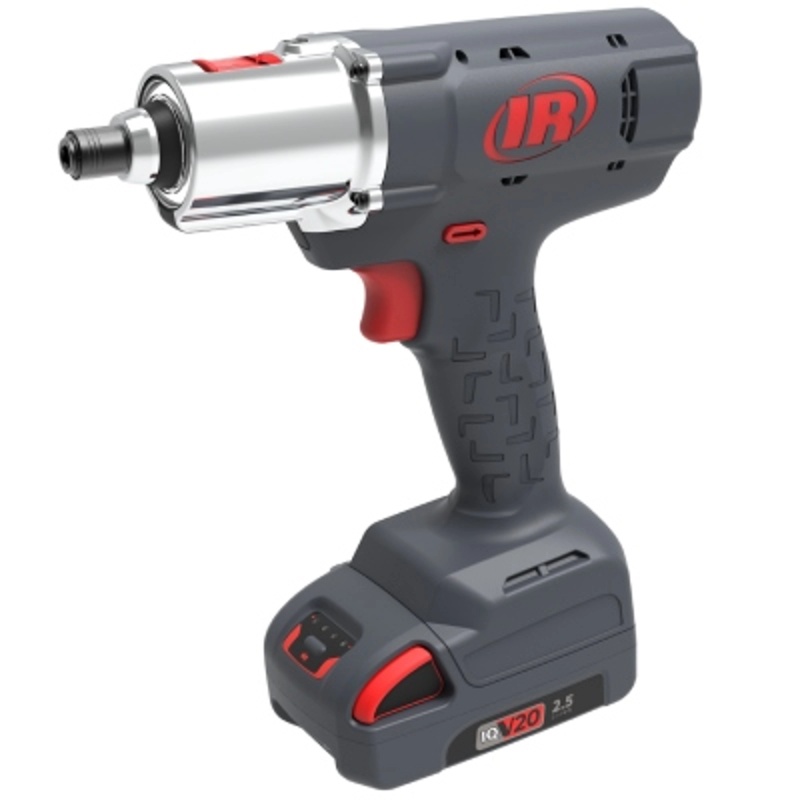

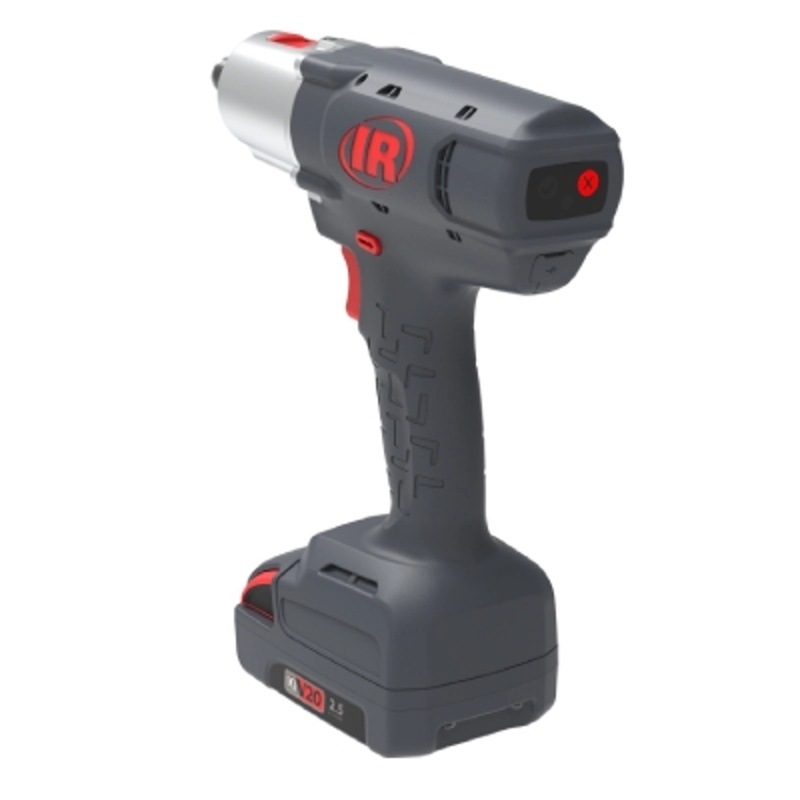

QC Series Clutch Tools are engineered for robust performance, withstanding over 500k cycles in demanding assembly environments and delivering precision in every fastening application. Designed with user comfort in mind, the balanced ergonomic build helps reduce fatigue, while the dual-speed non-contact trigger provides smooth, efficient operation. Experience the perfect blend of durability, simplicity, and precision with the QC Series Clutch Tools.

  • Item No :

    QC Series Non-Programmable 20V Cordless Clutch Screwdrivers
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    2.3kg

QC Series Clutch Tools are engineered for robust performance, withstanding over 500k cycles in demanding assembly environments and delivering precision in every fastening application. Designed with user comfort in mind, the balanced ergonomic build helps reduce fatigue, while the dual-speed non-contact trigger provides smooth, efficient operation. Experience the perfect blend of durability, simplicity, and precision with the QC Series Clutch Tools.

Features

Precise



Thanks to an auto shutoff clutch, QC Series Clutch tools achieve Cmk >1.67 at +/- 10% accuracy, providing higher repeatability and consistent output.

The QC Series Clutch Tool is equipped with a lockable, tamper-proof clutch that delivers up to 12 Nm of torque for various applications.

Simple



The multi-color 360º status beam LED ring light illuminates the work area and provides clear feedback to the user on the workpiece. Combined with the Cycle Status Indicator, which shows pass/fail and helps users verify their work quickly, it helps minimize defects and improve overall quality.

QC Series Clutch Tools are compatible with

Durable



Designed to last more than 500k cycles in a high-speed assembly environment, QC Series Clutch Tools deliver reliable performance in almost any application.

Available in a kit



QCN2P02Q4-K2: Includes 2 Nm Pistol, (2) BL2012 2.5 Ah Batteries and a Charger

QCN2P04Q4-K2: Includes 4 Nm Pistol, (2) BL2012 2.5 Ah Batteries and a Charger

QCN2P08Q4-K2: Includes 8 Nm Pistol, (2) BL2012 2.5 Ah Batteries and a Charger

QCN2P12Q4-K2: Includes 12 Nm Pistol, (2) BL2012 2.5 Ah Batteries and a Charger



Model Tool Configuration Drive Torque Range (Nm) Speed (rpm) Weight lbs (kg) Length in (mm) Height in (mm) Setup
QCN2P02Q4 Pistol 1/4" Hex 0.5 - 2 350 - 1160 2.3 (0.45) 8.3 (210) 8.2 (208.6) Non-programmable
QCN2P04Q4 Pistol 1/4" Hex 1 - 4 350 - 1160 2.3 (0.45) 8.3 (210) 8.2 (208.6) Non-programmable
QCN2P08Q4 Pistol 1/4" Hex 3 - 8 140 - 700 2.3 (0.45) 8.3 (210) 8.2 (208.6) Non-programmable
QCN2P12Q4 Pistol 1/4" Hex 5 - 12 140 - 700 2.3 (0.45) 8.3 (210) 8.2 (208.6) Non-programmable
