Compact QE Fixtured Series

Compact QE Fixtured Series

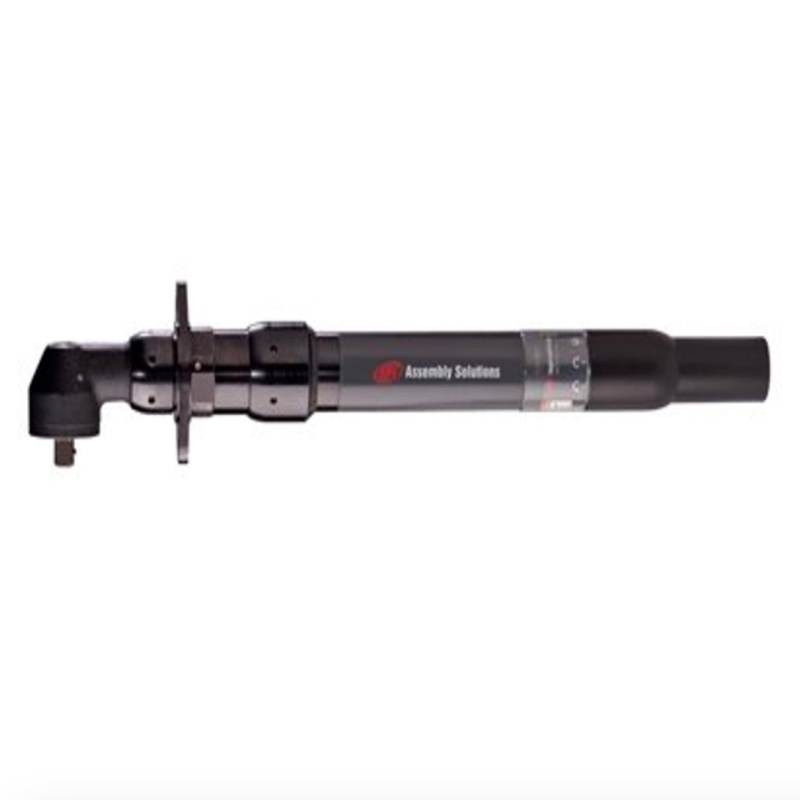

Compact, lightweight and high-speed, the QE Fixtured Angle wrenches provide superior accuracy and durability to meet your fastening requirements. They are easily mountable to a fixture or reaction arm, and have a torque range from 0.3 Nm to 400 Nm.

  • Item No :

    Compact QE Fixtured Series
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

Compact, lightweight and high-speed, the QE Fixtured Angle wrenches provide superior accuracy and durability to meet your fastening requirements. They are easily mountable to a fixture or reaction arm, and have a torque range from 0.3 Nm to 400 Nm.

Features

Accurate:



The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control and Angle strategies.

Efficient:



Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE8 Series allows you to work efficiently with minimum distraction.

Reliable:



The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure youll always know when its in need of a tune up.

Versatile:



With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.



Model Torque Range (Nm) Torque Range (in-lbs) Torque Range (ft-lbs) Max Torque (Nm) Actuation Configuration Free Speed (rpm) Spindle Length (mm) Float (mm) Overall Length (mm) Length (in) Weight (kg) Weight (lbs) Drive (size/style)
QE4AC013BA2S06 2.6 - 10.4 23.0 - 92.1 1.9-7.7 13 Controller Remote Start Angle 1200 N/A N/A 383 15.078740157480317 1.3 2.87 3/8 in. Square
QE4AC020BA2S06 4.0 - 16.0 35.4 - 141.61 3.0 - 11.8 20 Controller Remote Start Angle 820 N/A N/A 383 15.078740157480317 1.3 2.87 3/8 in. square
QE4AC027BA4S06 5.4 - 21.6 47.8 - 191.2 4.0 - 15.9 27 Controller Remote Start Angle 600 N/A N/A 387 15.236220472440946 1.3 2.87 3/8 in. square
QE4AC034BA4S06 6.8 - 27.2 60.2 - 240.7 5.0 - 20.1 34 Controller Remote Start Angle 470 N/A N/A 387 15.236220472440946 1.3 2.87 3/8 in. square
QE6AC030FA4S06 6.0 - 24.0 53.1 - 212.4 4.4 - 17.7 30 Controller Remote Start Angle 1230 N/A N/A 429.4 16.905511811023622 1.9 4.19 3/8 in. square
QE6AC040FA4S06 8.0 - 32.0 70.8 - 283.2 5.9 - 23.6 40 Controller Remote Start Angle 910 N/A N/A 429.4 16.905511811023622 1.9 4.19 3/8 in. square
QE6AC055FA5S08 11.0 - 44.0 97.4 - 389.4 8.1 - 32.5 55 Controller Remote Start Angle 650 N/A N/A 431.3 16.980314960629922 1.9 4.19 1/2 in. Square
QE6AC080FA5S08 16.0 - 64.0 141.6-566.4 11.8 - 47.2 80 Controller Remote Start Angle 440 N/A N/A 431.3 16.980314960629922 1.9 4.19 1/2 in. Square
QE8AC065FA6S08 13.0 - 52.0 115.1 - 460.2 9.6 - 38.4 65 Controller Remote Start Angle 1200 N/A N/A 520 20.472440944881892 2.9 6.39 1/2 in. Square
QE8AC070FA6S08 14.0 - 56.0 123.9 - 495.6 10.3 - 41.3 70 Controller Remote Start Angle 1100 N/A N/A 520 20.472440944881892 2.9 6.39 1/2 in. Square
QE8AC090FA6S08 18.0 - 72.0 159.3-637.3 13.3 - 53.1 90 Controller Remote Start Angle 850 N/A N/A 520 20.472440944881892 2.9 6.39 1/2 in. Square
