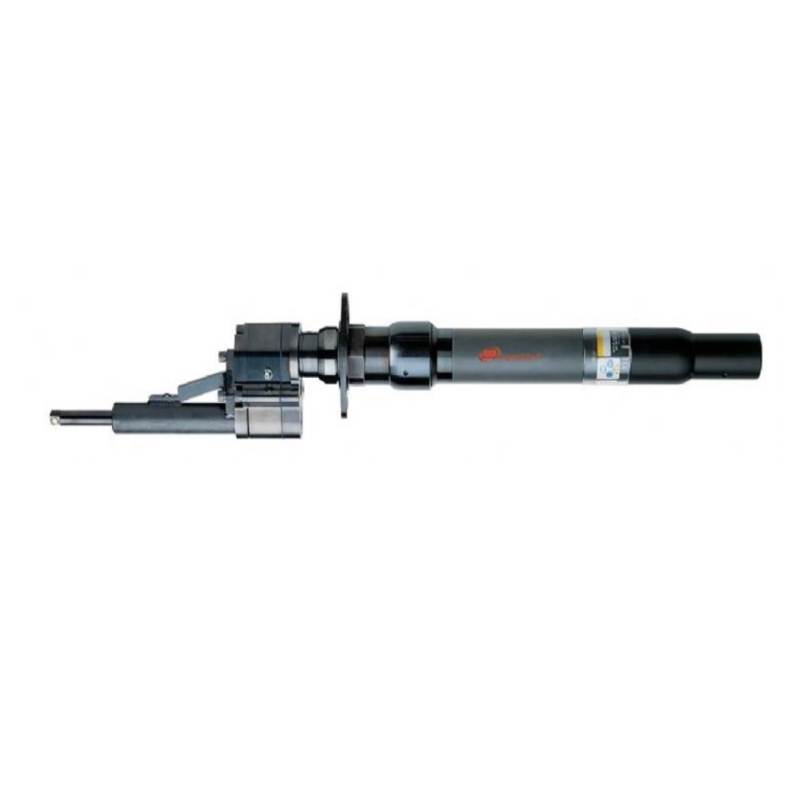

Compact QE Fixtured Offset

Compact QE Fixtured Offset

An ergonomic grip, compact design and high-speed application make the QE Fixtured Offset nutrunners perfect for any of your fastening needs. Featuring a torque range from 0.3 Nm to 400 Nm and easy mounting capabilities.

  • Item No :

    Compact QE Fixtured Offset
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days

An ergonomic grip, compact design and high-speed application make the QE Fixtured Offset nutrunners perfect for any of your fastening needs. Featuring a torque range from 0.3 Nm to 400 Nm and easy mounting capabilities.

Features

Accuracy:



The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control and Angle strategies.

Efficient:



Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE2 Series allows you to work efficiently with minimum distraction.

Reliable:



The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure youll always know when its in need of a tune up.

Versatile:



With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.



Model Torque Range (Nm) Torque Range (in-lbs) Torque Range (ft-lbs) Max Torque (Nm) Actuation Configuration Free Speed (rpm) Spindle Length (mm) Float (mm) Overall Length (mm) Length (in) Weight (kg) Weight (lbs) Drive (size/style)
QE6ZC020P42S06 4.0 - 16.0 35.4 - 141.61 3.0 - 11.8 20 Controller Remote Start Offset 1840 180 50 664 26.141732283464567 2.5 5.51 3/8 in. square
QE6ZC020P52S06 4.0 - 16.0 35.4 - 141.61 3.0 - 11.8 20 Controller Remote Start Offset 1840 180 50 647.3 25.484251968503937 2.5 5.51 3/8 in. square
QE6ZC028P52S06 5.6 - 22.4 49.6 - 198.3 4.1 - 16.5 28 Controller Remote Start Offset 1360 180 50 647.3 25.484251968503937 2.5 5.51 3/8 in. square
QE6ZC033P52S06 6.6 - 26.4 58.4 - 233.7 4.9 - 19.5 33 Controller Remote Start Offset 1130 180 50 647.3 25.484251968503937 2.5 5.51 3/8 in. square
QE6ZC050P52S06 10.0 - 40.0 88.5 - 354.0 7.4 - 29.5 50 Controller Remote Start Offset 760 180 50 647.3 25.484251968503937 2.5 5.51 3/8 in. square
QE8ZC055F52S06 11.0 - 44.0 97.4 - 389.4 8.1 - 32.5 55 Controller Remote Start Offset 1470 180 50 722.6 28.448818897637796 3 6.61 3/8 in. square
QE8ZC070F62S08 14.0 - 56.0 123.9 - 495.6 10.3 - 41.3 70 Controller Remote Start Offset 1160 193 50 786.4 30.960629921259844 3 6.61 1/2 in. Square
QE8ZC090F62S08 18.0 - 72.0 159.3-637.3 13.3 - 53.1 90 Controller Remote Start Offset 900 193 50 786.4 30.960629921259844 4 8.82 1/2 in. Square
QE8ZC150F62S08 30.0 - 120.0 265.5-1062.1 22.1 - 88.5 150 Controller Remote Start Offset 500 193 50 786.4 30.960629921259844 4 8.82 1/2 in. Square
