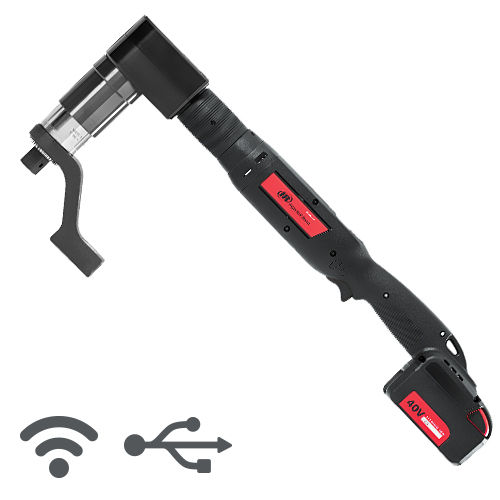

Cordless Torque Multipliers | QX Series™ QX Series™ Cordless Angle Torque Multiplier

The innovative QX Series™ Cordless Angle Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar™ gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity.

· Closed-loop transducer delivers a torque accuracy of +/- 5%

· Enhanced quantitative feedback – displaying the actual measured torque or angle result

· Integrated gearbox provides premium quality and accuracy

· Brushless Motor offers maximum durability

· Intuitive qualitative feedback using Green, Red, and Yellow indicators

· 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options

· Standard or custom reaction arms available to match your application needs

· Optional wireless communication for process control with I/O and data collections (USB connection standard)

· 1,200 cycles of onboard tightening data storage

· Multiple Programming Methods
1. Wirelessly Through INSIGHTqcx Controller
2. Through USB with INSIGHTqcx Controller, Insight Connect Andriod App and ICS Software
3. Through On Board Tool Display/ Key

MODEL Item Ft-lbs (Nm) RPM Weight lbs (kg) Length in (mm) Width in (mm) Drive Size Voltage ommunication

QXX5A45T0180PS12 Bare Tool 27 - 132 (16 - 180) 110 11.4 (4.25) 10.4 (264) 3 (76.2) 3/4" 40V Wireless Enabled

QXX5A45T0270PS12 Bare Tool 40 - 200 (54 - 270) 77 11.4 (4.25) 10.4 (264) 3 (76.2) 3/4" 40V Wireless Enabled

QXX2A52T0396PS12 Bare Tool 59 - 291 (79 - 395) 21 9.5 (3.54) 8.5 (216) 3 (76.2) 3/4" 20V Wireless Enabled

QXX2A52T0594PS12 Bare Tool 88 - 438 (119 - 594) 14 10.9 (4.06) 8.5 (216) 3 (76.2) 3/4" 20V Wireless Enabled

QXX5A52T0880PS12 Bare Tool 130 - 650 (180 - 880) 23 12.3 (4.60) 10.4 (264) 3 (76.2) 3/4" 40V Wireless Enabled

QXX5A72T1080PS16 Bare Tool 160 - 797 (216 - 1080) 19 16 (5.97) 10.4 (264) 3 (76.2) 1" 40V Wireless Enabled

QXX5A72T1620PS16 Bare Tool 239 - 1195 (324 - 1620) 13 16 (5.97) 10.4 (264) 3 (76.2) 1" 40V Wireless
