Ingersoll Rand

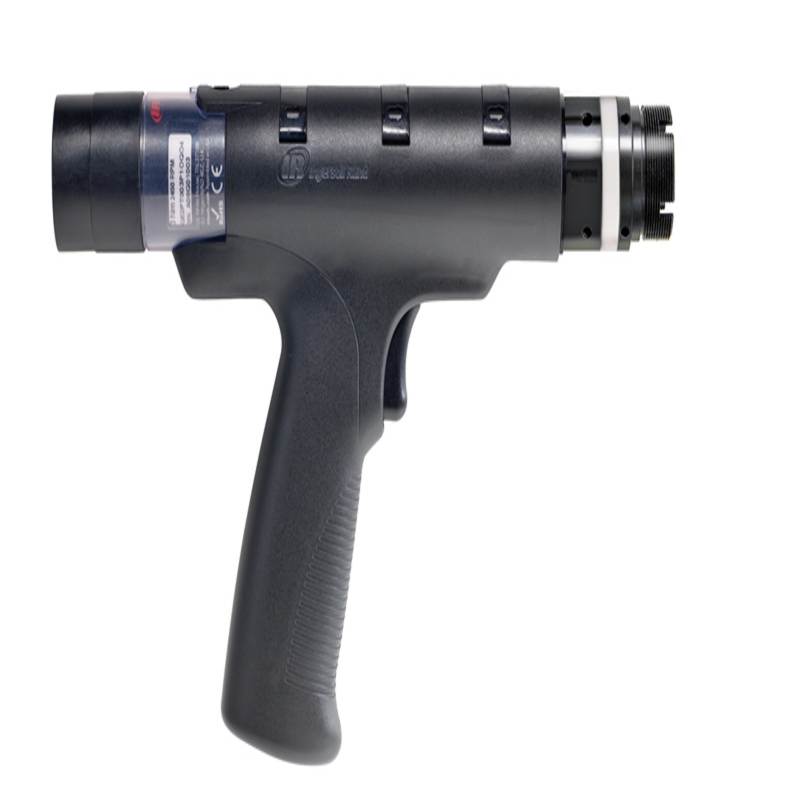

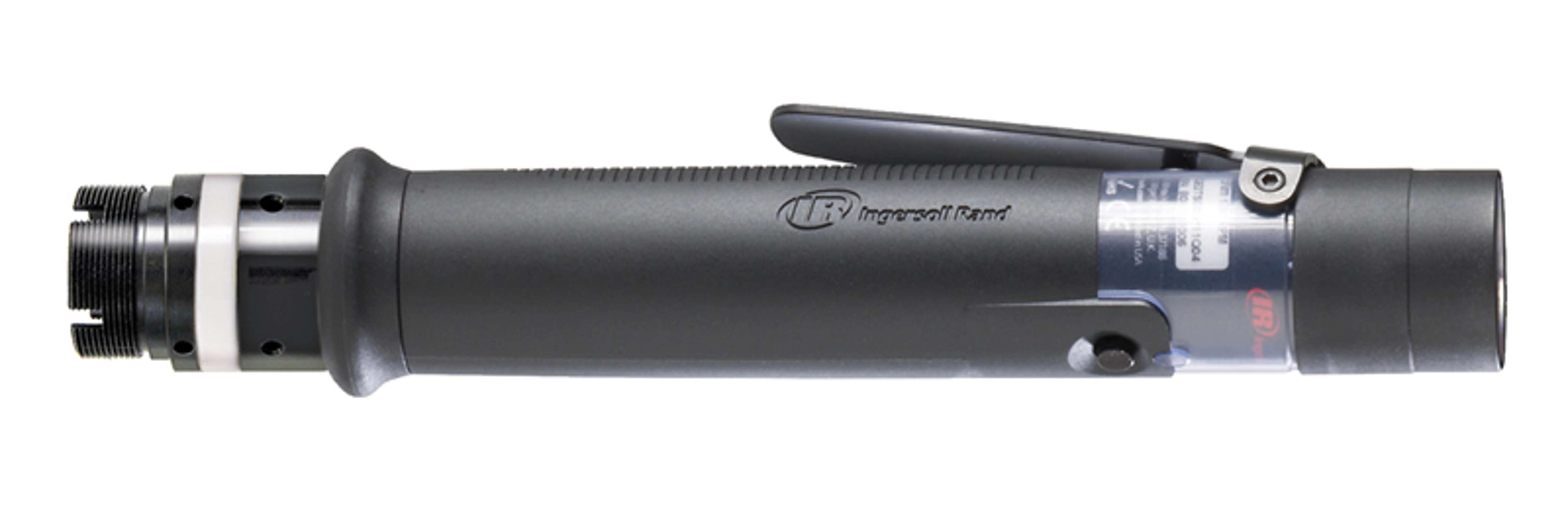

high-speed QE2 Motors

These compact, lightweight, high-speed motors can run up to 3,000 rpms, with a torque range of 0.3 Nm to 400 Nm. Excellent for any tightening job.

Item No :
high-speed QE2 Motors
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

These compact, lightweight, high-speed motors can run up to 3,000 rpms, with a torque range of 0.3 Nm to 400 Nm. Excellent for any tightening job.

Features

Accurate:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.

Made For You:

The QE2 Motors were designed with user experience in mind. Equipped with LED headlights, TactAlert, and multiple light configurations, working on projects has never been easier.

Highly Configurable:

The versatility of this series allows you to customize output torque, body style, actuation and spindle type for each use.

Trustworthy:

Ingersoll Rand creates tools you can rely on, and this series’ non-contacting switches, heavy duty gear train and brushless DC motor are featured for this express purpose.

Safety:

ESD-Safe & RoHS compliant.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE2PP002PM0	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger + Push-to-Start	Pistol	3000	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PP003PM0	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger + Push-to-Start	Pistol	2450	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PP005PM0	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger + Push-to-Start	Pistol	1700	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PP007PM0	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Trigger + Push-to-Start	Pistol	1250	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PP010PM0	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Trigger + Push-to-Start	Pistol	850	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PS002PM0	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Push-to-Start	Pistol	3000	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PS003PM0	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Push-to-Start	Pistol	2450	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PS005PM0	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Push-to-Start	Pistol	1700	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PS007PM0	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Push-to-Start	Pistol	1250	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PS010PM0	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Push-to-Start	Pistol	850	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PT002PM0	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger Start	Pistol	3000	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PT003PM0	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger Start	Pistol	2450	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PT005PM0	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger Start	Pistol	1700	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PT007PM0	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Trigger Start	Pistol	1250	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2PT010PM0	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Trigger Start	Pistol	850	N/A	N/A	248.7	9.791338582677165	0.72	1.59	N/A
QE2SL002PM0	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Lever Start	Inline	3000	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2SL003PM0	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Lever Start	Inline	2450	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2SL005PM0	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Lever Start	Inline	1700	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2SL007PM0	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Lever Start	Inline	1250	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2SL010PM0	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Lever Start	Inline	850	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2SP002PM0	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Lever + Push-to-Start	Inline	3000	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2SP003PM0	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Lever + Push-to-Start	Inline	2450	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2SP005PM0	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Lever + Push-to-Start	Inline	1700	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2SP007PM0	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Lever + Push-to-Start	Inline	1250	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2SP010PM0	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Lever + Push-to-Start	Inline	850	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2TS002PM0	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Push-to-Start	Inline	3000	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2TS003PM0	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Push-to-Start	Inline	2450	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2TS005PM0	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Push-to-Start	Inline	1700	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2TS007PM0	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Push-to-Start	Inline	1250	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
QE2TS010PM0	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Push-to-Start	Inline	850	N/A	N/A	250	9.84251968503937	0.67	1.52	N/A
