Ingersoll Rand

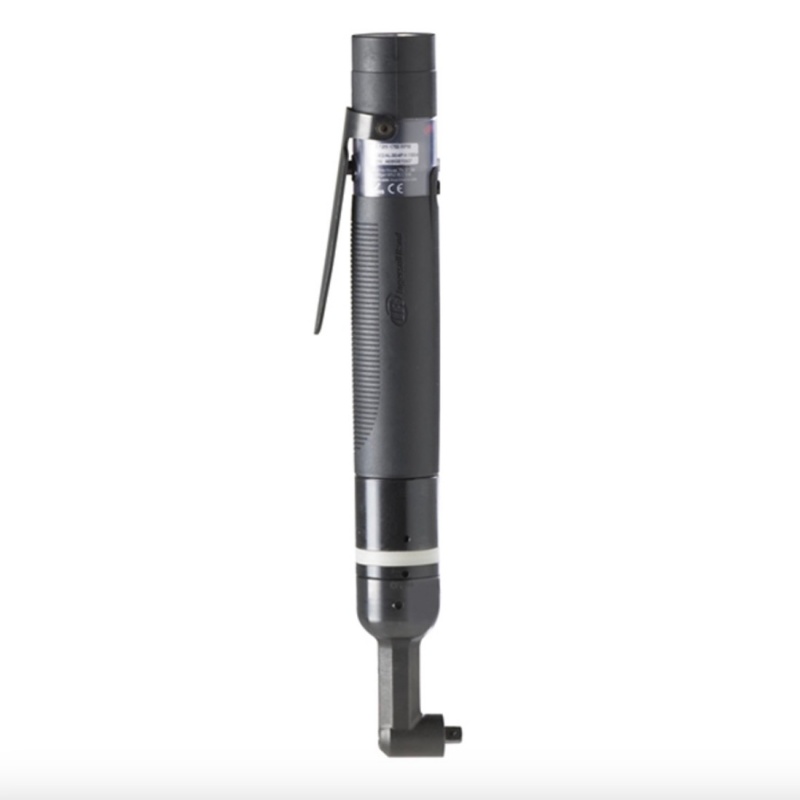

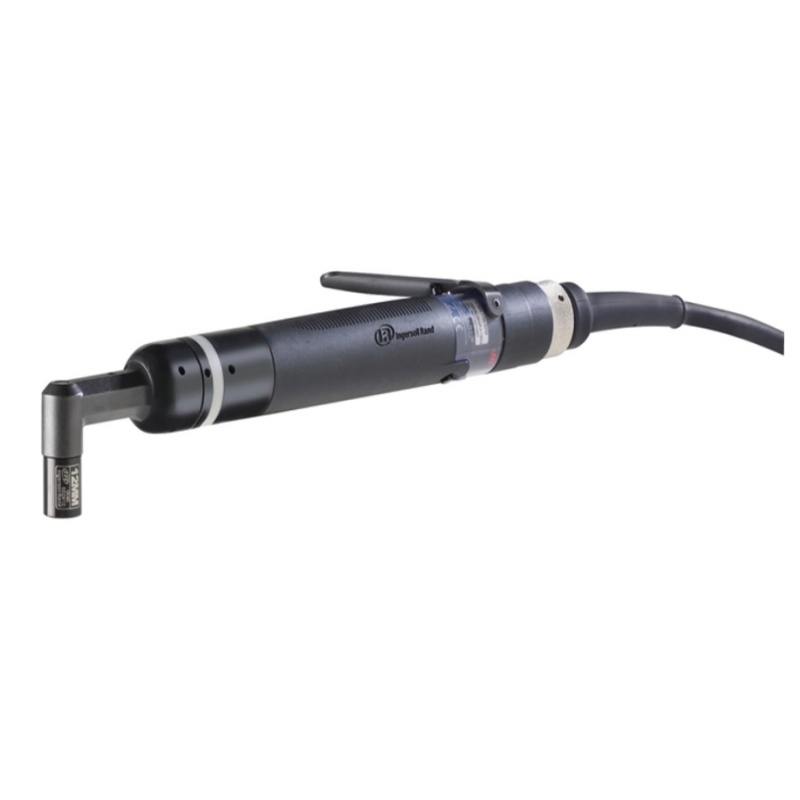

Compact QE2 Angle Series

Compact, lightweight and high-speed, the QE2 Angle Series provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 0.3 Nm to 15 Nm.

Item No :
Compact QE2 Angle Series
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
0.95kg

Inquiry now

Product Details
Model Specifications

Features

Accurate:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.

Versatile:

Customizable to your needs, these tools allow you to change torque output, body style, actuation and spindle type.

Reliable:

With a heavy duty gear train, a brushless DC motor and non-contacting switches, this series is as reliable as it is efficient.

Made To Use:

With numerous features designed to enhance user experience, the QE2 Angle Series allows you to work well with minimal distractions.

Safety:

ESD-Safe & RoHS compliant options available.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE2AL003PA1S04	0.8 - 4	7.1 - 35.4	0.6-3.0	3	Lever Start	Angle	2000	N/A	N/A	312	12.283464566929135	0.83	1.82	1/4 in. Square
QE2AL005PA3H04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Lever Start	Angle	1590	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Hex Detent
QE2AL005PA3Q04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Lever Start	Angle	1590	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Quick Change
QE2AL005PA3S04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Lever Start	Angle	1590	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Square
QE2AL005PA3S06	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Lever Start	Angle	1590	N/A	N/A	318	12.51968503937008	0.95	2.10	3/8 in. Square
QE2AL007PA3H04	1.4 - 7.0	12.4 - 62.0	1.0-5.2	7	Lever Start	Angle	1100	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Hex Detent
QE2AL007PA3Q04	1.4 - 7.0	12.4 - 62.0	1.0-5.2	7	Lever Start	Angle	1100	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Quick Change
QE2AL007PA3S04	1.4 - 7.0	12.4 - 62.0	1.0-5.2	7	Lever Start	Angle	1100	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Square
QE2AL007PA3S06	1.4 - 7.0	12.4 - 62.0	1.0-5.2	7	Lever Start	Angle	1100	N/A	N/A	318	12.51968503937008	0.95	2.10	3/8 in. Square
QE2AL010PA3H04	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Lever Start	Angle	800	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Hex Detent
QE2AL010PA3Q04	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Lever Start	Angle	800	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Quick Change
QE2AL010PA3S04	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Lever Start	Angle	800	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Square
QE2AL010PA3S06	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Lever Start	Angle	800	N/A	N/A	318	12.51968503937008	0.95	2.10	3/8 in. Square
QE2AL015PA3H04	3.0 - 15.0	26.6 - 132.8	2.2-11.1	15	Lever Start	Angle	560	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Hex Detent
QE2AL015PA3Q04	3.0 - 15.0	26.6 - 132.8	2.2-11.1	15	Lever Start	Angle	560	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Quick Change
QE2AL015PA3S04	3.0 - 15.0	26.6 - 132.8	2.2-11.1	15	Lever Start	Angle	560	N/A	N/A	318	12.51968503937008	0.95	2.10	1/4 in. Square
QE2AL015PA3S06	3.0 - 15.0	26.6 - 132.8	2.2-11.1	15	Lever Start	Angle	560	N/A	N/A	318	12.51968503937008	0.95	2.10	3/8 in. Square
