Atlas Copco

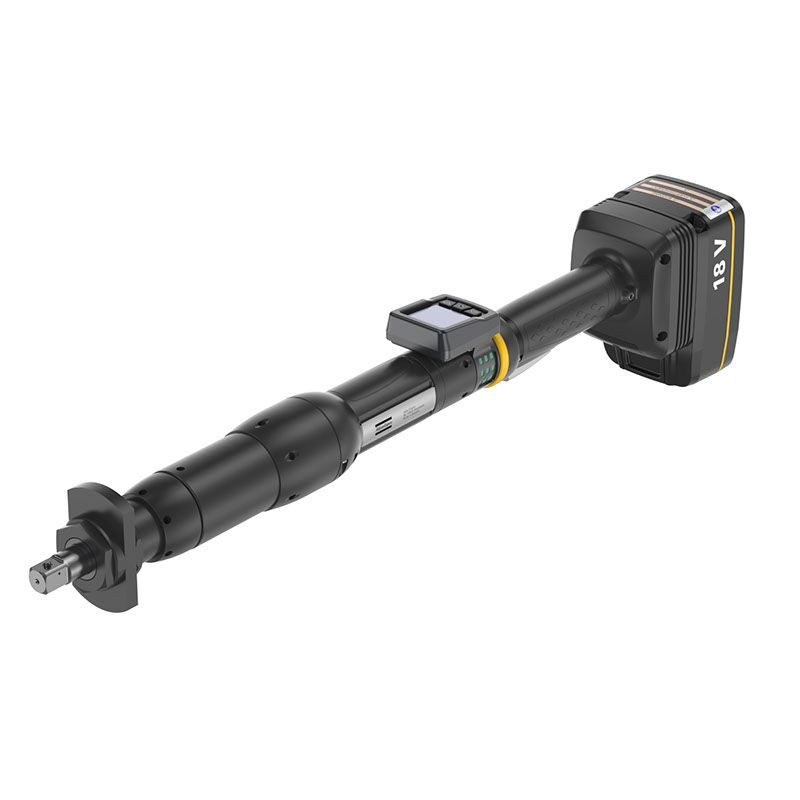

ITB-S61-120-13-HMI Straight Cordless Nutrunner Tensor ITB-S 8436016012

Straight Cordless Nutrunner Tensor ITB-S, with its wide range of models and accessory options brings productivity and assembly quality to the next level. ITB-S offers values including TrueAngle angle compensation, faster tightening speeds and improved wireless signal strength. Tensor ITB-S is part of the Tensor IxB Family which share an integrated controller platform. It has the controller functionality inside the tool, allowing direct integration with station accessories and production system without the need of an intermediate physical controller box. This opens a world of new opportunities.

Item No :
ITB-S61-120-13-HMI Straight Cordless Nutrunner Tensor ITB-S
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
3.55kg

Inquiry now

Product Details
Model Specifications

Features

Integrated controller

TrueAngle- angle compensation with gyroscope

Wide range of tool models and accessories

Rundown booster

Optimized heat dissipation

Dual antennas

Benefits

Increased productivity- cable tool speeds

Improved quality of the joint

Quick installation and easy line rebalancing

Easy to use- no extra training needed

Continuous production and increased uptime

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Height	89.5 mm
CS distance	26.5 mm
Length	529 mm
width	74.5 mm
Output size	1/2"
Weight	6.2 lb
Certifications, standards & directives
Capability class	FK-MFU25
CMIIT ID	2020AJ15158
EAC certified	Yes
EU Standard	EN 300 328 v.2.2.2\|\|EN 301 489-1 v.2.1.1\|\|EN
	EN 300 328 v.2.2.2\|\|EN 301 489-1 v.2.1.1\|\|EN
	55014-1:2017\|\|EN 55014-2:2015\|\|EN 61000-6-
	2:2019\|\|EN 61000-6-3:2007+A1\|\|EN 61000-6-
	4:2007+A1\|\|EN 62841-1:2015\|\|EN 62841-2-2:2014/AC:2015
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/53/EU (RED)\|\|2015/863/EU
	(RoHS amendment)
ETL control number	3008099
ETL listed	Yes
ETL text	6 - 62841-2-2
EU SAR value	0.55 W/kg
FCC ID	XF6-M7DB7
IC ID	8407A-M7DB7
KC certified	Yes
KC ID	R-R-50A-IXB Series
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2017/1206
UK Standard	EN 300 328 V2.2.2\|\|EN 300 440 V2.1.1\|\|EN 301 489-1
	V2.1.1\|\|EN 301 489-17 V3.2.4\|\|EN 301 893 V2.1.1\|\|EN
	50566:2017\|\|EN 55014-1:2017\|\|EN 55014-2:2015\|\|EN
	61000-6-2:2005\|\|EN 61000-6-3:2007+A1\|\|EN 61000-6
	4:2007+A1\|\|EN 62841-1:2015\|\|EN 62841-2-2:2015
WEEE	4 - Large equipment >50cm
Torque
Torque range max	88 ft-lb
Torque range min	26 ft-lb
Torque scatter	≤ 5 %
Design & Functions
Model type	Straight
Output type	Square, Male
Shut-off system	Transducer
Tool family	ITB
Power
Motor power	1500 W
Motor voltage type	dc
Motor voltage	35 V
Battery information
Battery	Li-Io 36 V
Type of battery	1 Li-ion
Weight incl. Battery	7.3 lb
Noise & vibrations
Sound pressure	< 70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	< 2.5 m/s²
Speed
Speed range max	307 r/min
