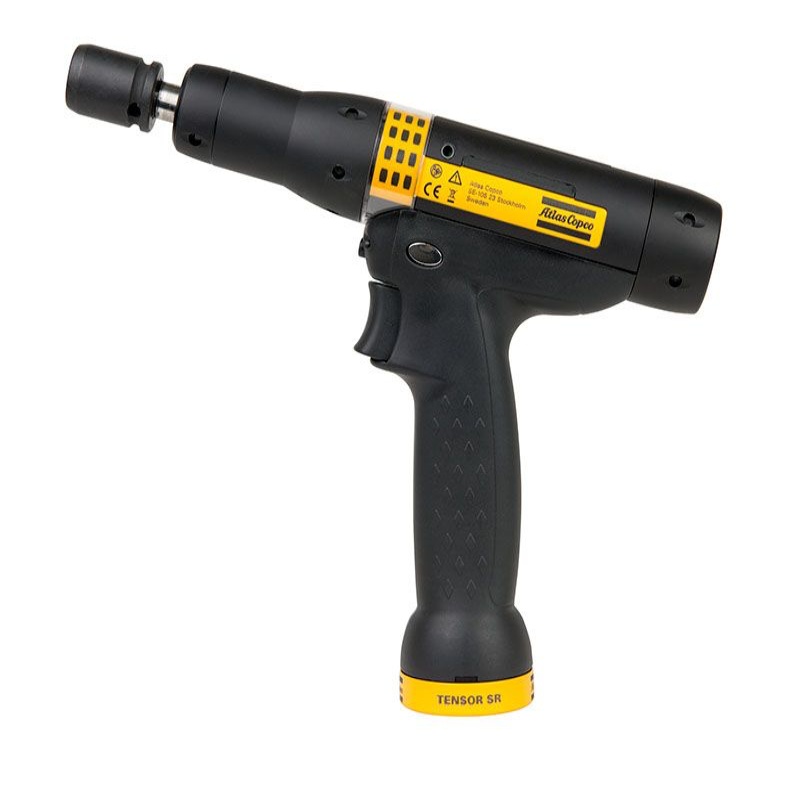

Pistol Cable Nutrunner Tensor SR ETP SR31-25-10

The robust, yet compact, Pistol Cable Nutrunner Tensor SR with built-in torque transducer delivers an unmatched power-to-weight ratio and Industry leading accuracy. The shorter body of Tensor SR is ideal for cramped spaces and allows for better operator ergonomics without sacrificing speed, power or accuracy. In addition, the Tensor SR provides safety-critical accuracy and fully traceable results.

Item No :
Pistol Cable Nutrunner Tensor SR ETP SR31-25-10
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.37kg

Inquiry now

Product Details
Model Specifications

Features

+/-5% over six sigma accuracy

Built-in Transducer and TurboTorque

High free-run speed

Direct and robust gear box

Easy function button configuration

Built-in signal and front lights

ESD certified

Benefits

Full traceability

One-handed operation

Compact and fast

Intuitive operator feedback

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Height	179 mm
Length	210 mm
Overall width	3/8"
Weight	1.8 lb
Certifications, standards & directives
CCC certified	No
CQC certified	No
EAC certified	Yes
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/30/EU (EMC)\|\|2015/863/EU
	(RoHS amendment)
EU Standard	EN 61000-6-2:2019\|\|EN 61000-6-4:2019\|\|EN
	62841-1:2015+AC:2015\|\|EN 62841-2-
	2:2014+AC:2015\|\|EN ISO 12100:2010
KC certified	Yes
KC ID	R-REI-50A-ETPSR31-20-10
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2016/1091
UK Standard	BS EN 62841-1:2015\|\|BS EN 62841-2-
	2:2014\|\|BS EN IEC 61000-6-2:2019\|\|BS EN IEC
	61000-6-4:2019\|\|BS EN ISO 12100:2010
WEEE	5 - Small equipment <50cm
Torque
Torque range max	18.4 ft-lb
Torque range min	3.7 ft-lb
Torque scatter 3s	≤ 5 %
Design & Functions
Model type	Pistol
Output type	Square, Male
SCIP	644e5221-93ba-411d-bf78-1dc70cec5233
Shut-off system	Transducer
Tool family	SR
Power
Motor power	1400 W
Motor voltage type	3 a.c.
Motor voltage	200 V
Noise & vibrations
Additional sound value	85 dB(A)
Additional vibration value	25 m/s²
Sound pressure	< 70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-1
Vibration value	<2.5 m/s²
Speed
Speed range max	2010 r/min
