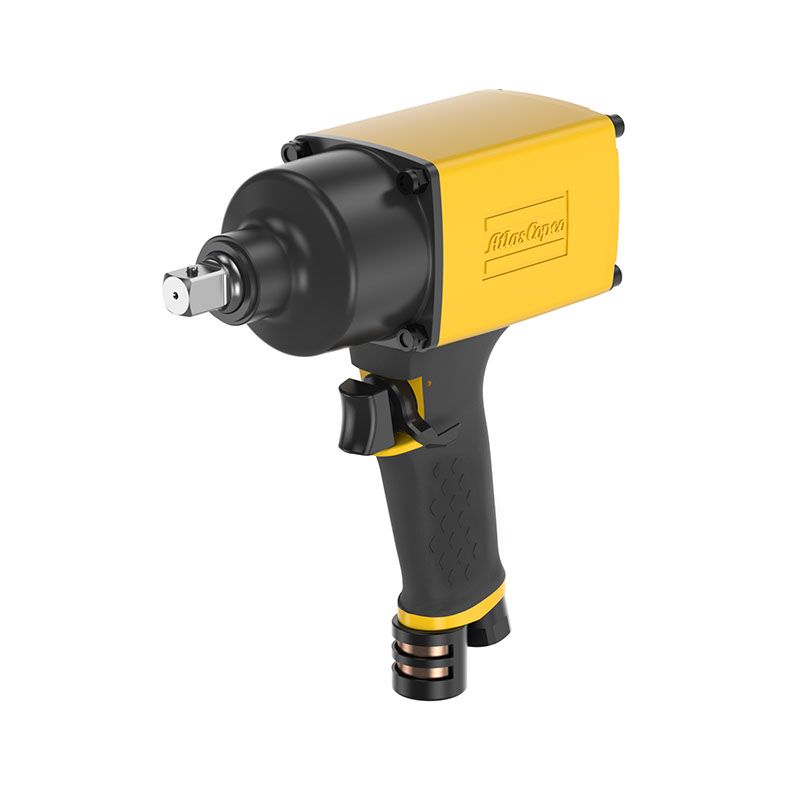

Pistol Impact Wrench LMS38 HR13

Pistol Impact Wrench LMS is designed to provide dependability and a long, trouble-free service life in the toughest conditions. The LMS is a non shut-off impact wrench with extraordinary power to weight qualities and virtually no reaction force during tightening, typically used where fast tightening or disassembly is needed. Its innovative and unique Grease Retaining System ensures maximum tool performance with long service intervals.

Item No :
Pistol Impact Wrench LMS38 HR13
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black and Yellow
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
3.27kg

Inquiry now

Product Details
Model Specifications

Features

High power-to-weight ratio

Powerful impact mechanism

Durable metal housings

Soft start throttle

GRS – Grease Retaining System

Benefits

Extremely fast tightening and loosening

Longer service life

Reduced risk of vibration related injuries

Greater operator comfort

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Air inlet thread	3/8 in
Bolt size max	16 mm
Bolt size min	14 mm
CS distance	29 mm
Length	167 mm
Output size	1/2"
Recommended hose size	10 mm
Square drive size	1/2 in
Weight	5.7 lb
Certifications, standards & directives
EAC certified	Yes
EU Standard	EN ISO 11148-6:2012
EU Legislation	2006/42/EC
UK Regulations	S.I. 2008/1597
UK Standard	EN ISO 11148-6:2012
Torque
Max torque	627 ft-lb
Torque range max	276 ft-lb
Torque range min	29 ft-lb
Design & Functions
Impacts per min	1350 per-min
Model type	Pistol
Output type	Square, Male
Shut-off	No
Noise & vibrations
Sound power	99 dB(A)
Sound pressure	88 dB(A)
Sound standard	ISO15744
Sound uncertainty	3 dB(A)
Vibration standard	ISO28927-2
Vibration uncertainty	1.5 m/s²
Vibration value	3.5 m/s²
Speed
Free speed	8000 r/min
Air information
Air consumption	21 cfm
Max working pressure	100 psi
