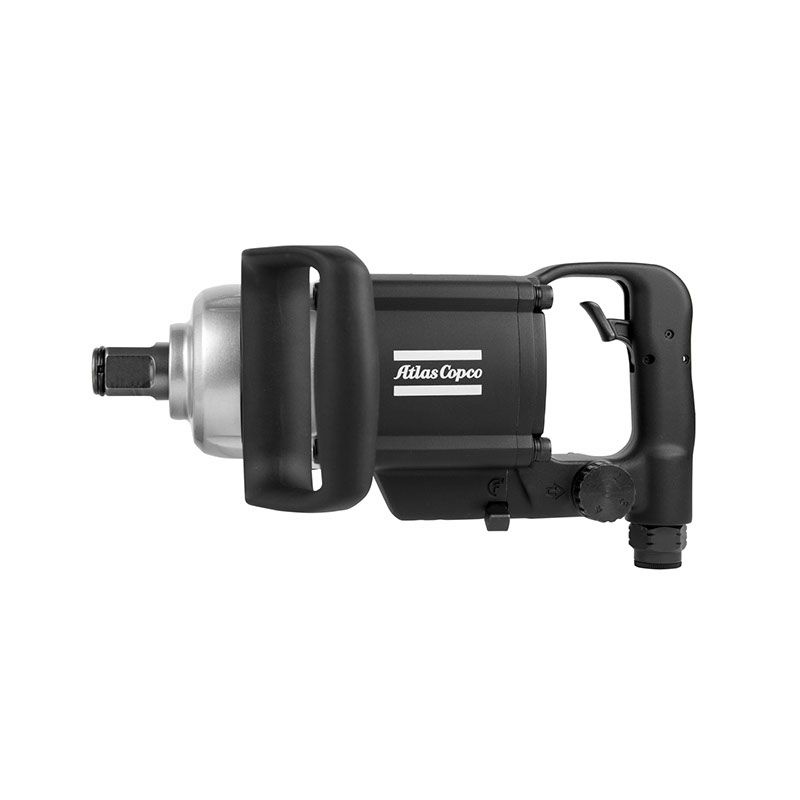

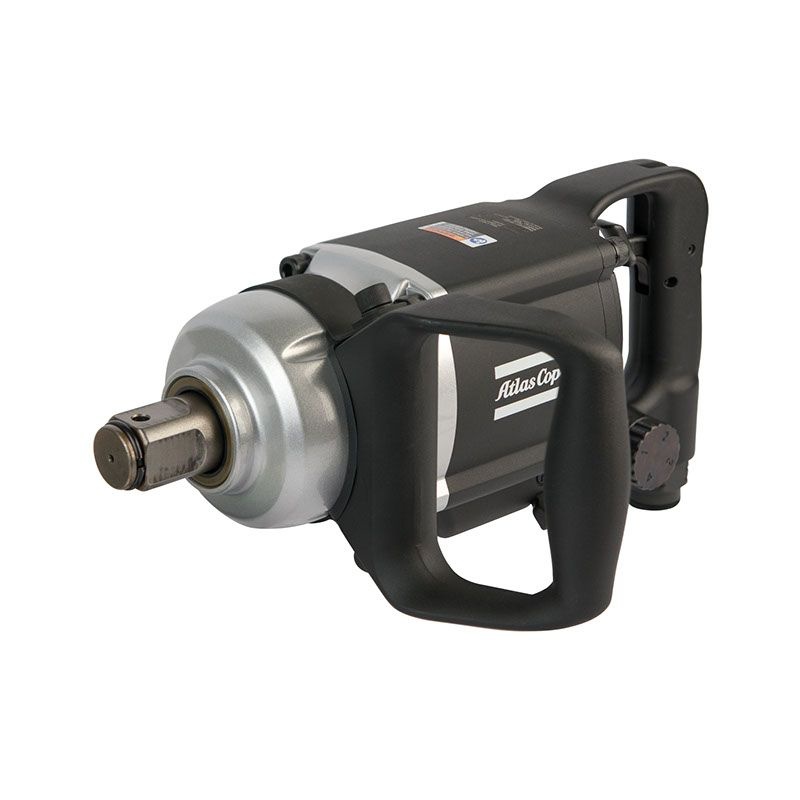

Pneumatic impact wrench (PRO) W2427
Pneumatic impact wrench (PRO) W2427

Pneumatic impact wrench (PRO) W2427

These tools features a robust housing and can handle tough environments providing fast rundown and tightening. They have powerful impact mechanisms for fast run down with four torque settings. The W24-series features compact pistol to larger straight models for many different applications.

  • Item No :

    Pneumatic impact wrench (PRO) W2427
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    7.57kg

These tools features a robust housing and can handle tough environments providing fast rundown and tightening. They have powerful impact mechanisms for fast run down with four torque settings. The W24-series features compact pistol to larger straight models for many different applications.

Features

Long service intervals

Durable high performance

Fast tightening

Good Operator Ergonomics

Light

Benefits

High power-to-weight ratio

Easy one hand operation

Easy Torque Settings

Ergonomic handle with anti-slip rubber grip

Four pistol grip models

Technical Specifications
Imperial Metric                             Dimension & weight
Dimension & weight
Air inlet thread 1/2 in
Bolt size max                                  33 mm
Bolt size min 0 mm
Length 324 mm
Rec. hose size 19 mm
Square drive size                                1 in
Weight                                       6.67 kg
Certifications, standards & directives
CCC certified No
CQC certified No
EAC certified Yes
EU Standard EN 61000-6-2:2019||EN 61000-6-4:2019||EN
62841-1:2015+AC:2015||EN 62841-2-
2:2014+AC:2015||EN ISO 12100:2010
EU Legislation 2006/42/EC (MD)||2011/65/EU
(RoHS)||2014/53/EU (RED)||2015/863/EU
(RoHS amendment)
KC certified Yes
KC ID R-REI-50A-ETDES21
UK Regulations S.I. 2008/1597||S.I. 2012/3032||S.I. 2016/1091
UK Standard BS EN 62841-1:2015||BS EN 62841-2-
V2.1.1||EN 301 489-17 V3.2.4||EN 301 893 V2.1.1||EN
61000-6-4:2019||BS EN ISO 12100:2010
WEEE 5 - Small equipment <50cm
Torque
Torque range max                                                         1500 Nm
Torque range min                              700 Nm
Max torque 2200 Nm
Design & Functions
PRO                                                                  Yes
Power
Motor power                                                                   1040 W
Motor voltage type                              3 a.c.
Motor voltage                                  200 V
Battery information
Battery                                                                    Li-Io 36 V
Type of battery                                1 Li-ion
Weight incl. Battery                            7.3 lb
Noise & vibrations
Sound power 105 dB(A)
Sound pressure                             94 dB(A)
Sound standard                              ISO15744
Sound uncertainty 3 dB(A)
Vibration standard                          ISO28927-2
Vibration uncertainty 3,17 m/s²
Vibration value                             16,19 m/s²
Speed
Speed range max                            4500 r/min
Design
Clutch type           Twin hammer
