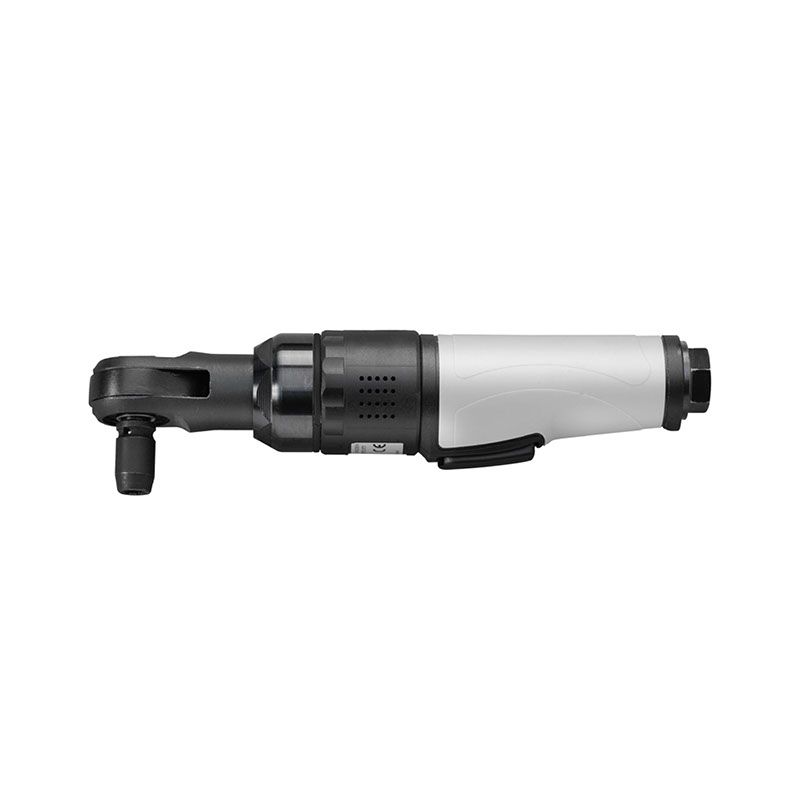

Pneumatic Ratchet (PRO)W2610

Atlas Copco PRO Ratchet Wrench W26 is powerful, reversible and designed for easy access in confined spaces. It is a lightweight tool with composite housings, ideal for automotive repair, heavy equipment maintenance, product assembly, construction projects, or any other application requiring high torque output. The variable, feather-touch trigger puts you in full control and switching from forward to reverse couldn’t be simpler.

Item No :
Pneumatic Ratchet (PRO)W2610
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
738g

Inquiry now

Product Details
Model Specifications

Features

High power-to-weight ratio

Robust composite housing

Rubber grip on handle

Easy to switch between forward and reverse

Air exhaust adjustable through 360 degrees

Benefits

Durable

Easy access in confined spaces

Long working lifetime

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Air inlet thread	1/4 in
Bolt size min	8 mm
Length	192 mm
Recommended hose size	10 mm
Square drive size	3/8 in
Weight	0.55 kg
Certifications, standards & directives
EAC certified	Yes
EU Legislation	2006/42/EC (MD)
EU Standard	EN ISO 11148-6:2012
UK Regulations	S.I. 2008/1597
UK Standard	EN ISO 11148-6:2012
Torque
Torque range max	40 Nm
Torque range min	4 Nm
Design & Functions
PRO	Yes
SCIP	5e4a50e1-5174-4ac0-b255-60f5d9358234
Noise & vibrations
Sound power	96 dB(A)
Sound pressure	85 dB(A)
Sound standard	ISO15744
Sound uncertainty	3 dB(A)
Vibration standard	ISO28927-2
Vibration uncertainty	6.8 m/s²
Vibration value	8.8 m/s²
Speed
Free speed	280 r/min
Air information
Air consumption	9 l/s
Max working pressure	91 psi
