Atlas Copco

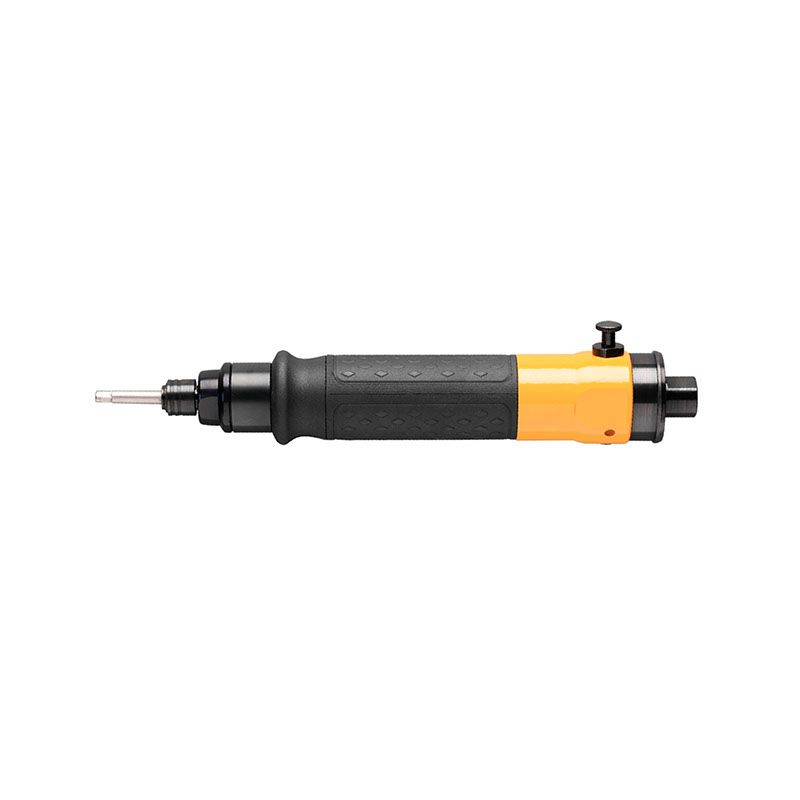

Pneumatic Screwdriver LUM22 PR5-260

The LUM series is the workhorse of our pneumatic screwdriver line-up. Designed to be comfortable to work with all day and to be durable in a tough production environment, they combine the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity. All LUM models are equipped with a spring-operated shut-off clutch, designed by Atlas Copco that is set with a Philips screwdriver – simple, fast and reliable!

Item No :
Pneumatic Screwdriver LUM22 PR5-260
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.17kg

Inquiry now

Product Details
Model Specifications

Features

Superior ergonomics

Spring-operated shut-off clutch

Reversible

Quick change chuck

RE reporting models

Benefits

Great durability and productivity

Increased performance

Compact size for use in limited spaces

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Air inlet thread	1/4 in
CS distance	20 mm
Length	211 mm
Output size	1/4"
Recommended hose size	8 mm
Weight	1.7 lb
Certifications, standards & directives
EAC certified	Yes
EU Standard	ISO 11148-6
EU Legislation	2006/42/EC (MD)
UK Regulations	S.I. 2008/1597
UK Standard	ISO 11148-6
Torque
Torque range max	3.69 ft-lb
Torque range min	0.3 ft-lb
Torque range soft joint max	44.2 in-lb
Torque range soft joint min	3.5 in-lb
Design & Functions
Model type	Straight
Output type	Hexagon, Female
SCIP	d1196d17-abfb-41fd-8563-7e39f8d98348
Shut-off	Shut-off
Start trigger	Push start
Noise & vibrations
Sound pressure	75 dB(A)
Sound standard	ISO15744
Sound uncertainty	3 dB(A)
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Free speed	260 r/min
